Getting Started Connections Settings Playback Remote ControlMulti-zone Information Troubleshooting SpecificationsConnections
ENGLISH

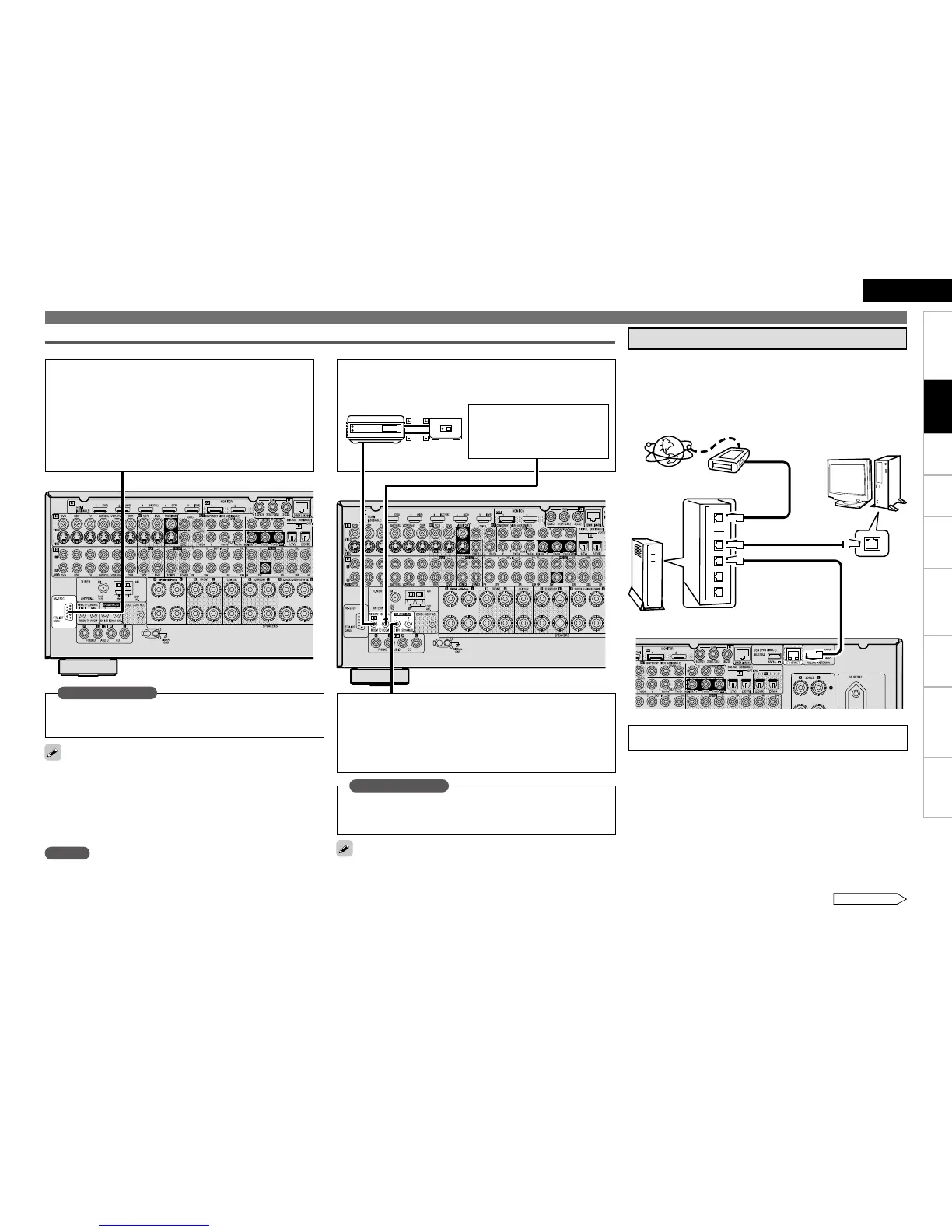

External Controller
RS-232C connector
When you connect an external control device, you can control
the AVR-4810 with the external control device. Perform the
operation below beforehand.
q Turn on the AVR-4810’s power.
w Turn off the AVR-4810’s power from the external
controller.
e Check that the AVR-4810 is in the standby mode.
n
When using the AVR-4810 in combination with the DENON RF remote
controller (RC-7000CI, sold separately) or RF remote receiver (RC-
7001RCI, sold separately), two-way communication is enabled. The
AVR-4810’s status information as well as iPod and Internet audio music
files can be browsed watching the RF Remote Controller’s display. For
details, refer to the operating instructions of the respective devices.
Set this to use the RS-232C connector for the DENON RF remote
controller.
“232C Port” (vpage 55)
Set as Necessary
NOTE
On the GUI menu, when setting “232C Port” to “2Way Remote”, you
cannot use the RS-232C connector as an external controller (vpage
55).
Connecting Devices
REMOTE CONTROL jacksn
When connecting a 2nd device, connect to the TRIGGER OUT 2
terminal in the same way as the TRIGGER OUT 1 terminal.
TRIGGER OUT jacks
The TRIGGER OUT output terminal outputs a maximum 12
V/150 mA electrical signal. When a device with TRIGGER IN
terminal is connected via a monaural mini-plug, the connected
device’s power on/standby can be controlled through linked
operation to the AVR-4810.
n
Set to change the conditions for linked operation via the TRIGGER
OUT 1 or TRIGGER OUT 2 terminal.
“Trigger Out1” or “Trigger Out2” (vpage 54)
Set as Necessary
Extension jack for future use.
(Connect devices corresponding
with room to room function to
this jack.)
Infrared
retransmitter
Input Output
Infrared
sensor
When you connect the AVR-4810 to a home network, you can enjoy
listening to music files stored on your PC, internet radio audio and
other sources. You can also control the AVR-4810 from your PC via
the Web browser.
Internet
Modem
Computer
Router
For connections to the Internet, contact an ISP (Internet
Service Provider) or a computer shop.
To WAN side
LAN port/
Ethernet
connector
To LAN port
To LAN port
[Wired LAN]
Connecting to a Home Network (LAN)
See overleaf
To Next Page
