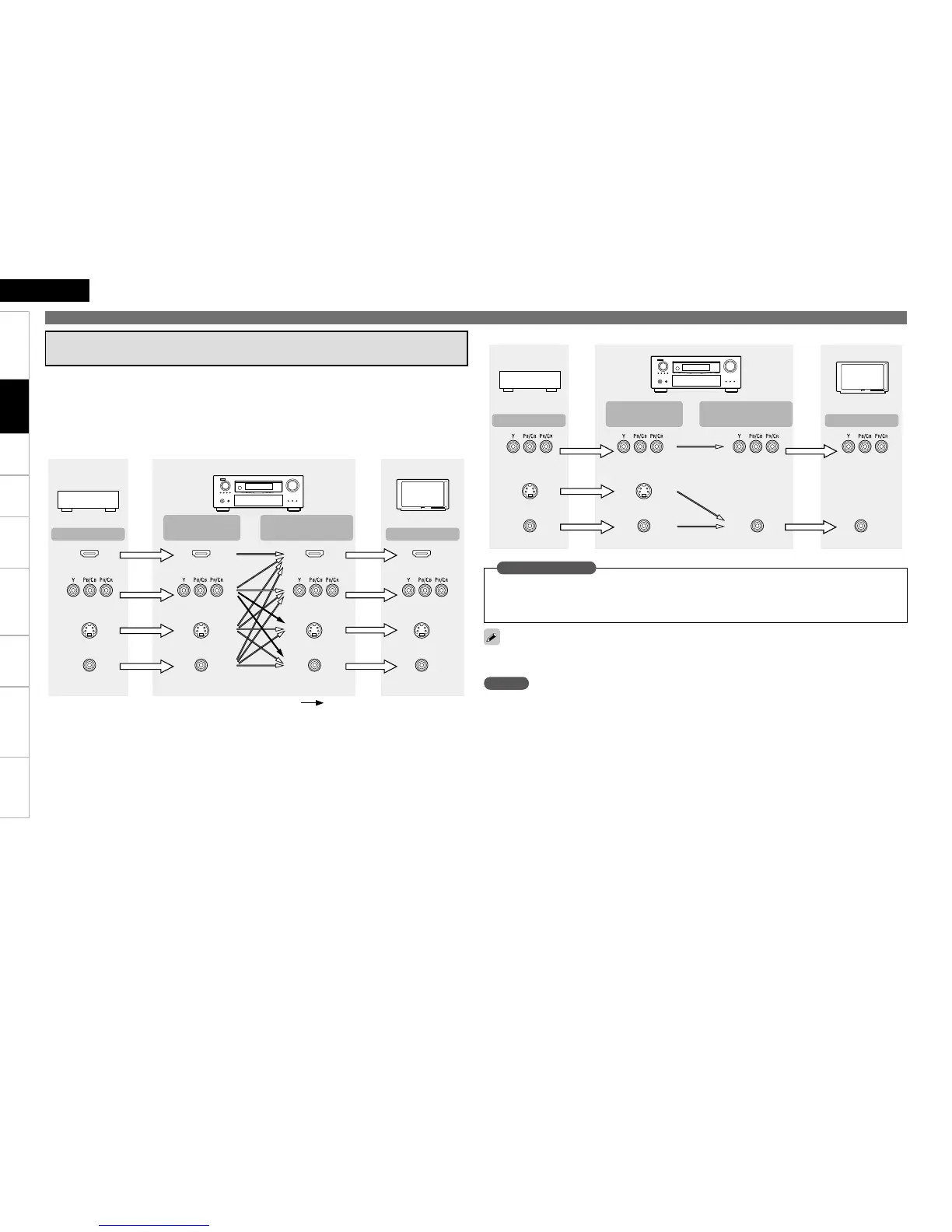

Converting Input Video Signals for Output
(Video Conversion Function)
Resolutions of HDMI-compatible TVs can be checked at “HDMI Information” – “Monitor1” or “Monitor2”
(vpage 87).
NOTE
HDMI signals cannot be converted into analog signals.
When a non-standard video signal from a game machine or some other source is input, the video
conversion function might not operate.
480p/576p/1080i/720p/1080p component video input signals cannot be converted into S-Video or Video
format.
When using the component video output connectors for connection to the ZONE2 monitor, the ZONE2’s
on-screen display is not displayed.
•
•
•
•
Set when not using the video conversion function.
“Video Convert” (vpage 60)
Set when changing the resolution of the video signal.
“Resolution” (vpage 60)
•
•
Set as Necessary
Important Information
The AVR-4810 has 4 different types of video input/output terminal (HDMI, Component video, S-Video,
Video).
Use the terminals according to the devices to be connected.
This function automatically converts various formats of video signals input to the AVR-4810 into the format
used to output the video signals from the AVR-4810 to a monitor. (vpage 119 “Relationship Between
Video Signals and Monitor Output”).
GFlow of video signals for MAIN ZONEH
HDMI connector
Component video
connectors
S-Video connector
Video connector
Monitor
HDMI connector
Component video
connectors
S-Video connector
Video connector
HDMI connector
Component video
connectors
Video connector
HDMI connector
Component video
connectors
Video connector
Video device
AVR-4810
Output
Input
(IN)
Output
(MONITOR OUT)
Input
GFlow of video signals for ZONE2H
S-Video connector
Video connector
Monitor
S-Video connector
Video connector Video connector Video connector
Video device
AVR-4810
Output
Input
(IN)
Output
(MONITOR OUT)
Input
S-Video connector S-Video connector
: When 480i/576i signals are input
Component video
connectors
Component video
connectors
Component video
connectors
Component video
connectors
