DEWESOFT SIRIUS User Manual

SIRIUS®

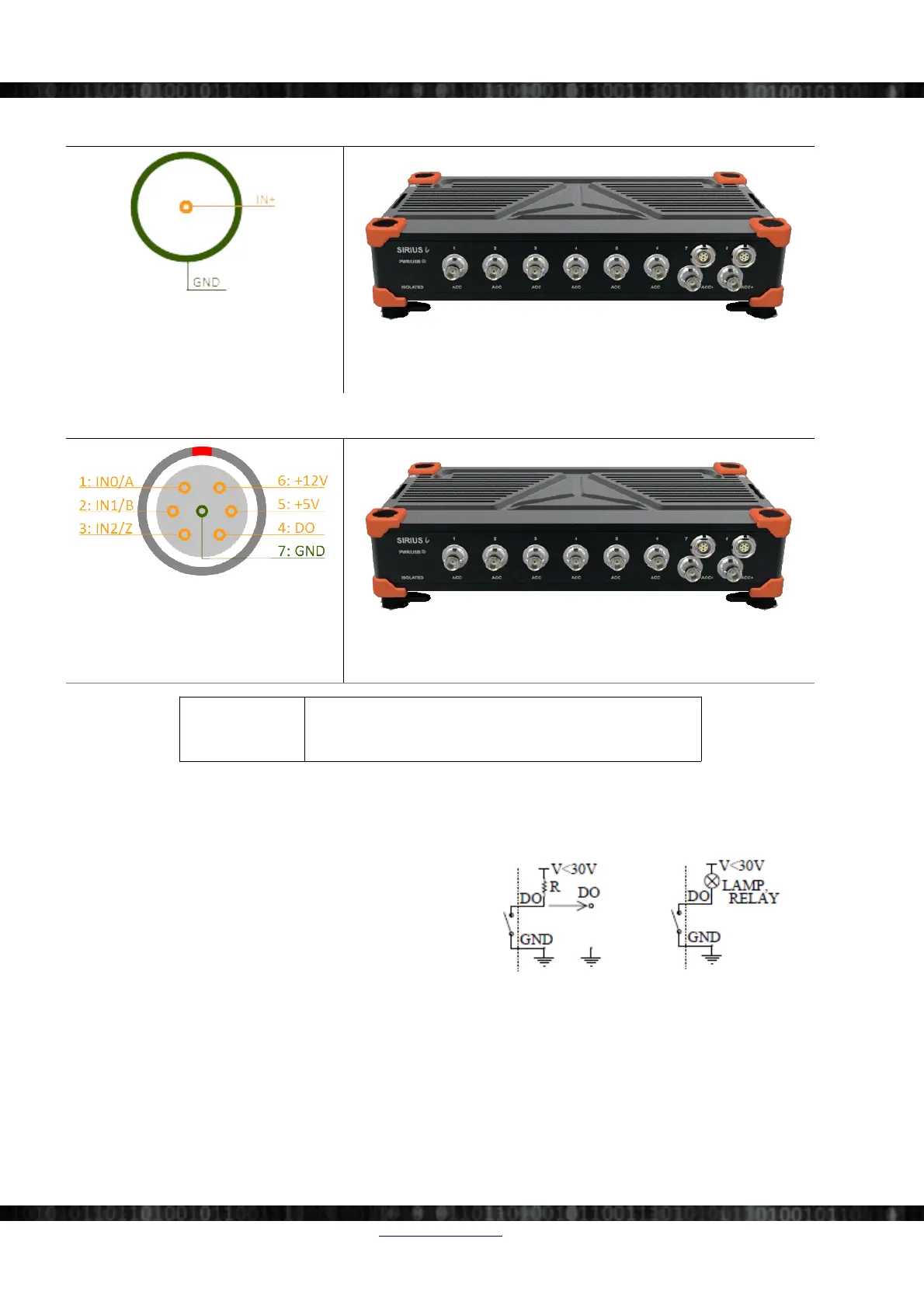

5.18.2 HS-CHG BNC
Illustration 155: SIRIUS-ACC: pin-out
(BNC)
Illustration 156: SIRIUS i 8xHS-CHG-BNC
5.18.3 HS-CHG+ (Counter) L1B7f
Illustration 157: CNT: counter pin-out
(LEMO 7pin)
Illustration 158: SIRIUS i 6xHS-CHG, 2xHS-CHG+
Connector type L1B7f
Connector on the module: EGG.1B.307.CLL
Mating cable connector: FGG.1B.307.CLAD52
Table 29: HS-CHG+ counter connector type
Digital Output Configuration
The “switch” of the open collector output is closed when active.
Page 112/166 www.dewesoft.com Doc-Version: 1.4.2
