DEWESOFT SIRIUS User Manual

SIRIUS®

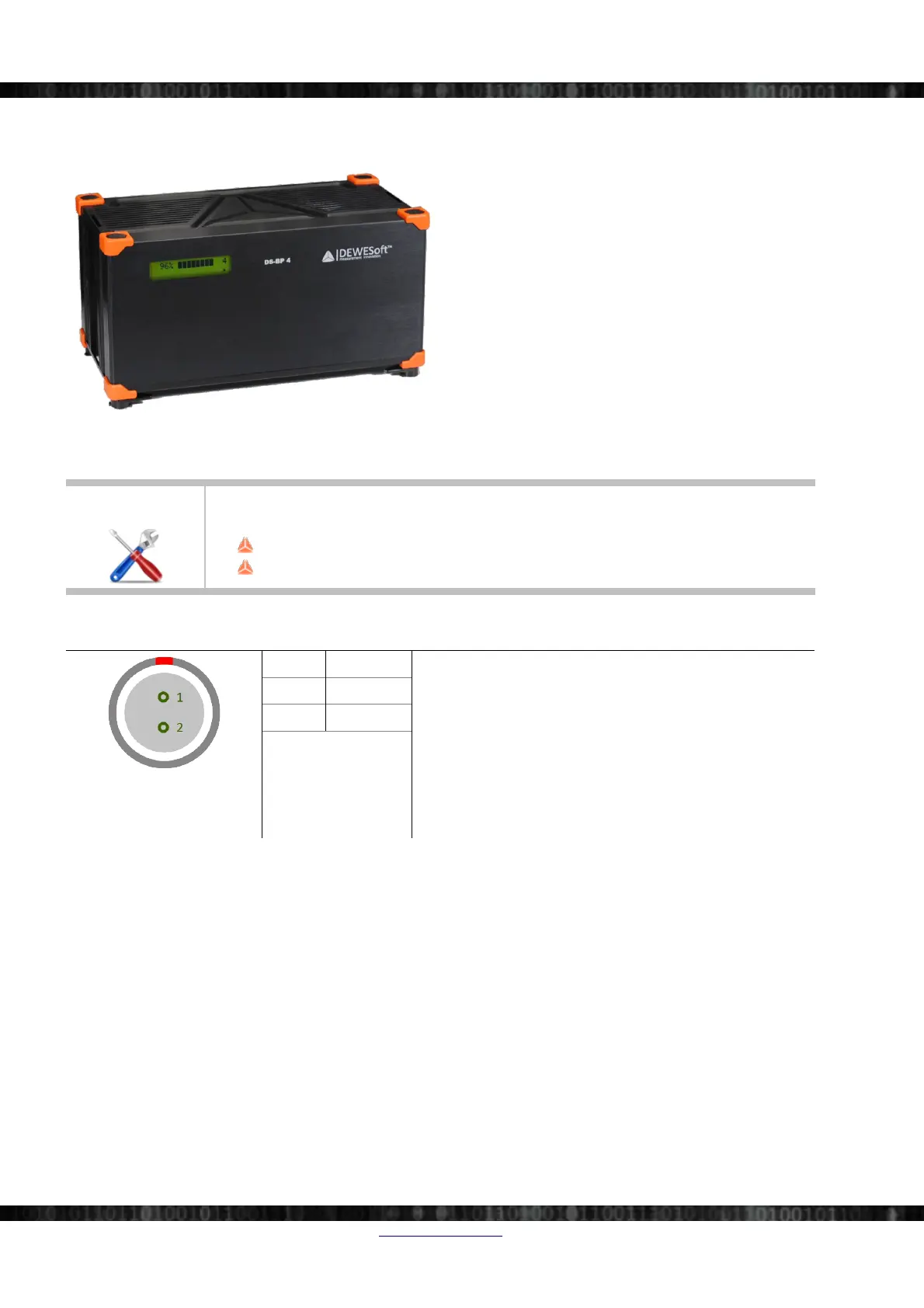

7.2.3 DS-BP4i: Battery Pack
Illustration 195: DS-BP4 i - Battery Pack
The battery pack can be connected to any SIRIUS®
systems via the click-mechanism (see 4.1.1.1 Click
mechanism on page 24).
EXAMPLE 3
The DS-BP4i can power:
a single ACC+ slice for over 24 hours (e.g. when you use it with an external laptop)
an S-BOX and an ACC+ slice for over 4 hours
7.2.3.1 Pin-out (Power Connector)
Illustration 196: DS-BP4 i
Power connector (Input)
Pin Name L2B2f
Power connector (on the S-BOX): ECG.2B.302
Mating connector (for the cable): FGJ.2B.302
1 V+
2 GND
Illustration 197: DS-BP4 i Power connector (Input): pin-out (LEMO)
