DEWESOFT SIRIUS User Manual

SIRIUS® Measurement Modules

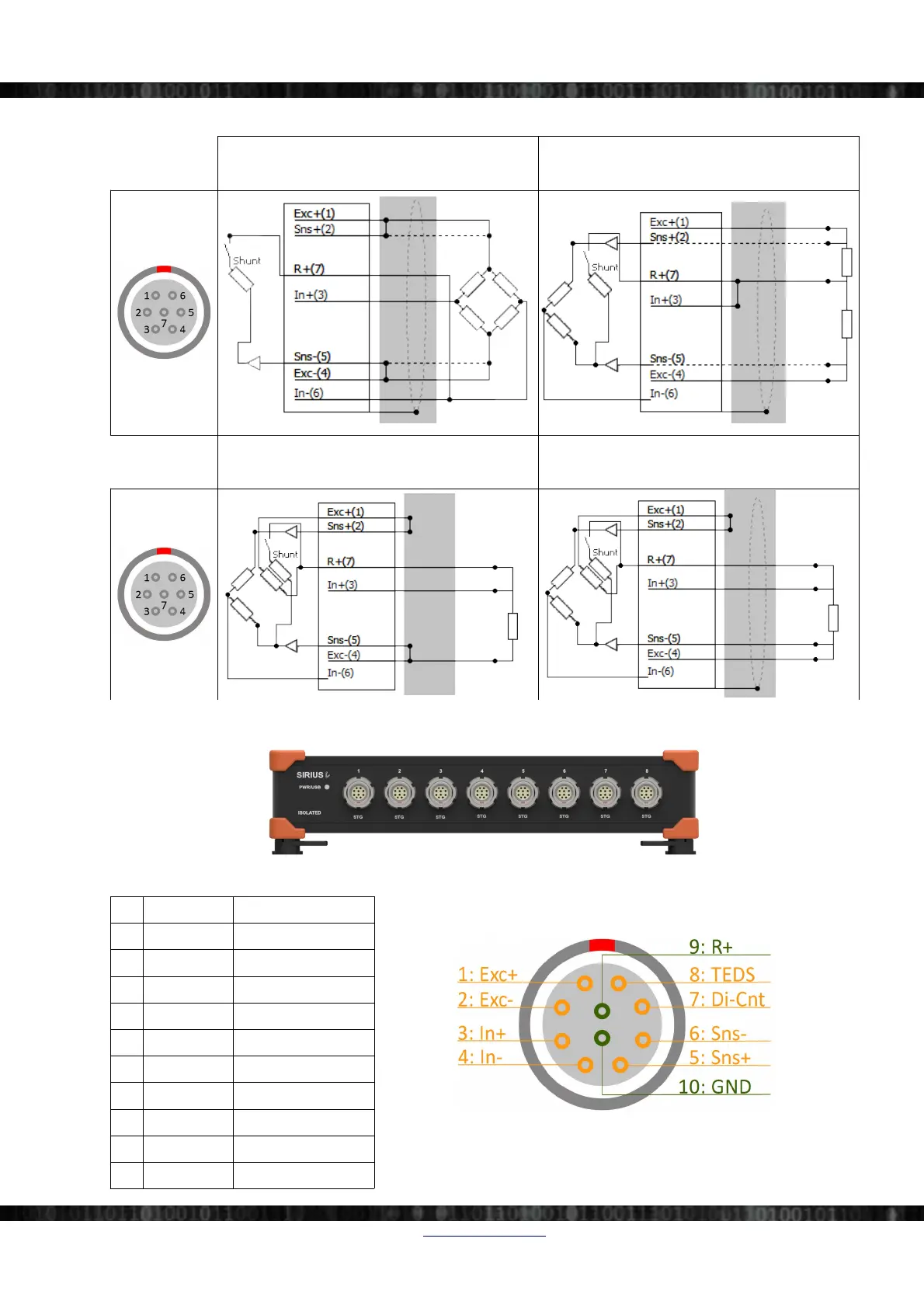

5.13.3.6 STG-L2B7f: Bridge
Full Bridge Half Bridge
Quarter Bridge – 3 wire Quarter Bridge – 4 wire
5.13.4 STG-L2B10f
Illustration 133: STG8 with 10-pin Lemo connectors
Pin Name Description
Illustration 134: SIRIUS-STG: pin-out Lemo 10-pin
1 Exc+ Excitation +
2 Exc- Excitation -
3 In+ Input +
4 In- Input -
5 Sns+ Sense +
6 Sns- Sense -
7 Di-Cnt Digital I/O, Counter
8 TEDS TEDs
9 R+/SHUNT Resistance/SHUNT
10 GND GND-iso
Doc-Version: 1.4.2 www.dewesoft.com Page 91/166
