SIRIUS®

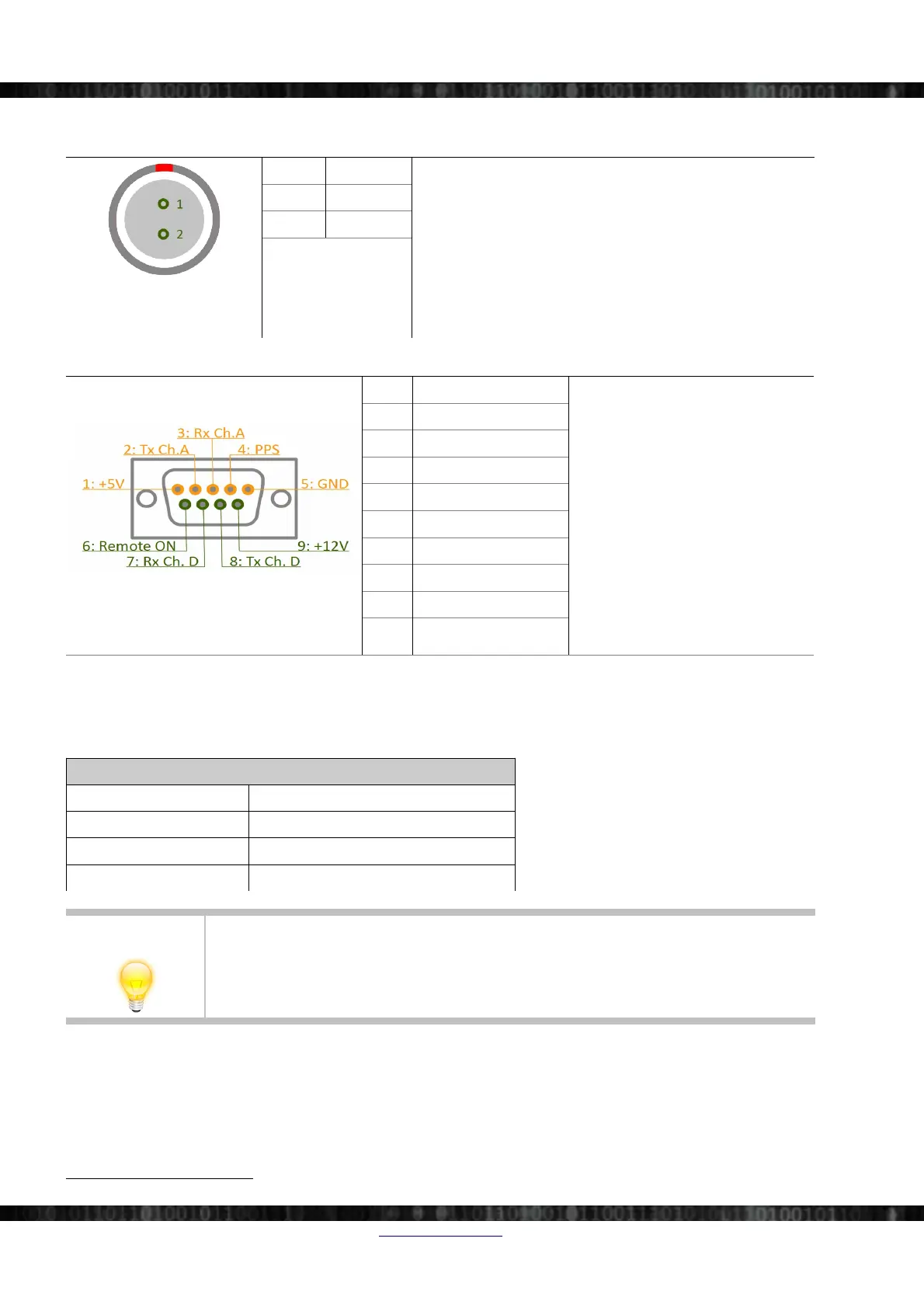

4.4.3.1 Power connector
Illustration 64:
Power Connector 2pin
Pin Name L2B2f
Power connector (on the S-BOX): ECG.2B.302
Mating connector (for the cable): FGJ.2B.302
1 V+
2 GND
4.4.3.2 Option: GPS connector
Illustration 65: GPS Connector
Pin Name
To power the system on, press the
Power switch OR apply a voltage
between 3 and 30V to Remote-On pin
To power off the system press the
Power switch or reduce the voltage
on Remote-On below 0.5V for more
than one second.
GPS port A is used for GPS-Display
or for the RF-modem when RTK
option is in use.
GPS port D is reserved. Do not
connect!
1 +5V (max. 0.5A)
2 TXD GPS port A
3 RXD GPS port A
4 GPS PPS
5 GND
6 Remote-On
4
7 RXD GPS port D
8 TXD GPS port D
9 +12V (max. 0.5A)
4.5 SIRIUS-R2D
The SIRIUS-R2D is a box that can have up to 2 SIRIUS ir/r slices (32 channels).
A Microsoft® Surface 2 Pro which must be mounted in the closable top cover and provides following features:
Technical Specifications
Display 10.6“ Full-HD, Touch screen
Processor Intel® Core™ i5
Operating System Windows® 7 Ultimate Multi-language
USB DEWESoft® X Professional
HINT
The Microsoft® Surface 2 Pro is not included, but can be ordered as an option.
4 Remote-On may not be available for units before Q1/2013
Page 34/166 www.dewesoft.com Doc-Version: 1.4.2
