Enclosure Overview
4.5.1 Frontside
4.5.1.1 USB
The internal USB hub is connected via a USB3 connection to the Surface device.
4.5.1.2 Power connector

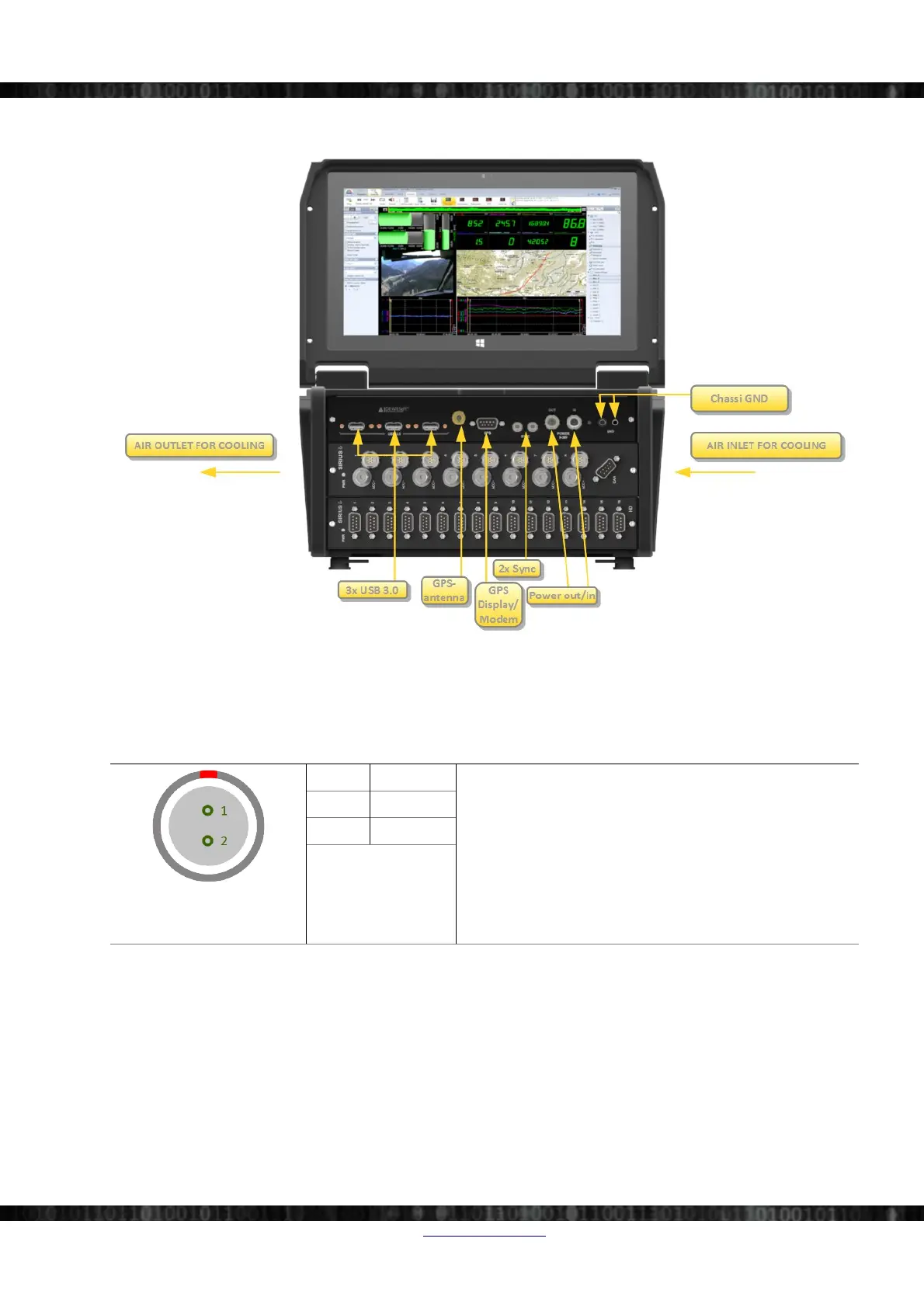

Illustration 66:
Power Connector 2pin
Pin Name L2B2f
Power connector (on the S-BOX): ECG.2B.302
Mating connector (for the cable): FGJ.2B.302
1 V+
2 GND
The supply voltage can be between 9 and 36V.
