13.2.3 AUTOMATIC DYNAMIC AXLE WEIGHING
13.2.3.1 CONFIGURATION
- Set parameter SETUP F.ModE >> totAL >> AXLE W (RIF.MAN.T.) on “dYnAMi”.
If before was setted the MANUAL or STATIC axles weighing, the indicator ask to set the filter of this weighing mode,
press FN/ENTER to confirm.
For a correct functioning one should correctly set the weighing parameters in the F.Mode >> total >> DYN.CFG
menu of the Set-up environment or by a direct function 605, linked to a key. (See the TECHNICAL MANUAL):
1.”Min.Wei” (Minimum weigh of the axle);
2.”n.SMPLS” (Average weight samples);
3.“tiME W” (Interval between cycles);
4.”Skip B.” (Beginning axles to skip);
5.“Skip E.” (Ending axles to skip);
6.”Err.En” (Axle acquisition error enable);
7. “SPEEd” (Speed Limit in Km/h);
8.”Tim.Out” (Axle acquisition time out).
9. “PL.Widt” (Platform width);
13.2.3.2 WEIGHING PROCEDURE
- As soon as the indicator has completely turned on and enters in the weighing status, it waits for the first axle and the

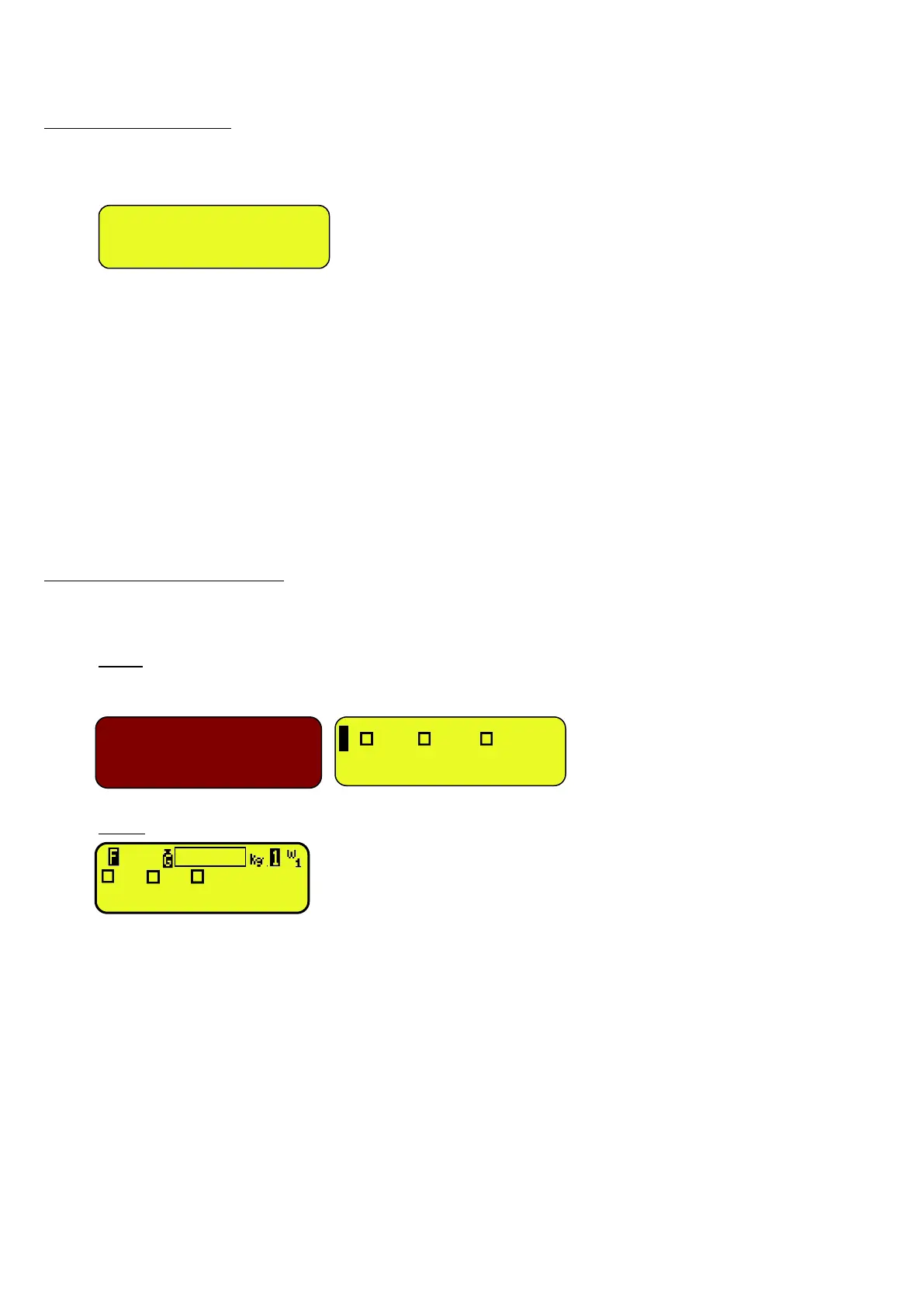

indicator displays:
3590E
LED display LCD display
CPWE
[In which: XXXXXX is the current weight on the scale]
- Select, if requested, the customer / material / vehicle to be linked to the weigh.
- Transit with the first axle of the vehicle on the scale in the limits of speed setted in the DYN.CFG >> SPEED,
avoiding braking while transiting on the scale.
- The axle will be acquired automatically if:
1) The weight is greater than the set minimum weight of the axle setted in <<Min.Wei>> step.
2) The detected weight is within the parameters of the dynamic weigh, which are set in <<DIN.CFG>>,
(TECH.MAN.REF.).
- After the weight of the first axle is acquired, the indicator emits a sound and displays for an instant the following
message:

XXXXXX
CUS MAT VEH
WAIT AXLE 1
1 CUS MAT VEH
WAIT AXLE 1
SET FILTER ?
