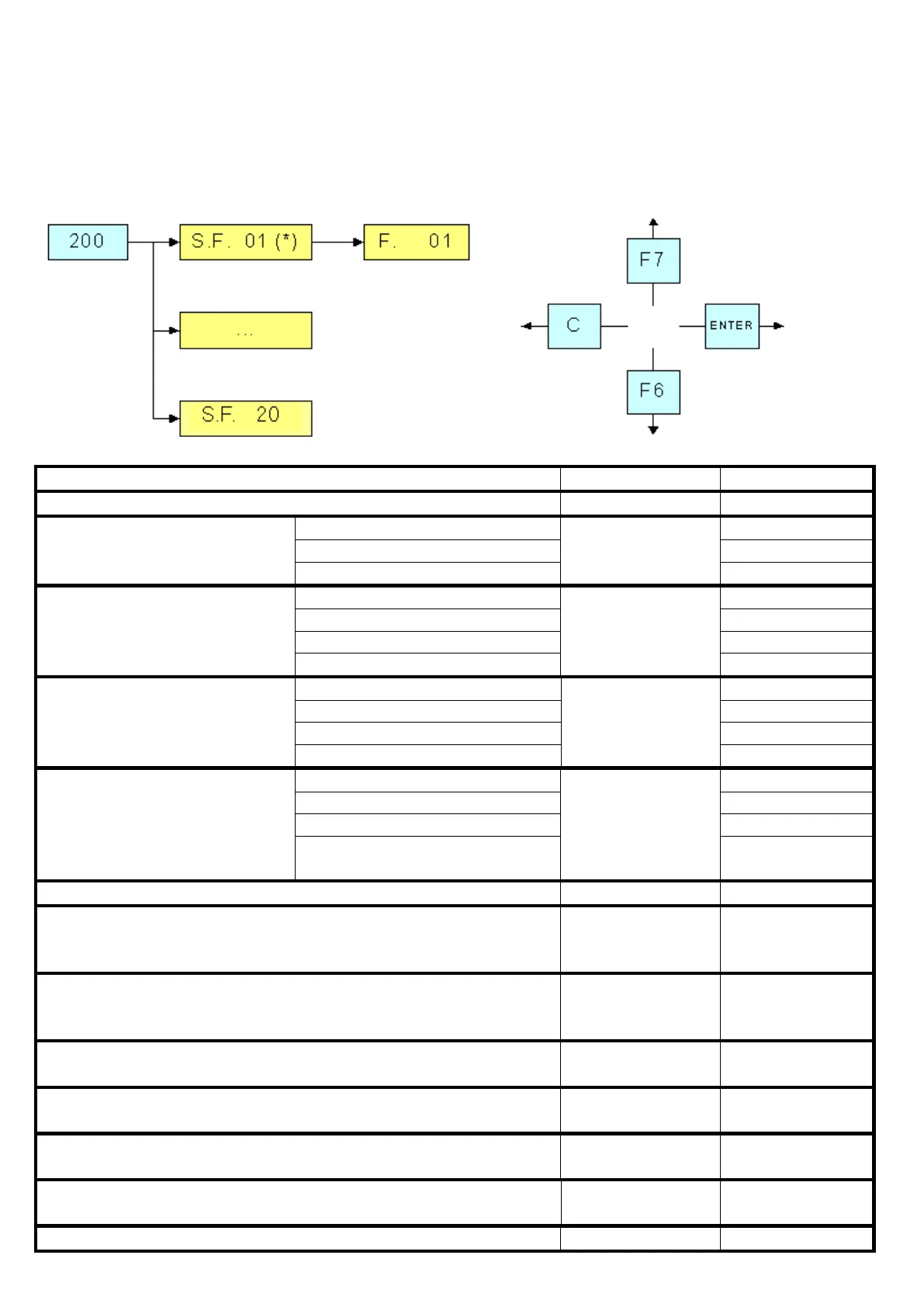

14.1 LINKING OF THE FORMATS TO THE PRINT FUNCTIONS
Through function 200, combinable with the desired key (<< F.KEYS >> step, TECH.MAN.REF.), one accesses the linking of
the print formats (configurable in the SEtuP >> SEriAL >> Prn.FMt step TECH.MAN.REF.) to the 12 programmable print
functions:
Print function Linked format
Print function
Key
Linked step
SIMPLE PRINTOUT
F5
S.F. 01
SIMPLE AXLE
WEIGHING REPORT
(see section 13.2)
TOTALIZATION FIRST AXLE
F6
(input/output
function disabled)
S.F. 12
TOTALIZATION NEXT AXLE
S.F. 13
AXLE TOTAL
S.F. 14
INPUT AXLE
WEIGHING REPORT
(see section 13.3)
TOTALIZATION FIRST AXLE
F6
(input/output
function enabled)
S.F. 12
TOTALIZATION NEXT AXLE
S.F. 13
AXLE TOTAL
S.F. 14
INPUT AXLE WEIGHING END
S.F. 06
OUTPUT AXLE
WEIGHING REPORT
(see section 13.3)
TOTALIZATION FIRST AXLE
F7
(input/output
function enabled)
S.F. 12
TOTALIZATION NEXT AXLE
S.F. 13
AXLE TOTAL
S.F. 14
OUTPUT AXLE WEIGHING END
S.F. 07
REPORT OF THE INPUT/OUTPUT
WEIGHING WITH PRESET TARE
(see section 13.3.6)
TOTALIZATION FIRST AXLE
F6 or F7
with Preset Tare
(input/output
function enabled)
S.F. 12
TOTALIZATION NEXT AXLE
S.F. 13
AXLE TOTAL
S.F. 14
END OF THE IN/OUT AXLE
WEIGHING WITH PRESET TARE
S.F. 05
PARTIAL TOTAL
F8
S.F. 02
GENERAL TOTAL
Function 115 to
combine with the
desired key
S.F. 03
GRAND TOTAL
Function 116 to
combine with the
desired key
S.F. 04
CUSTOMER TOTAL
2nd F
followed by F1
S.F. 08
MATERIAL TOTAL
2nd F
followed by F2
S.F. 09
VEHICLE TOTAL
2nd F
followed by F3
S.F. 10
START-UP PRINTOUT
Automatic entry
at start-up
S.F. 11
CALCULATOR (see section 15.3)
Automatic entry
S.F. 15
