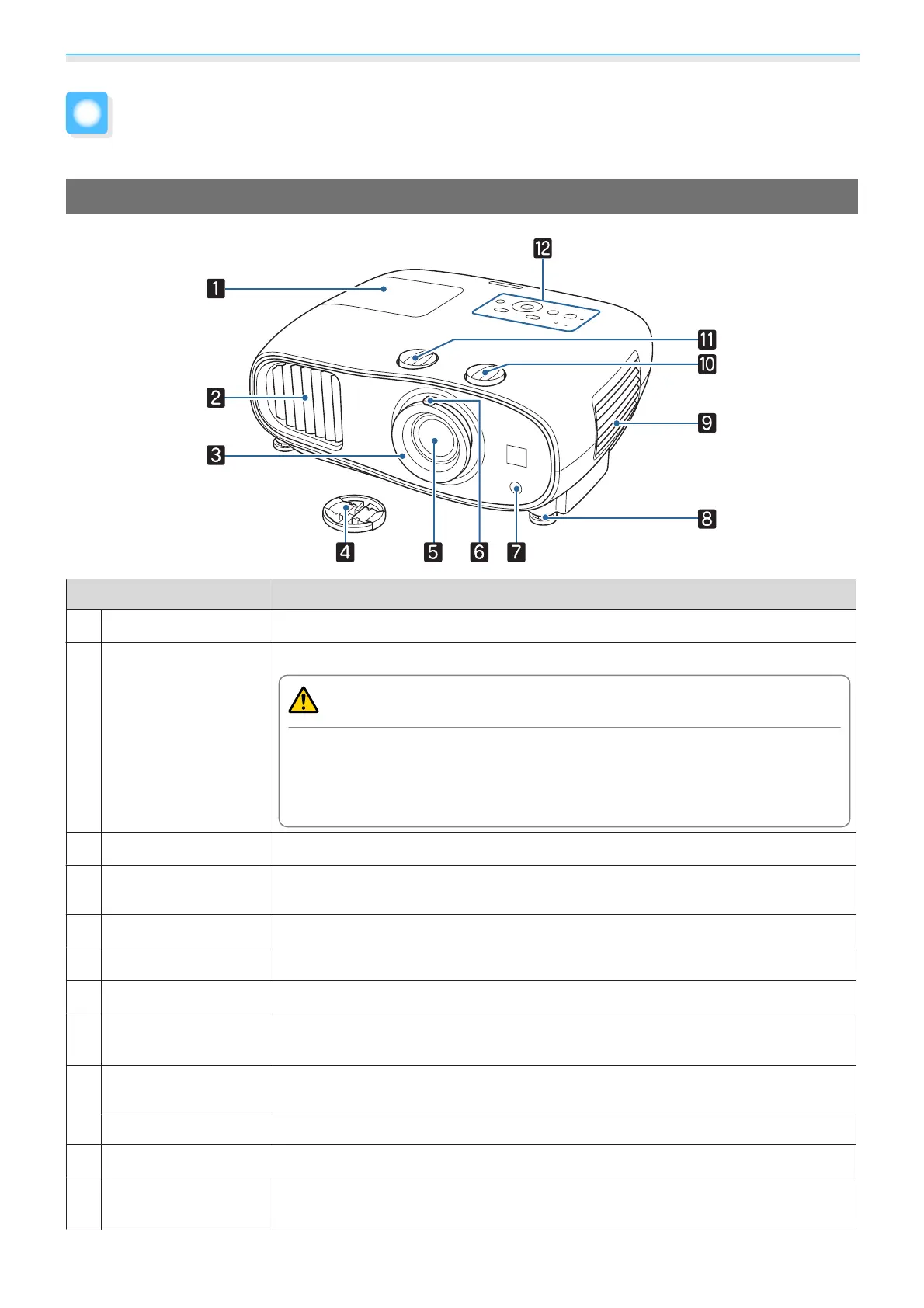

Part Names and Functions
Front/Top
Name Function
a
Lamp cover
Open when replacing the projector's lamp. s p.120
b
Air exhaust vent
Exhaust vent for air used to cool the projector internally.
Caution
While projecting, do not put your face or hands near the air exhaust vent,
and do not place objects that may become warped or damaged by heat near
the vent. Hot air from the air exhaust vent could cause burns, warping, or
accidents to occur.
c
Focus ring
Adjusts the image focus. s p.31
d
Lens cap
Install when not using the projector to protect the lens from being scratched or
soiled.
s p.28
e
Lens
Images are projected from here.
f
Zoom ring
Adjusts the image size. s p.31
g
Remote receiver
Receives signals from the remote control. s p.27
h
Front adjustable
foot
When set up on a surface such as a table, extend the foot to adjust horizontal tilt.
s p.32
i
Air filter cover
When cleaning or replacing the air filter, open this cover and remove the air filter.
s p.116
、
p.119
Air intake vent
Intake vent for air used to cool the projector internally.
j
Vertical lens shift dial
Turn the dial to move the position of the projected image up or down. s p.32
k
Horizontal lens shift
dial
Turn the dial to move the position of the projected image left or right. s p.32
