EH-TW8000/TW9000/TW9000W Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 101 Revision A
3.3.15 Rx Wireless HD / HDMI Cable (EH-TW9000W
only)
1. Remove the Air Filter. (p.64)
2. Remove the Lamp. (p.64)
3. Remove the Rear Case. (p.66)
4. Remove the Front Case. (p.67)
5. Remove the Upper Case. (p.68)
6. Remove the MA Board (assembly). (p.70)
7. Remove the Lens Shutter. (p.77)
8. Remove the Optical Engine (assembly). (p.78)
9. Remove the INT Duct (assembly). (p.87)
10. Remove the five screws ( ), and remove the WiHD Duct.
11. Remove the three screws ( )( ), and remove the WiHD Plate and the Rx
Wireless HD.
12. Remove the following parts from the Rx Wireless HD.
• HDMI Cable
• WiHD Cable
13. Remove the Gasket 10-10-20 from the WiHD Cable.

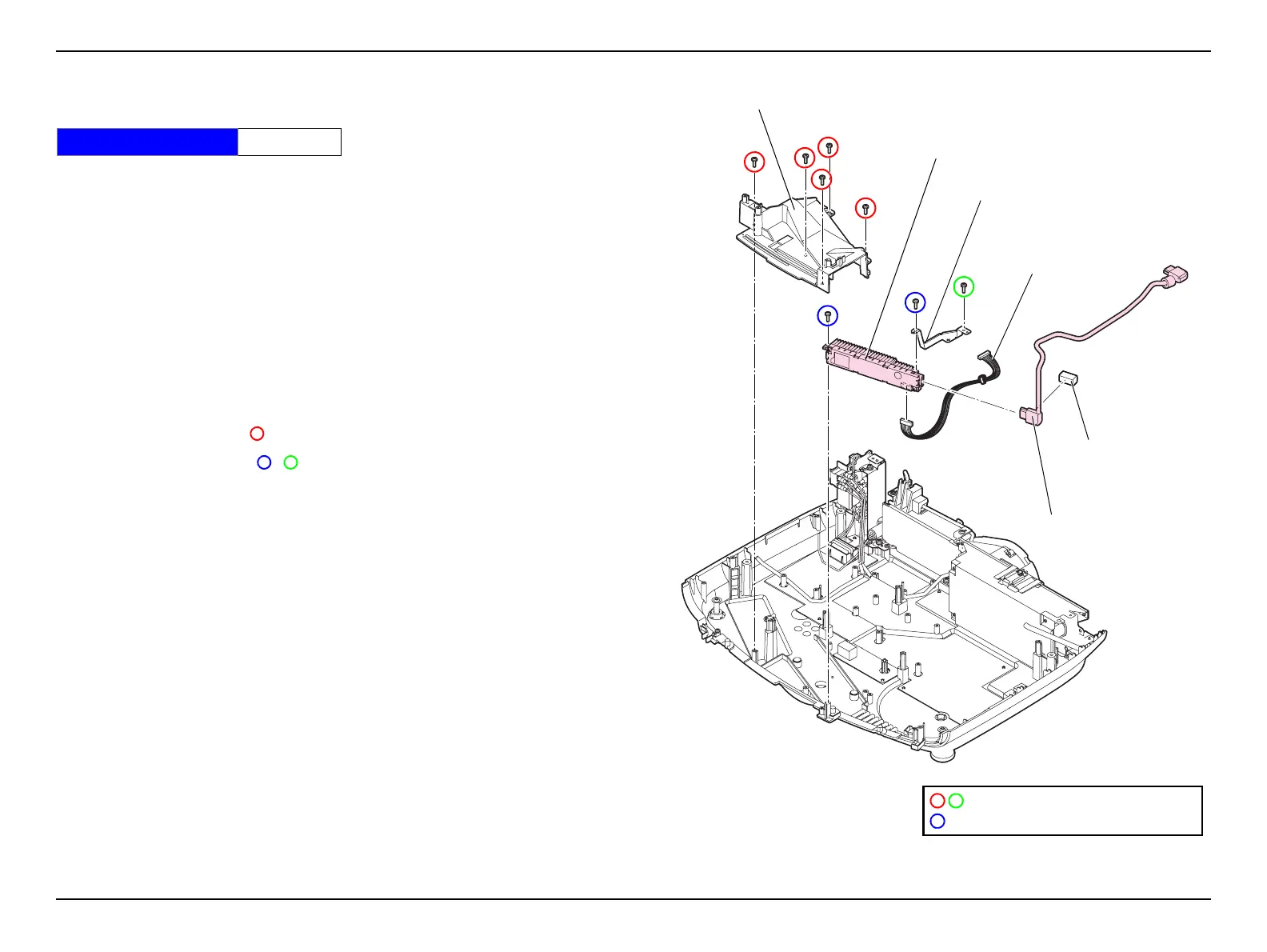

Figure 3-35.
Standard Operation Time 23 Min.
WiHD Duct
Rx Wireless HD
C.B.P-TITE SCREW,3X10,F/ZB-3C
H.S.C.BOLTP-TITE SCREW,3X10,F/NI
WiHD Cable
HDMI Cable
WiHD Plate
Gasket 10-10-20
