Epson EH-TW9000 Service Manual

EH-TW8000/TW9000/TW9000W Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 84 Revision A
3.3.9 Lamp Fan (assembly)
1. Remove the Air Filter. (p.64)
2. Remove the Lamp. (p.64)
3. Remove the Rear Case. (p.66)
4. Remove the Front Case. (p.67)
5. Remove the Upper Case. (p.68)
6. Remove the MA Board (assembly). (p.70)
7. Remove the Lens Shutter. (p.77)
8. Remove the Optical Engine (assembly). (p.78)
9. Remove the three screws ( ), and remove the Lamp Fan (assembly).

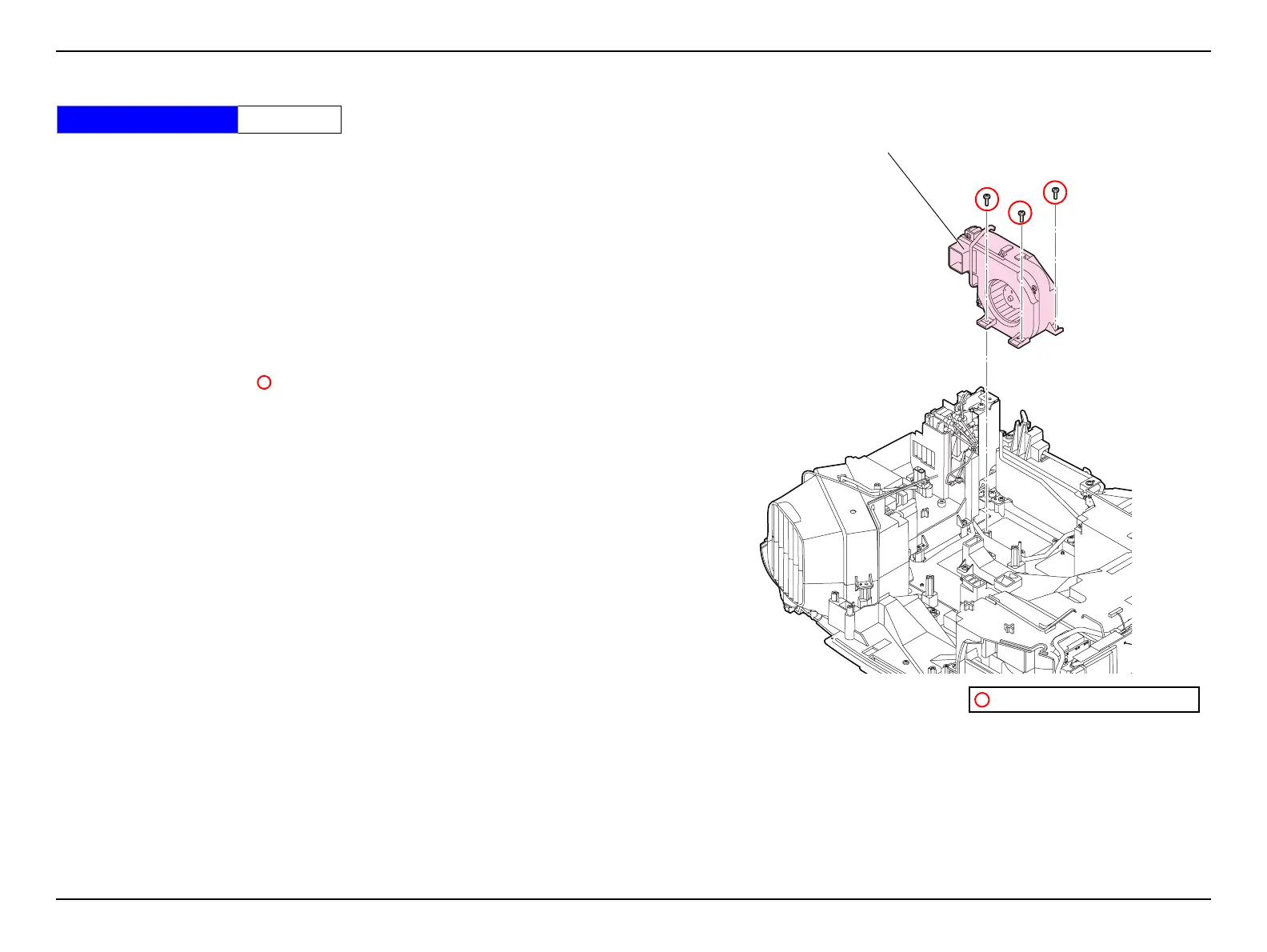

Figure 3-23.
Standard Operation Time 19 Min.
Lamp Fan (assembly)
C.B.P-TITE SCREW,3X10,F/ZB-3C
