EH-TW8000/TW9000/TW9000W Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 87 Revision A
3.3.10 INT Duct (assembly)
1. Remove the Air Filter. (p.64)
2. Remove the Lamp. (p.64)
3. Remove the Rear Case. (p.66)
4. Remove the Front Case. (p.67)
5. Remove the Upper Case. (p.68)
6. Remove the MA Board (assembly). (p.70)
7. Remove the Lens Shutter. (p.77)
8. Remove the Optical Engine (assembly). (p.78)

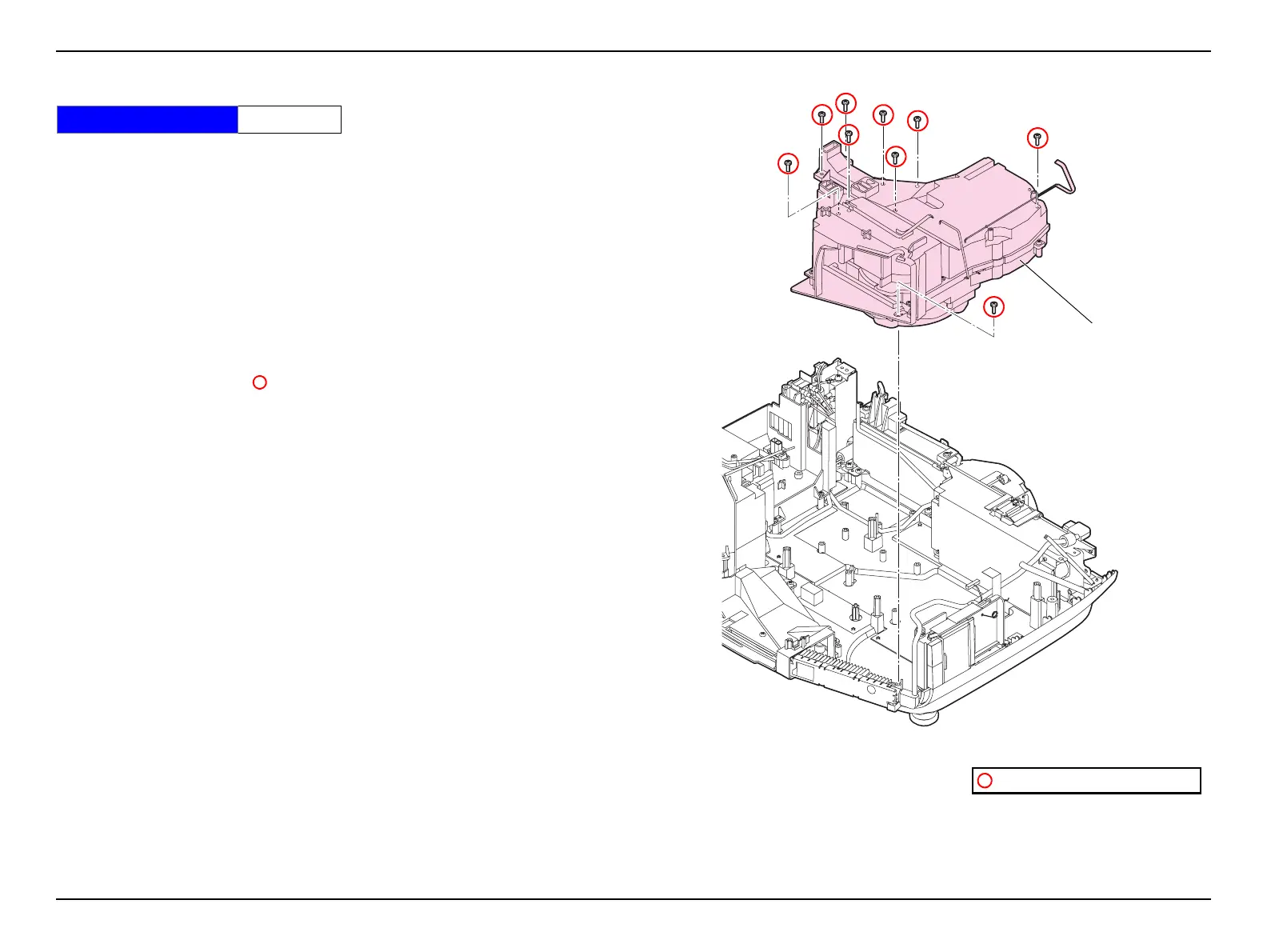

9. Remove the nine screws ( ), and remove the INT Duct (assembly).
Figure 3-25.
Standard Operation Time 20 Min.
INT Duct (assembly)
C.B.P-TITE SCREW,3X10,F/ZB-3C
