EH-TW8000/TW9000/TW9000W Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 83 Revision A
3.3.8.4 Focus Ring / Zoom Ring
1. Remove the Air Filter. (p.64)
2. Remove the Lamp. (p.64)
3. Remove the Rear Case. (p.66)
4. Remove the Front Case. (p.67)
5. Remove the Upper Case. (p.68)
6. Remove the MA Board (assembly). (p.70)
7. Remove the Lens Shutter. (p.77)
8. Remove the Optical Engine (assembly). (p.78)
9. Remove the three screws ( ), and remove the Focus Ring.
10. Remove the three screws ( ), and remove the Zoom Ring.
11. Remove the two screws ( ), and remove the Focus Ring Fasten Sheet from the
Focus Ring.
12. Remove the two screws ( ), and remove the Focus Ring Fasten Sheet from the
Zoom Ring.

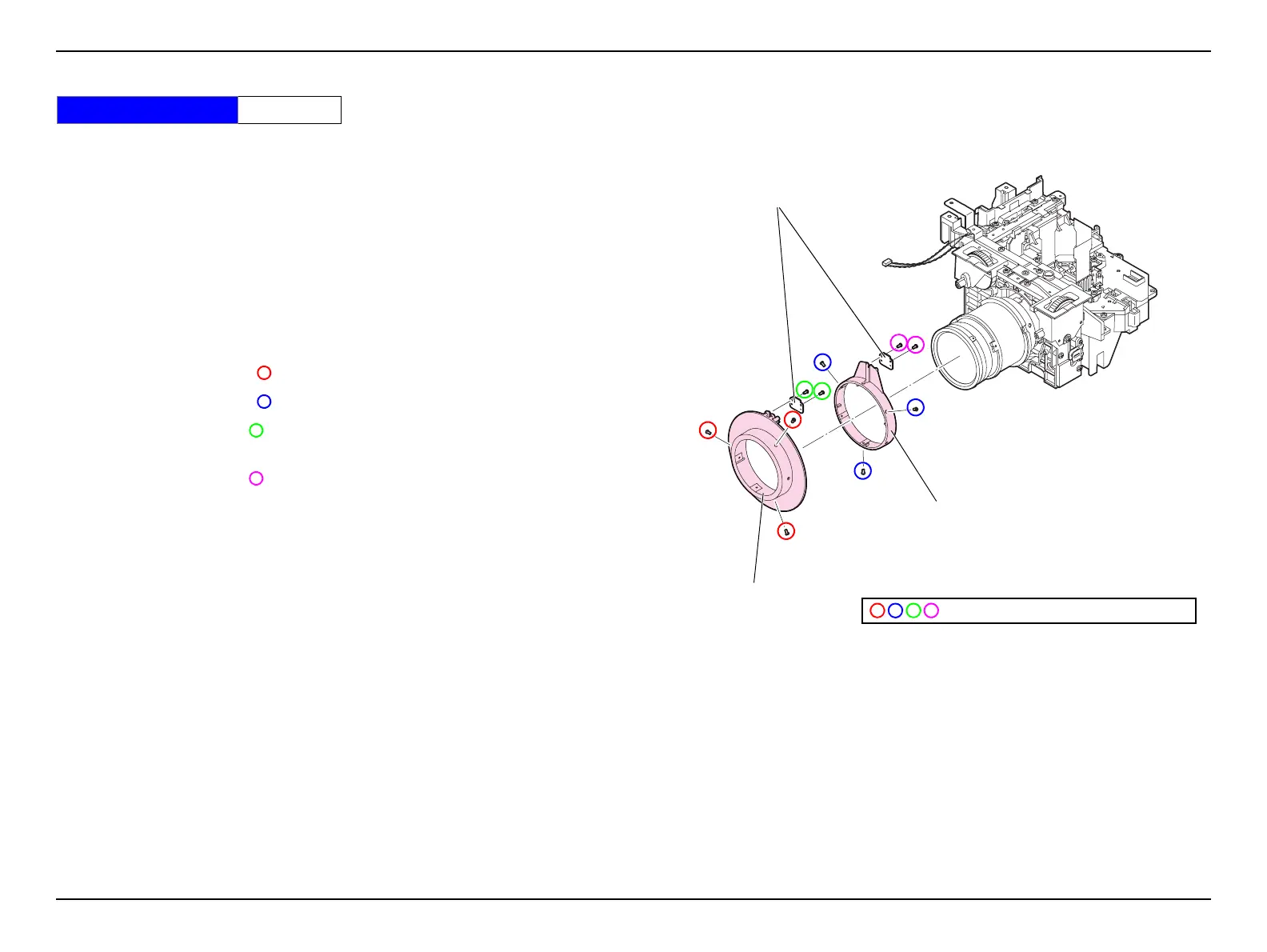

Figure 3-22.
Standard Operation Time 22 Min.
Focus Ring
Zoom Ring
C.P.TYPE3 B-TITESCREW,1.7X4,F/ZB-3C
Focus Ring Fasten Sheet
