Epson EH-TW9000 Service Manual

EH-TW8000/TW9000/TW9000W Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 116 Revision A
3.5 E-pixel Misalignment Correction
When a pixel misalignment of more than one pixel has been observed, it can be
corrected using the E-pixel Misalignment Correction function.

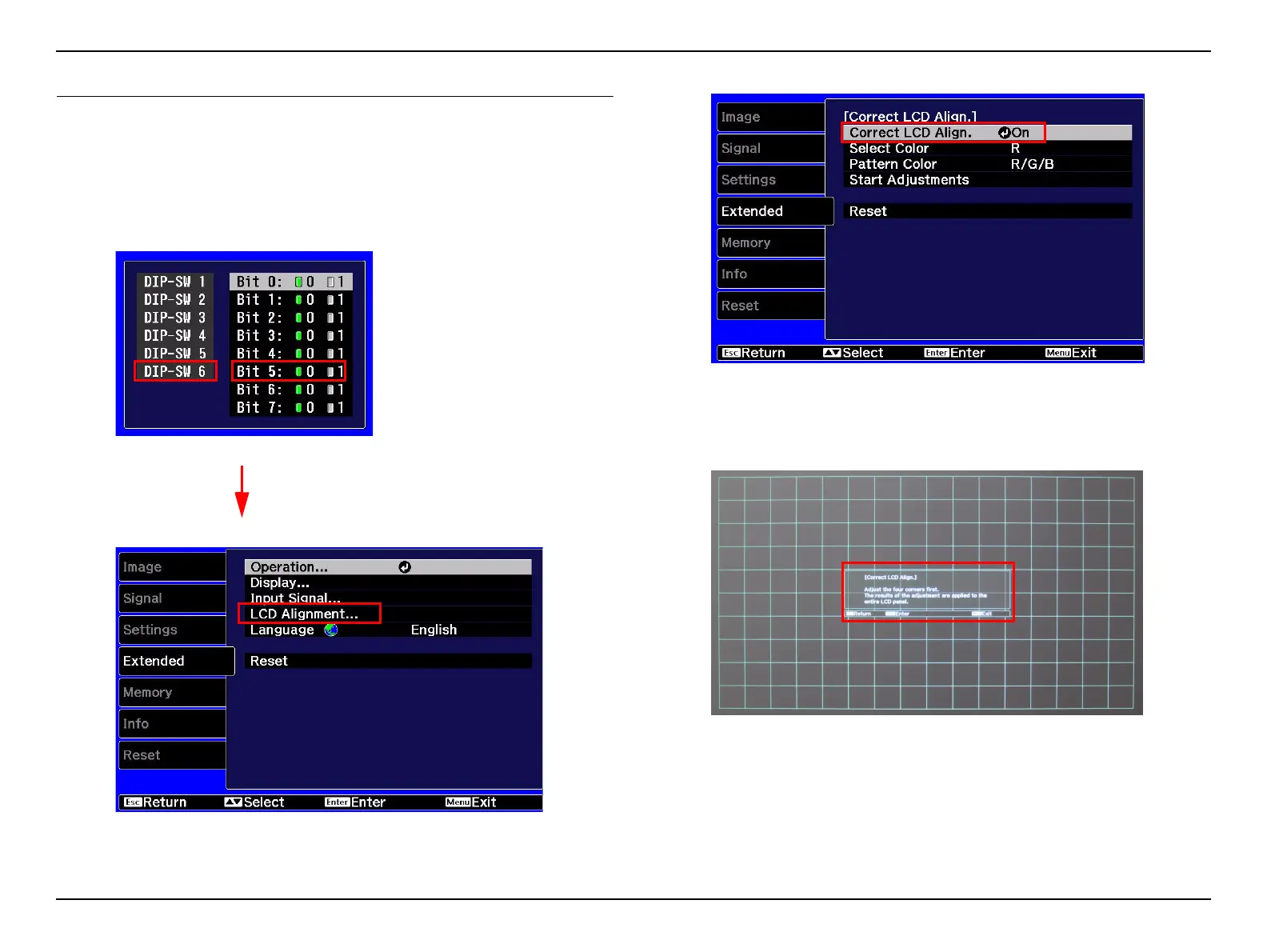

3.5.1 Setup Procedure
1. Switch the value of Bit 5 of DIPSW6 to 1 to enable "LCD Alignment..." on
the Extended menu.
2. Display the menu, and turn on "Correct LCD Align."
3. Set the values of "Select Color" and "Pattern Color", and select "Start
Adjustments".
4. When the adjustment screen appears, adjust "four corners" and "Intersection
Alignment" as necessary following the displayed instruction.
5. After the adjustment, make sure to change the value of DIPSW6 back to 0 to
disable the "LCD Alignment..." on the Extended menu.
