Epson EH-TW9000 Service Manual

EH-TW8000/TW9000/TW9000W Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 86 Revision A
3.3.9.1 Lamp Fan
1. Remove the Air Filter. (p.64)
2. Remove the Lamp. (p.64)
3. Remove the Rear Case. (p.66)
4. Remove the Front Case. (p.67)
5. Remove the Upper Case. (p.68)
6. Remove the MA Board (assembly). (p.70)
7. Remove the Lens Shutter. (p.77)
8. Remove the Optical Engine (assembly). (p.78)
9. Remove the Lamp Fan (assembly). (p.84)
10. Remove the four screws ( ), and remove the Lamp Fan Holder A and the Lamp
Fan.
11. Remove the Lamp Duct Seal from the Lamp Fan Holder A.
12. Remove the Light Valve Cushion (x3) from the Lamp Fan Holder A.
13. Remove the Lamp Fan Holder Cushion from the Lamp Fan.
14. Remove the Floating Cushion (x2) from the Lamp Fan.
15. Remove the Light Valve Cushion (x3) from the Lamp Fan Holder B.

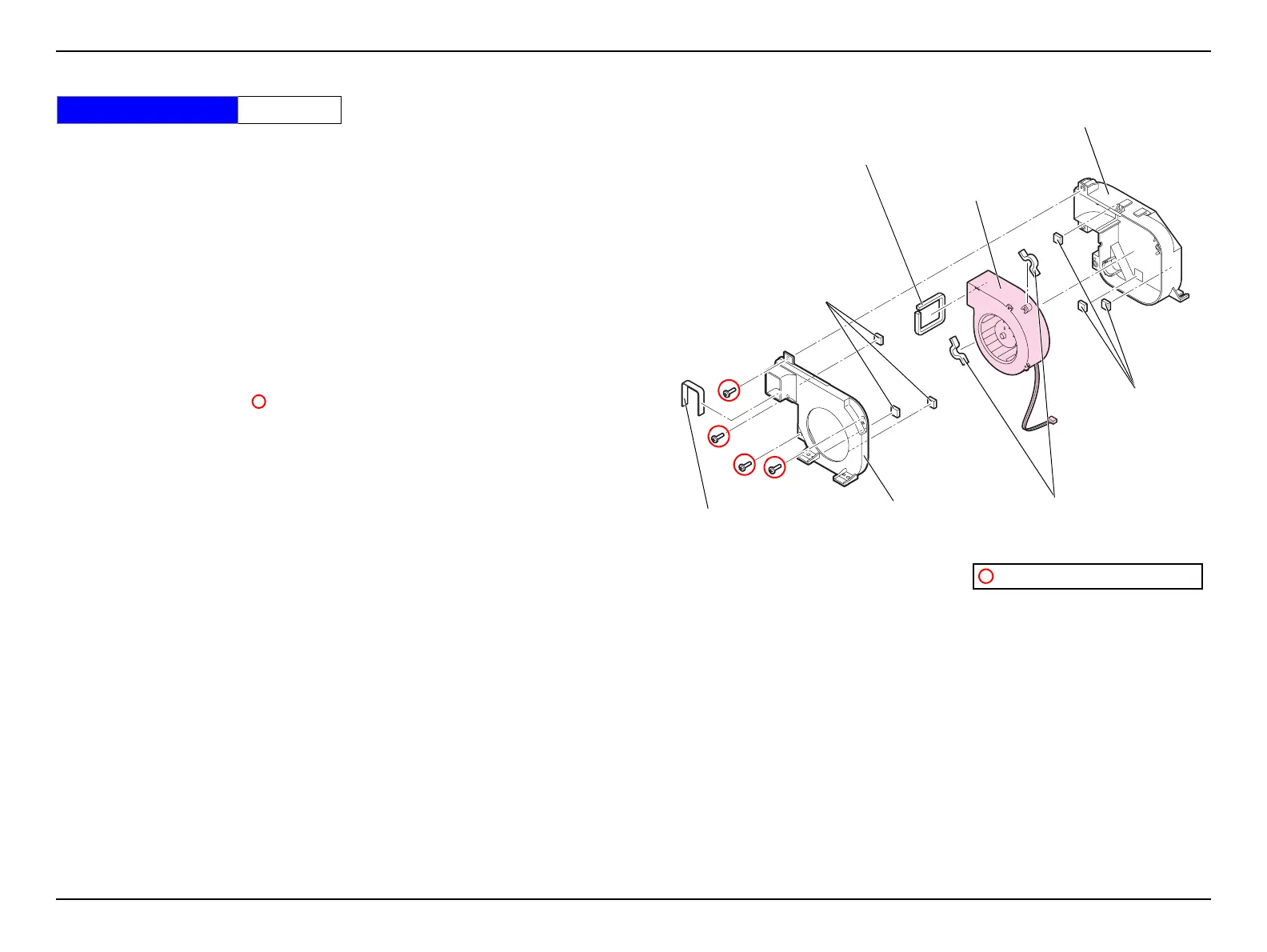

Figure 3-24.
Standard Operation Time 20 Min.
C.B.P-TITE SCREW,3X10,F/ZB-3C
Lamp Fan Holder A
Lamp Fan
Light Valve Cushion
Light Valve
Cushion
Lamp Fan Holder B
Floating Cushion
Lamp Duct Seal
Lamp Fan Holder Cushion
