EH-TW8000/TW9000/TW9000W Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 61 Revision A

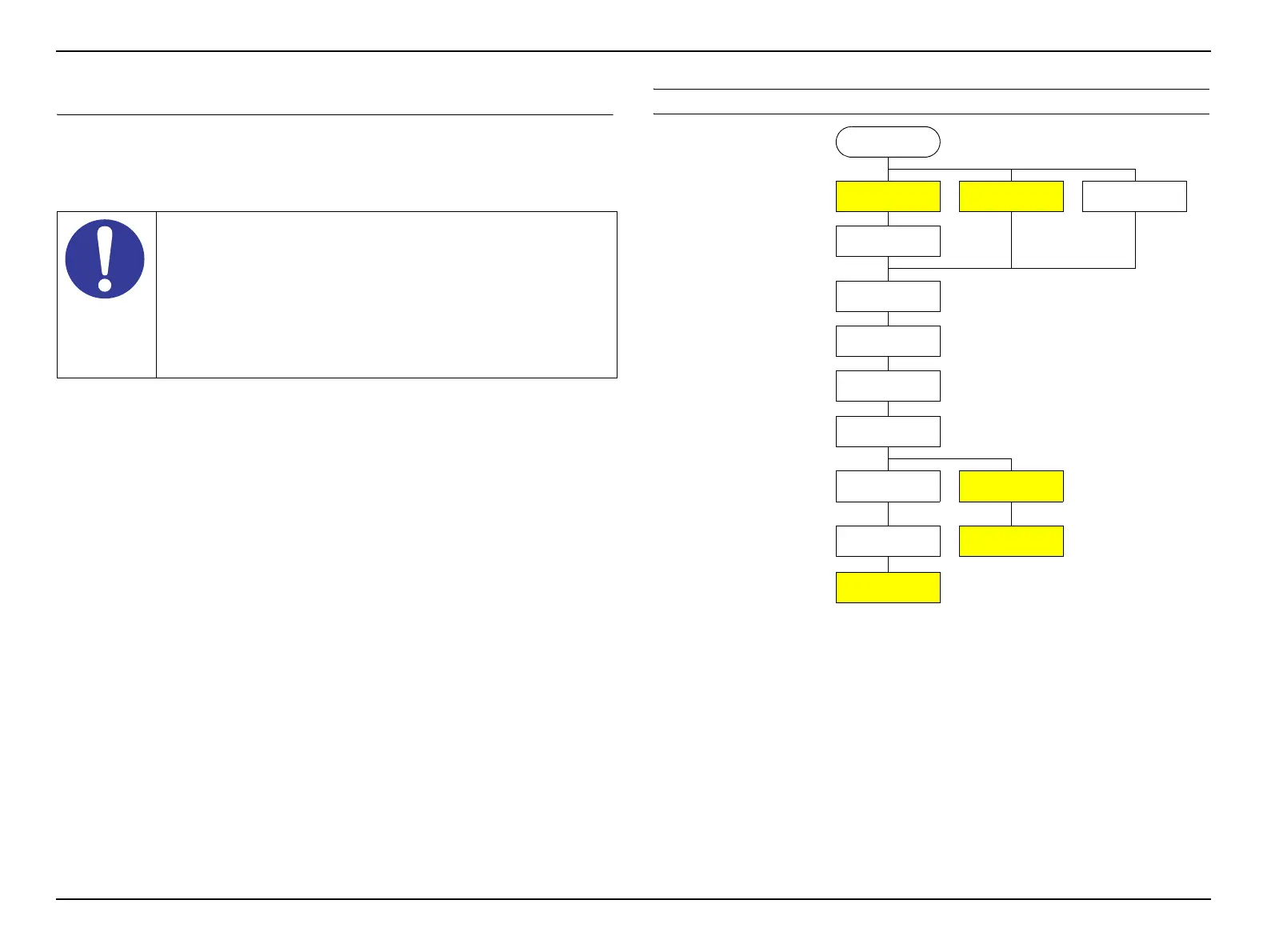

3.2 Flowchart
The general disassembly procedure for the EH-TW8000/TW9000/TW9000W
projectors is illustrated in flowchart below. Unless otherwise specified, all reassembly
should be carried out by following the disassembly procedures in reverse, therefore
reassembling procedures are omitted.
CONSUMABLES/OPTIONS
 The part names in this chapter are simplified. See the
“Reference (Part Names given in the SPI) (p.117)” for the
corresponding official names.
 The parts in yellow are target parts in their category. They
are explained in details in the corresponding sections so as to
reach the parts in the shortest way.
 The parts in white are those which are required to be
removed to reach the parts in yellow.
Start
"3.3.1 Air Filter (p64)"
"3.3.4 Front Case (p67)"
"3.3.5 Upper Case (p68)"
"3.3.6 MA Board (assembly)
(p70)"
"3.3.7 Lens Shutter (p77)"
"3.3.8 Optical Engine
(assembly) (p78)"
"3.3.10 INT Duct (assembly)
(p87)"
"3.3.11 EX Duct (assembly)
(p92)"
"3.3.16 Front Foot (p102)"
"3.3.2 Lamp (p64)"
"3.3.3 Rear Case (p66)"
"3.3.8.3 Zoom/Focus Lever
(1)/(2) (p82)"
"3.3.8.4 Focus Ring / Zoom
Ring (p83)"
