Epson EH-TW9000 Service Manual

EH-TW8000/TW9000/TW9000W Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 108 Revision A
3.3.18 Ballast (assembly)
1. Remove the Air Filter. (p.64)
2. Remove the Lamp. (p.64)
3. Remove the Rear Case. (p.66)
4. Remove the Front Case. (p.67)
5. Remove the Upper Case. (p.68)
6. Remove the MA Board (assembly). (p.70)
7. Remove the Lens Shutter. (p.77)
8. Remove the Optical Engine (assembly). (p.78)
9. Remove the Lamp Fan (assembly). (p.84)
10. Remove the EX Duct (assembly). (p.92)
11. Remove the Inner EX Duct. (p.97)
12. Remove the Power Supply (assembly). (p.103)

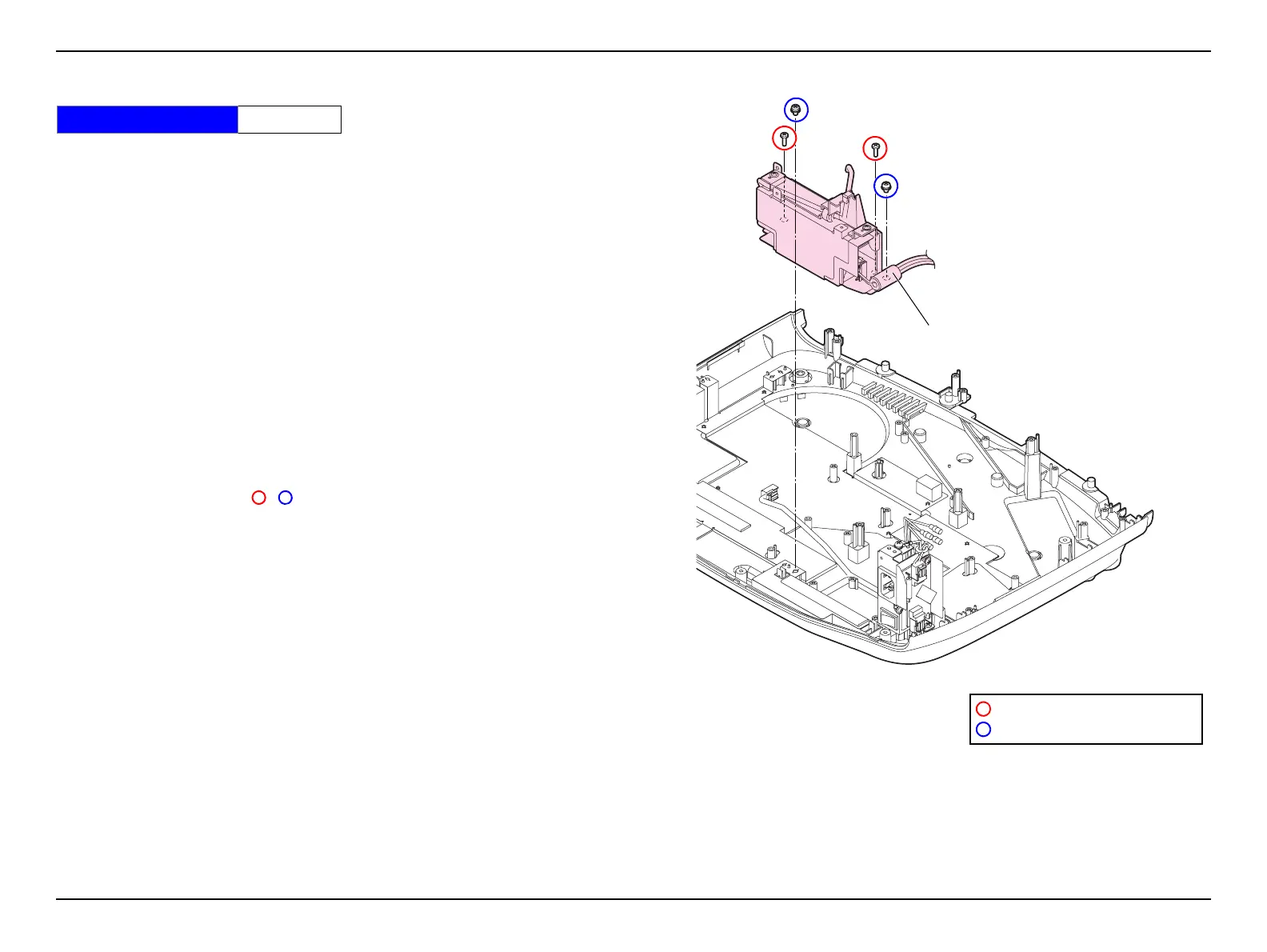

13. Remove the four screws ( )( ), and remove the Ballast (assembly).
Figure 3-41.
Standard Operation Time 25 Min.
C.B.P-TITE SCREW,3X10,F/ZB-3C
C.P.(O)SCREW,4X6,F/NI
Ballast (assembly)
