Epson EH-TW9000 Service Manual

EH-TW8000/TW9000/TW9000W Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 80 Revision A
3.3.8.1 CF Motor
1. Remove the Air Filter. (p.64)
2. Remove the Lamp. (p.64)
3. Remove the Rear Case. (p.66)
4. Remove the Front Case. (p.67)
5. Remove the Upper Case. (p.68)
6. Remove the MA Board (assembly). (p.70)
7. Remove the Lens Shutter. (p.77)
8. Remove the Optical Engine (assembly). (p.78)
9. Remove the two screws ( ), and remove the CF Motor.

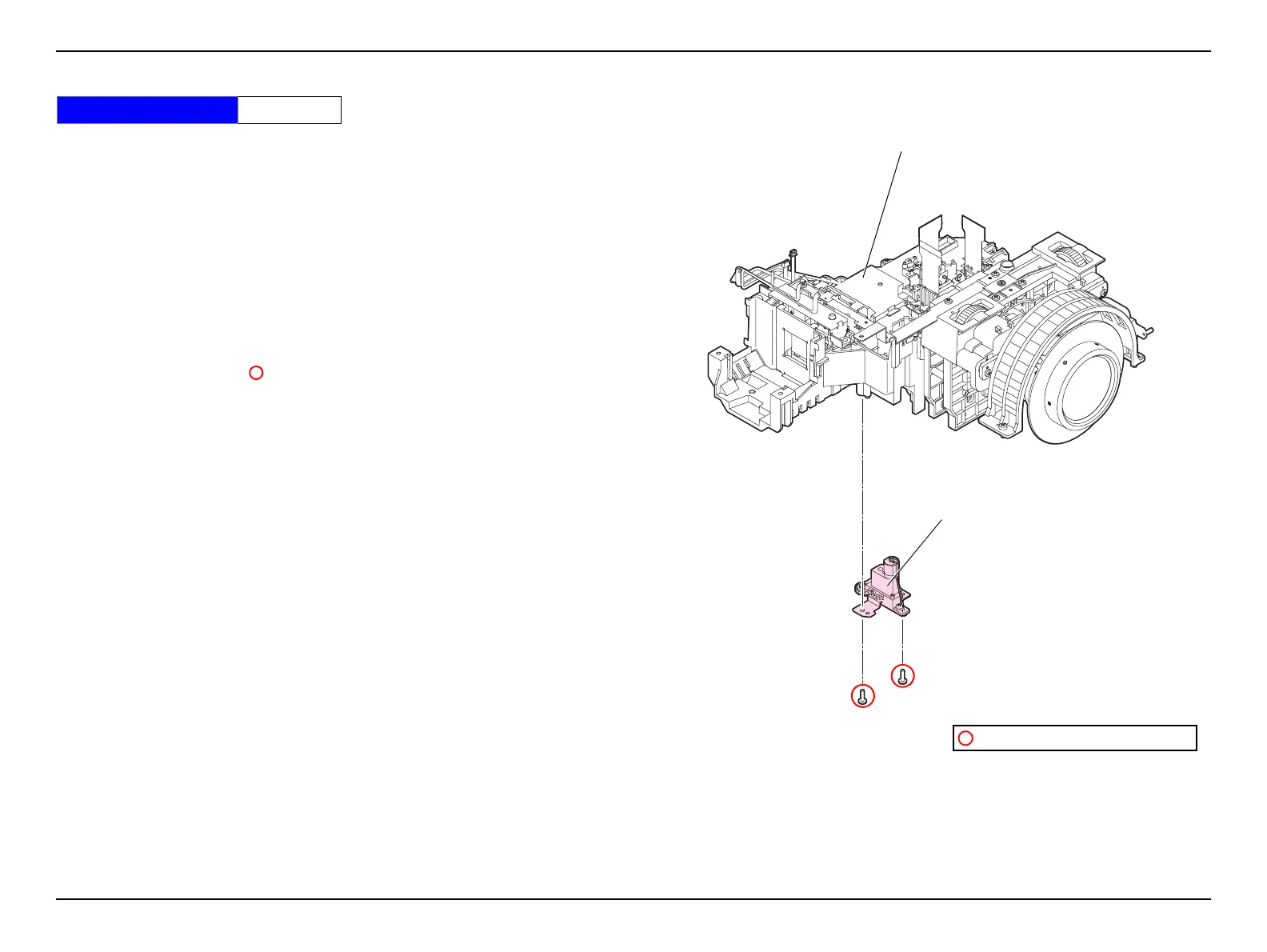

Figure 3-19.
Standard Operation Time 15 Min.
Optical Engine
(assembly)
CF Motor
C.B.P-TITE SCREW,3X10,F/ZB-3C
