EH-TW8000/TW9000/TW9000W Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 82 Revision A
3.3.8.3 Zoom/Focus Lever (1)/(2)
1. Remove the Air Filter. (p.64)
2. Remove the Lamp. (p.64)
3. Remove the Rear Case. (p.66)
4. Remove the Front Case. (p.67)
5. Remove the Upper Case. (p.68)
6. Remove the MA Board (assembly). (p.70)
7. Remove the Lens Shutter. (p.77)
8. Remove the Optical Engine (assembly). (p.78)
9. Remove the screw ( ), and remove the IRE Fasten Plate and the IRE Plate.
10. Remove the Zoom/Focus Lever (1) and (2) from the Optical Engine (assembly).
11. Remove the two screws ( ), and remove the Lens Shift Case A.
12. Remove the two screws ( ), and remove the Lens Shift Case B.

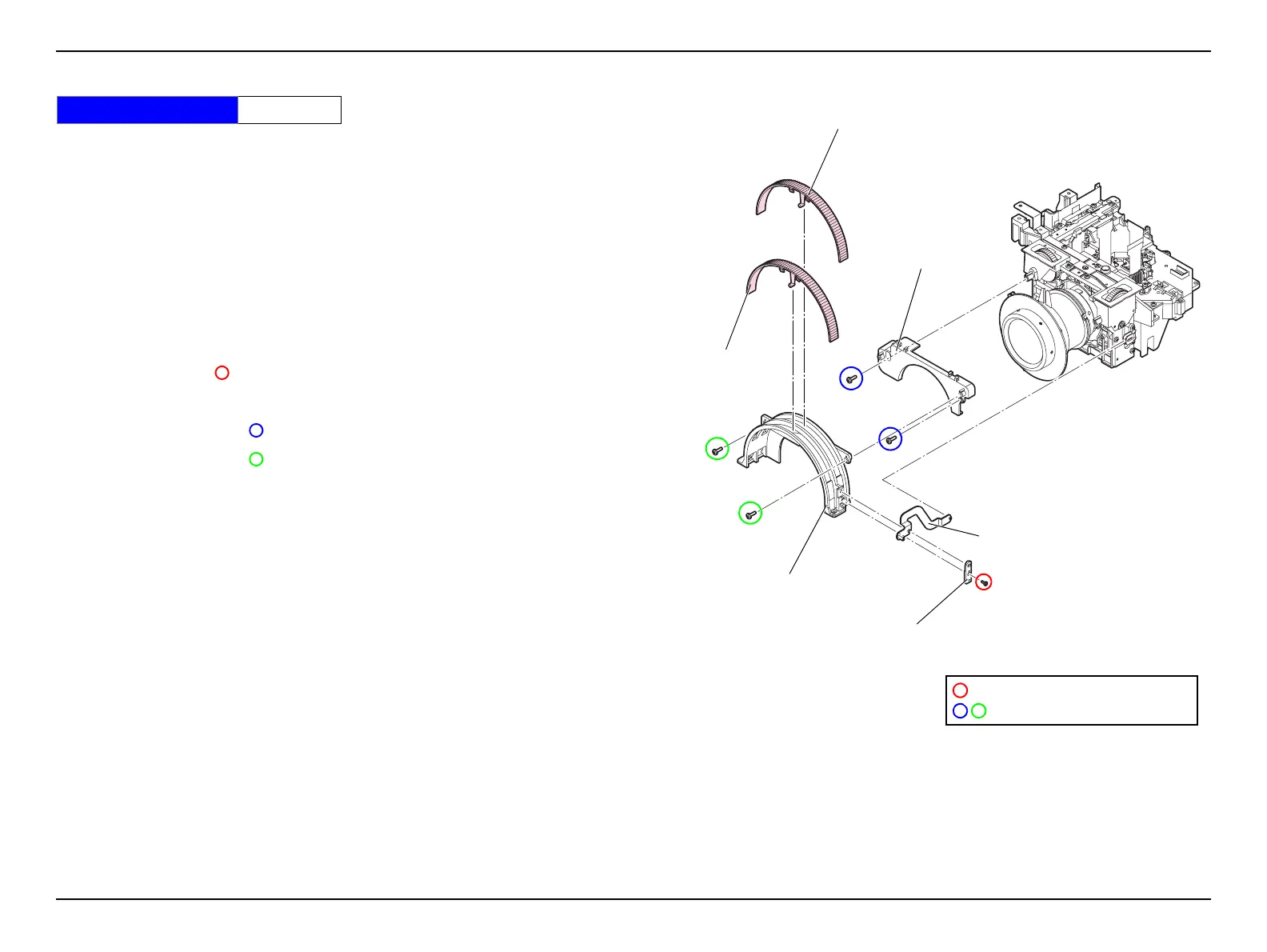

Figure 3-21.
Standard Operation Time 21 Min.
Lens Shift Case B
IRE Fasten Plate
Zoom/Focus Lever (2)
Zoom/Focus
Lever (1)
Lens Shift Case A
IRE Plate
C.B.P-TITE SCREW,2X6,F/ZN-3C
C.B.P-TITE SCREW,3X10,F/ZB-3C
