Epson EH-TW9000 Service Manual

EH-TW8000/TW9000/TW9000W Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 111 Revision A
3.3.20 AC Cable
1. Remove the Air Filter. (p.64)
2. Remove the Lamp. (p.64)
3. Remove the Rear Case. (p.66)
4. Remove the Front Case. (p.67)
5. Remove the Upper Case. (p.68)
6. Remove the MA Board (assembly). (p.70)
7. Remove the Lens Shutter. (p.77)
8. Remove the Optical Engine (assembly). (p.78)
9. Remove the Lamp Fan (assembly). (p.84)
10. Remove the EX Duct (assembly). (p.92)
11. Remove the Inner EX Duct. (p.97)
12. Remove the Power Supply (assembly). (p.103)
13. Remove the Ballast (assembly). (p.108)
14. Remove the Filter Board Unit. (p.110)
15. Remove the four screws ( )( ), and remove the AC Cable.

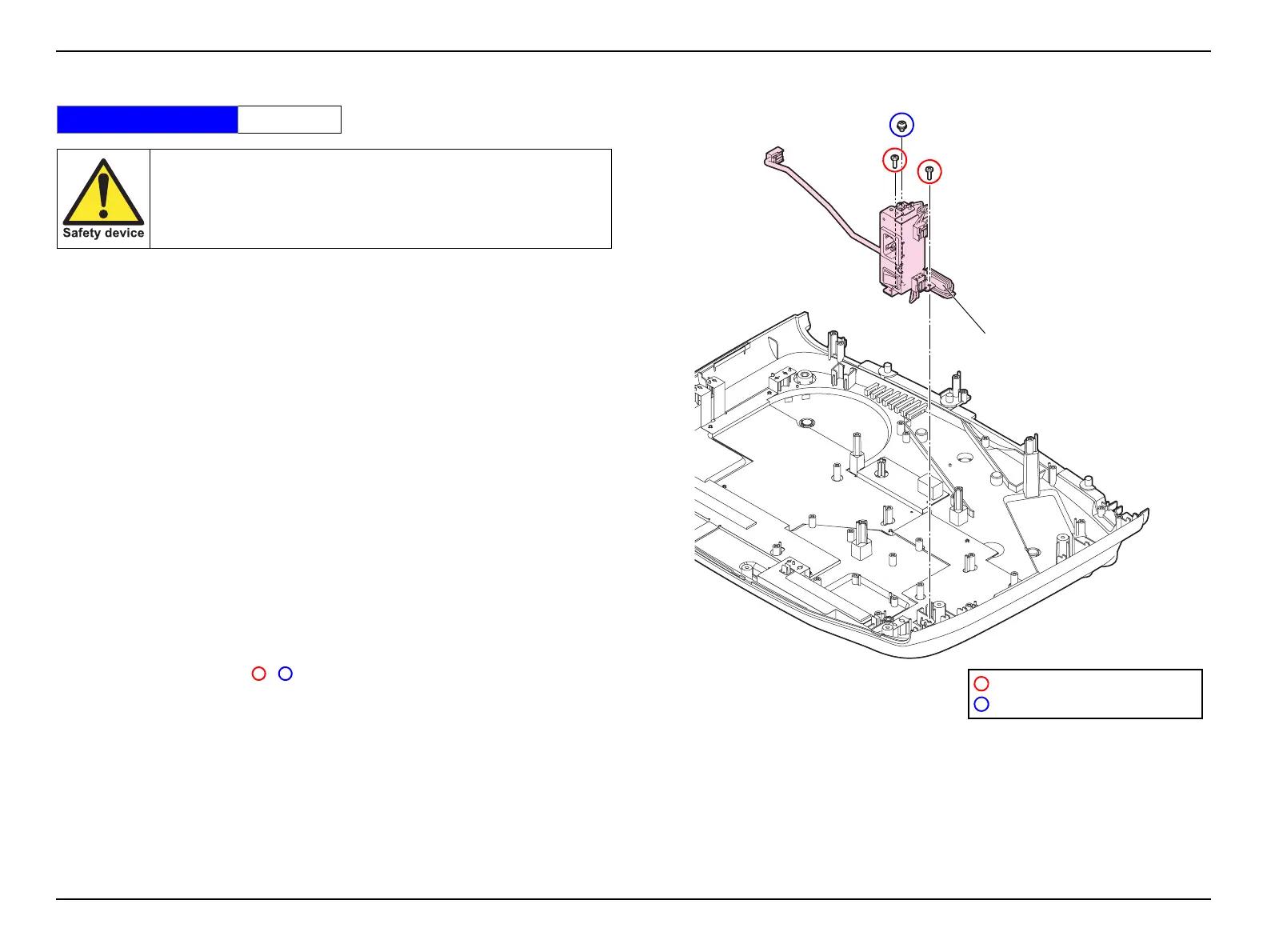

Figure 3-44.
Standard Operation Time 27 Min.
This part is designated as the Safety Device. When removing/
replacing the part for repair, be sure to refer to “3.4 Safety Check
after Servicing (p.113)”. According to the instructions in it,
handle the part and perform the procedure after servicing.
C.B.P-TITE SCREW,3X10,F/ZB-3C
C.P.(O)SCREW,4X6,F/NI
AC Cable
