Epson EH-TW9000 Service Manual

EH-TW8000/TW9000/TW9000W Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 99 Revision A
3.3.14 RCF Board
1. Remove the Air Filter. (p.64)
2. Remove the Lamp. (p.64)
3. Remove the Rear Case. (p.66)
4. Remove the Front Case. (p.67)
5. Remove the Upper Case. (p.68)
6. Remove the MA Board (assembly). (p.70)
7. Remove the Lens Shutter. (p.77)
8. Remove the Optical Engine (assembly). (p.78)
9. Remove the EX Duct (assembly). (p.92)

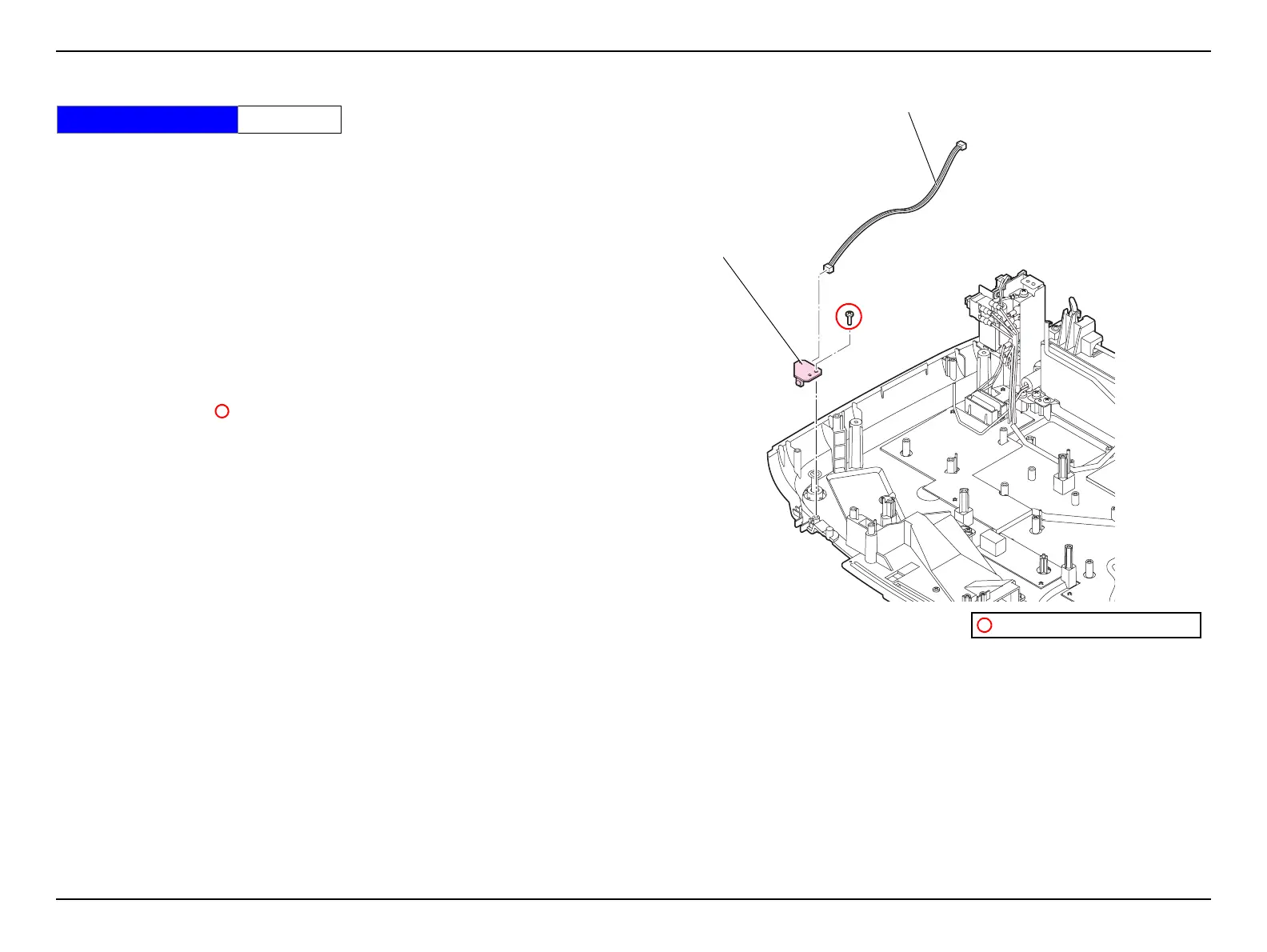

10. Remove the screw ( ), and remove the RCF Board.
11. Remove the RC Front Cable from the RCF Board.
Figure 3-34.
Standard Operation Time 19 Min.
RC Front Cable
RCF Board
C.B.P-TITE SCREW,3X10,F/ZB-3C
