EH-TW8000/TW9000/TW9000W Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 68 Revision A
3.3.5 Upper Case
1. Remove the Air Filter. (p.64)
2. Remove the Lamp. (p.64)
3. Remove the Rear Case. (p.66)
4. Remove the Front Case. (p.67)
5. Remove the three screws ( ) from the bottom.
6. Open the Control Panel Cover by sliding it, and remove the screw ( ).

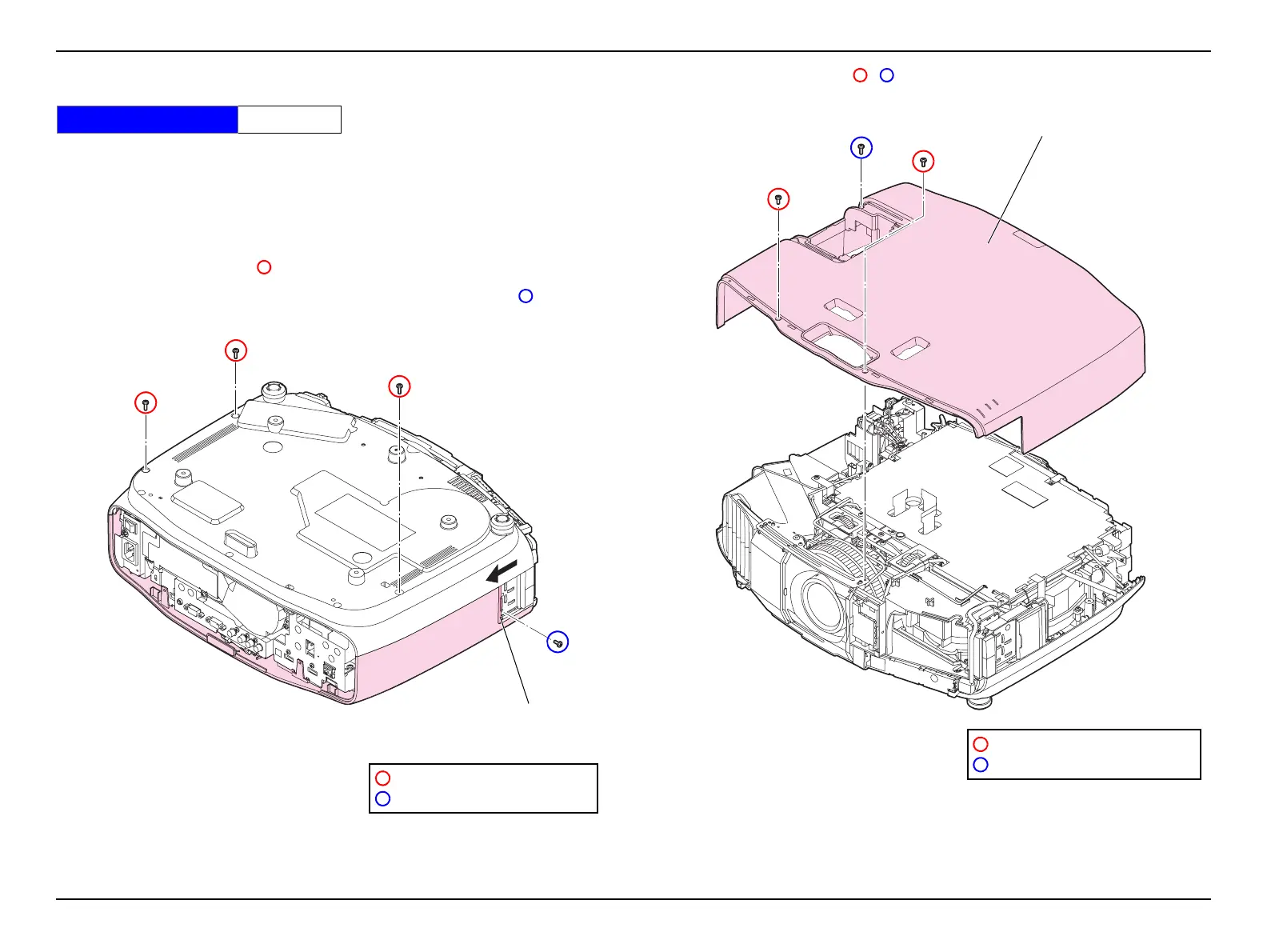

Figure 3-8.
7. Remove the three screws ( )( ), and remove the Upper Case.
Figure 3-9.
Standard Operation Time 6 Min.
Control Panel Cover
C.B.P-TITESCREW,3X10,F/ZN-3C
C.B.SCREW,3X8,F/ZN-3C
Upper Case
C.B.SCREW,3X8,F/ZB-3C
C.B.P-TITESCREW,3X10,F/ZN-3C
