Epson EH-TW9000 Service Manual

EH-TW8000/TW9000/TW9000W Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 92 Revision A
3.3.11 EX Duct (assembly)
1. Remove the Air Filter. (p.64)
2. Remove the Lamp. (p.64)
3. Remove the Rear Case. (p.66)
4. Remove the Front Case. (p.67)
5. Remove the Upper Case. (p.68)
6. Remove the MA Board (assembly). (p.70)
7. Remove the Lens Shutter. (p.77)
8. Remove the Optical Engine (assembly). (p.78)

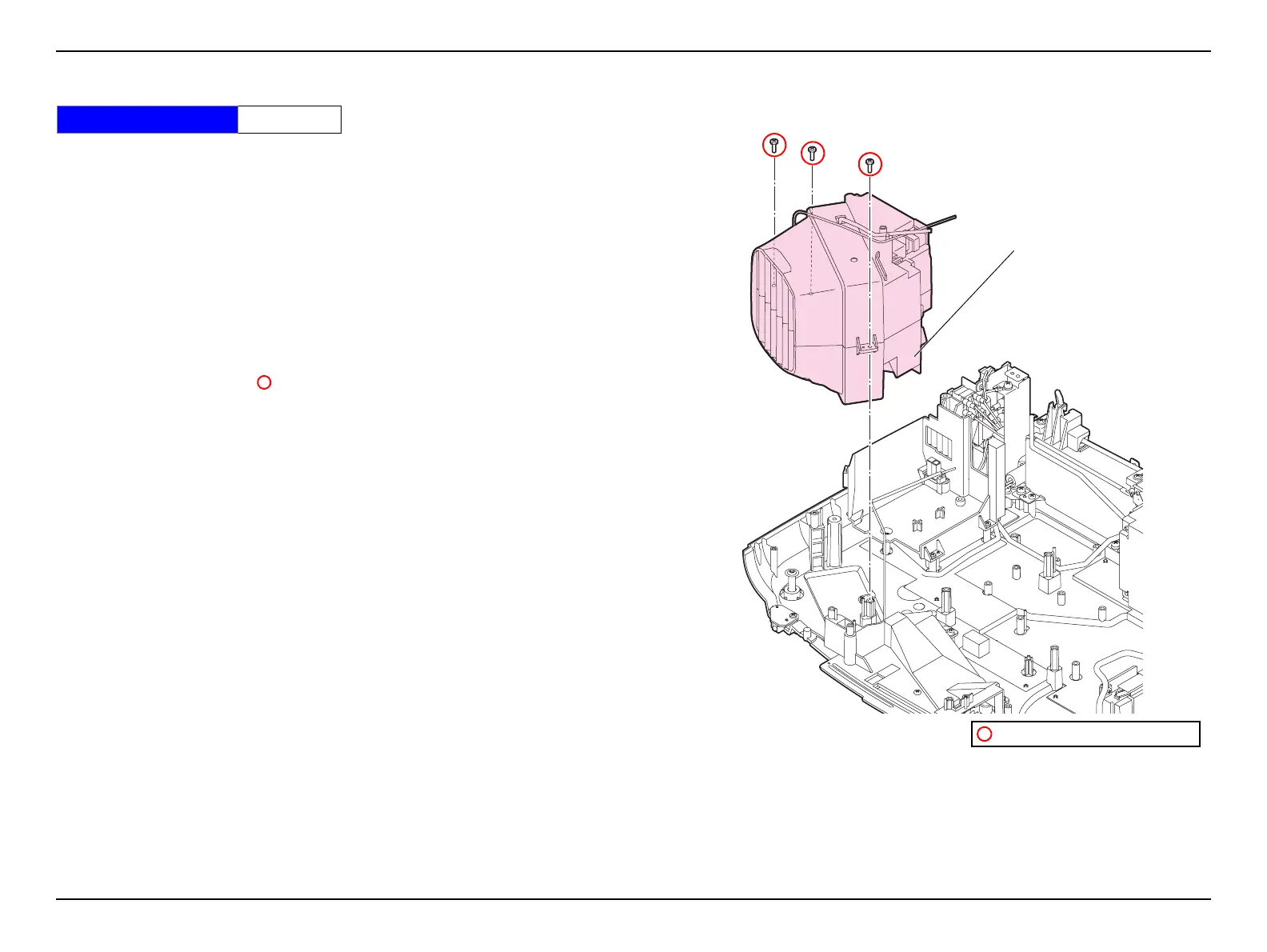

9. Remove the three screws ( ), and remove the EX Duct (assembly).
Figure 3-29.
Standard Operation Time 19 Min.
EX Duct (assembly)
C.B.P-TITE SCREW,3X10,F/ZB-3C
