3.3 Disassembly
This section explains one of the shortest ways to reach the target part to repair. The
parts to be removed in advance are indicated in italic with their reference pages, so
remove those parts referring to their pages before starting.
3.3.1 Air Filter
1. Disengage the hooks of the Air Filter Cover (Front Case), and remove the Air
Filter Cover.
2. Remove the Air Filter.

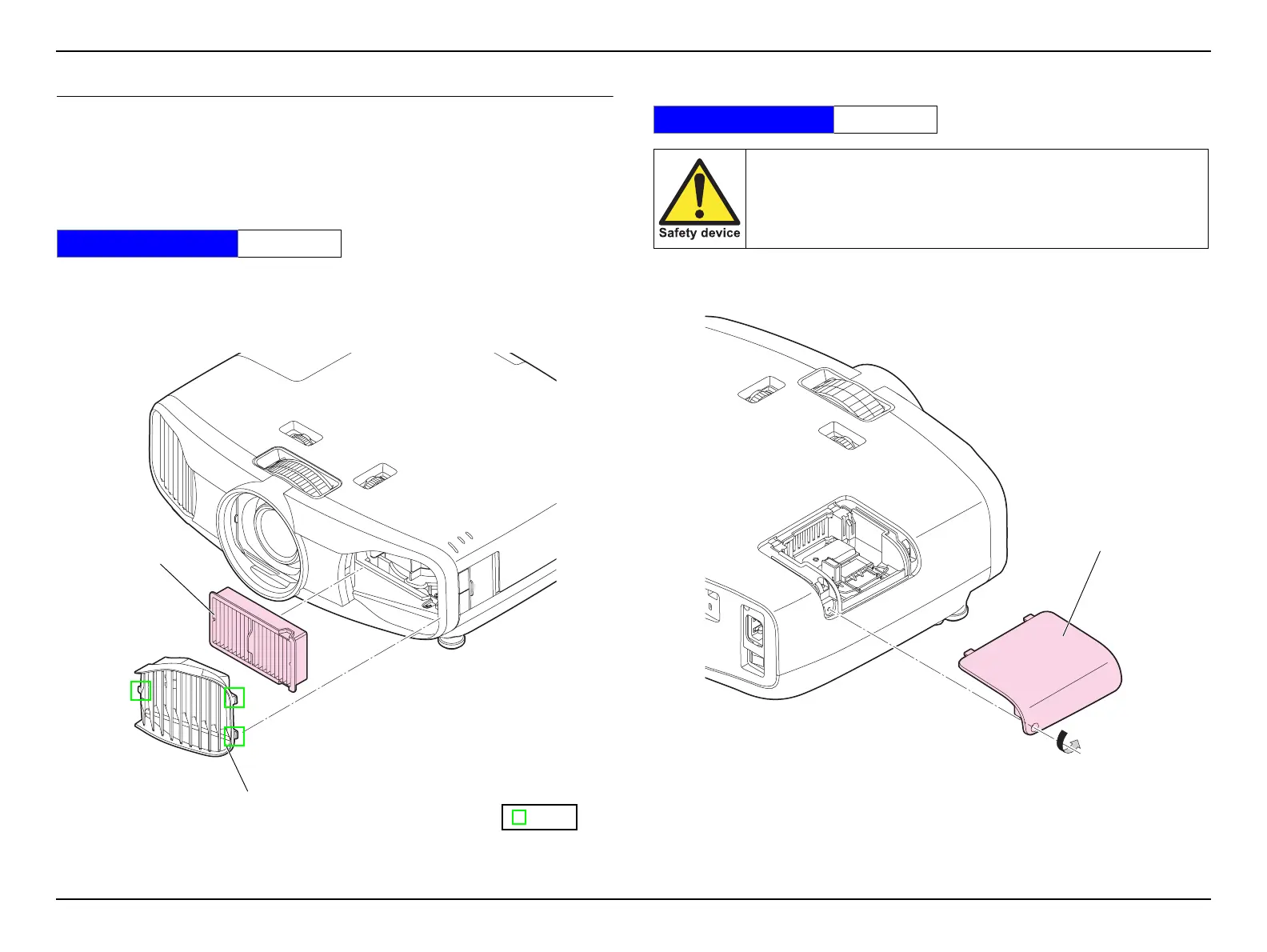

Figure 3-1.
3.3.2 Lamp
1. Loosen the screw, and remove the Lamp Cover.
Figure 3-2.
Standard Operation Time - Min.
Air Filter Cover (Front Case)
Air Filter
Hook
Standard Operation Time - Min.
This part is designated as the Safety Device. When removing/
replacing the part for repair, be sure to refer to “3.4 Safety Check
after Servicing (p.113)”. According to the instructions in it,
handle the part and perform the procedure after servicing.
Lamp Cover
