EPSON LX-300+II/300+II RTP/1170II Revision D
LX-300+II RTP DISASSEMBLY AND ASSEMBLY 102
7.1.4 Panel Board Assembly Removal
1. Remove the upper housing. (See 7.1.2 “Upper Housing Unit Removal”.)
2. Disconnect the panel FFC from the connector of the panel board assembly.
3. Remove 3 screws (C.B.P., Tite, 3x10 F/ZN; Torque 0.78-0.98 N.M.) securing the
panel board assembly to the lower housing.
4. Remove the panel board assembly from the lower housing.

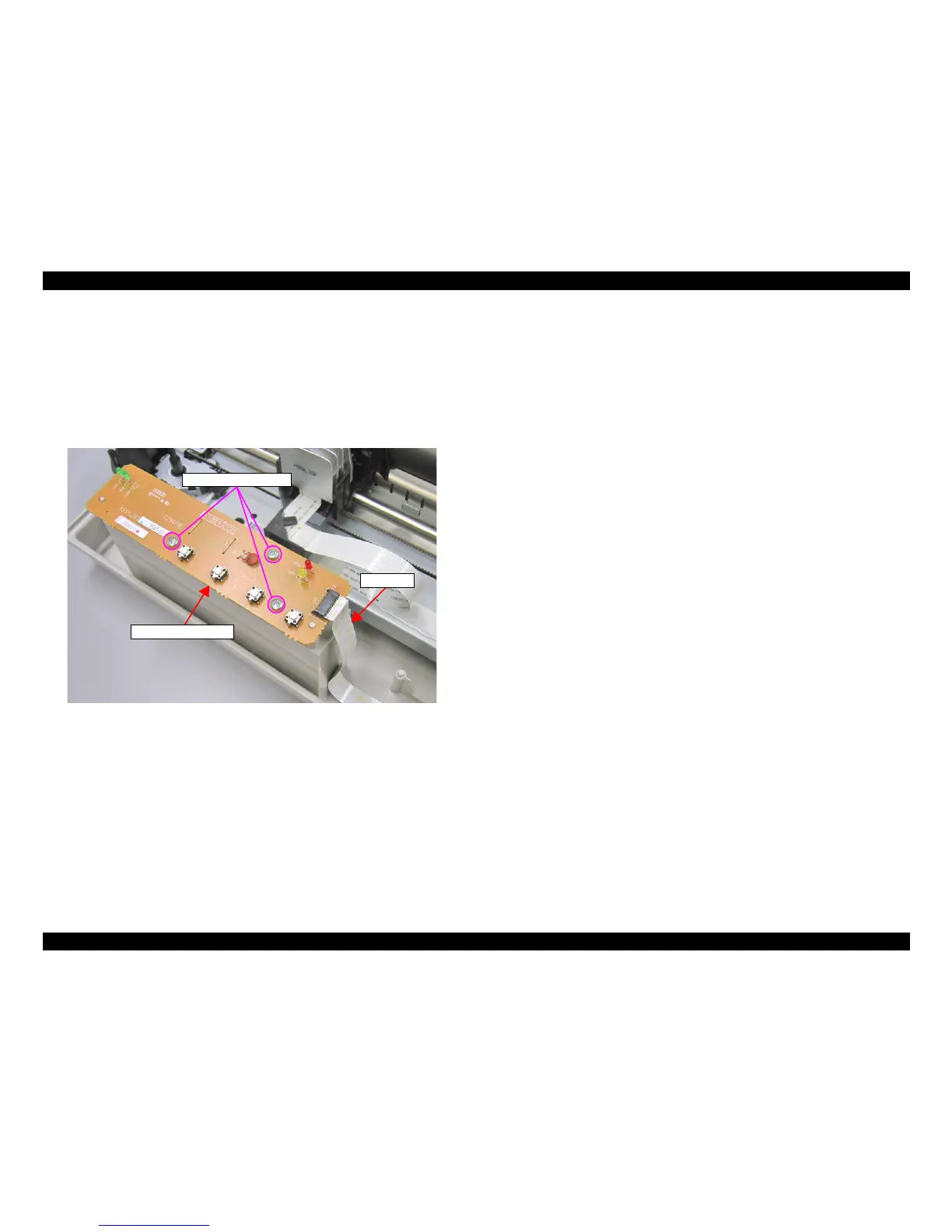

Figure7-6. Panel Board Assembly Removal
C.B.P., Tite, 3x10 F/ZN
Panel Board Assembly
Panel FFC
