Appendix Connector Summary 111

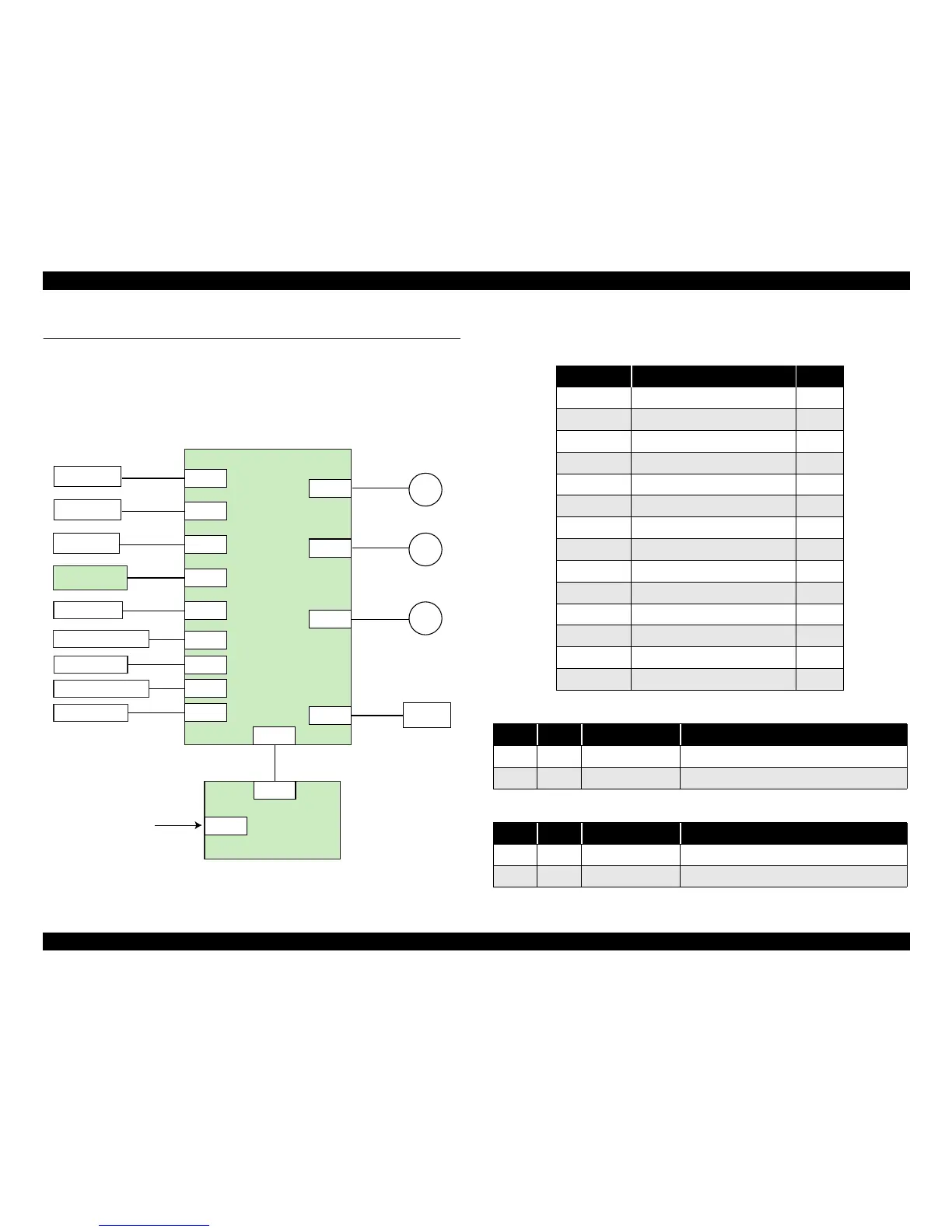

A.1 Connector Summary
A.1.1 Major Component Unit
The figure below illustrates how the primary components are connected.
CS motor is only available for LX-300+II.
Figure A-1 Cable Connections
A.1.2 Pin Assignments
CR Motor
PE (REAR) Detector
PE (bottom) Detector
Release Detector
PG Detector
Serial I/F
Parallel I/F
PF Motor
CS Motor
Option
Print Head
C294PNL
Operation Panel
C294PSB/PSE
Control Board C640/641MAIN
HP Detector
Power Board
CN3
CN2
USB I/F
CN17
CN1
CN13
CN4
CN7
CN6
CN5
CN8
CN16
CN12
CN10
CN11
AC IN
CN1
CN2
Table A-1. C640/ 641 MAIN Board Connector Summary
Connector Function Pins
CN1 Parallel I/F 36
CN2 Serial I/F 6
CN3 HP Detector 2
CN4 PE (Rear) Sensor 2
CN5 Release Detector 2
CN6 PE (bottom) Detector 2
CN7 PG Detector 2
CN8 Power Board C294PSB/PSE 9
CN16 Printhead 12
CN10 CR Motor 4
CN11 PF Motor 4
CN12 CS Motor (Option) 10
CN13 Operation Panel C294PNL 12
CN17 USB I/F 4
Table A-2. Connector Pin Assignments - CN3
Pin I/O Signal Name Function
1 I HP Carriage home position sensor signal
2 - GND Signal ground
Table A-3. Connector Pin Assignments - CN4
Pin I/O Signal Name Function
1 I RPE Rear paper end sensor signal
2 - GND Signal ground
