Disassembly and Assembly Disassembly and Assembly 69
4.2 Disassembly and Assembly
This section explains the disassembly and assembly of LX-300+II/LX-1170II. Unless
otherwise specified, assembly can be done in the reverse order of the disassembly
procedure.
Anything that service person should pay attention to is described under “Check Point”. Any
adjustment required after assembly is described under “Adjustment”.
When you have to remove parts that are not described in this chapter, refer to the exploded
diagram on Appendix of this manual.
The figure below is the disassembly flowchart for main component.

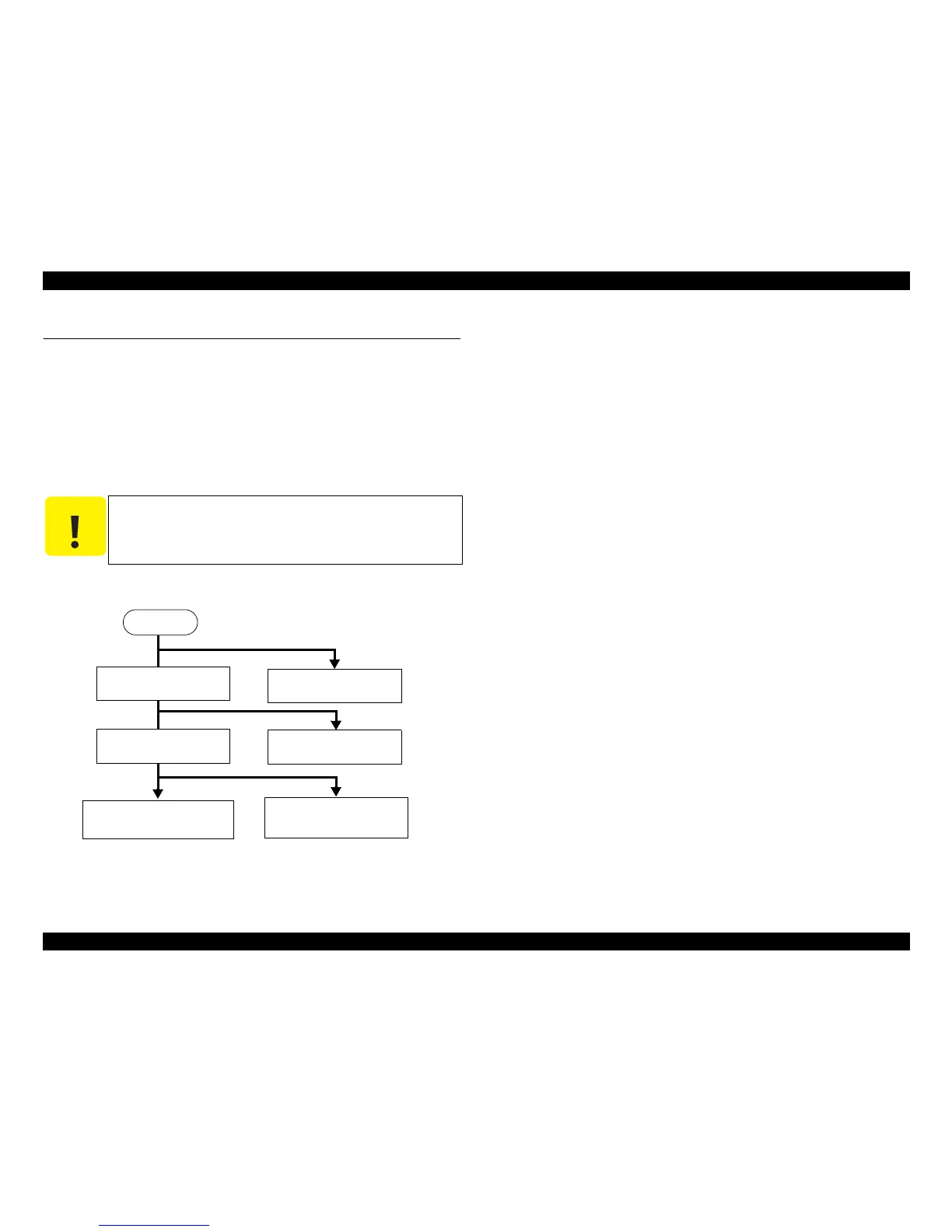

Flowchart 4-1. Disassembly Flowchart (Main Component)
C A U T I O N
 Read 4.1.1 “Precautions” before start disassembling the
printer.
 Remove ink ribbon and paper before disassembling the
printer.
4.2.2 “Upper Housing
Unit Removal”
4.2.1 “Printhead Unit
Removal”
4.2.4 “Panel Board
Assembly Removal”
4.2.3 “Printer Mechanism
Removal”
4.2.6 “P/S Board Assembly
Removal”
4.2.5 “Main Board
Assembly Removal”
START
