EPSON LX-300+II/300+II RTP/1170II Revision D
LX-300+II RTP DISASSEMBLY AND ASSEMBLY 104
7.1.6 P/S Board Assembly Removal
1. Remove the upper housing. (See 7.1.2 “Upper Housing Unit Removal”.)
2. Remove the printer mechanism. (See 7.1.3 “Printer Mechanism Removal”.)
3. Remove 1 screw (C.B(O), Screw, 4x8, F/ZN; Torque 0.98-1.18 N.M.) and the
grounding cable.
4. Remove the power cable (CN1) connecting to the Power Supply board assembly.
Remove the power switch from the lower housing.
5. Disconnect the harness connecting the Power Supply board assembly to the main
board assembly. (CN8 of the main board assembly)
Press one edge of CN8 in order to remove or install the harness.
6. Remove 4 screws (C.B.P., Tite, 3x10 F/ZN; Torque 0.78-0.98 N.M.) securing the
Power Supply board assembly to the lower housing.
7. Remove the Power Supply board assembly.

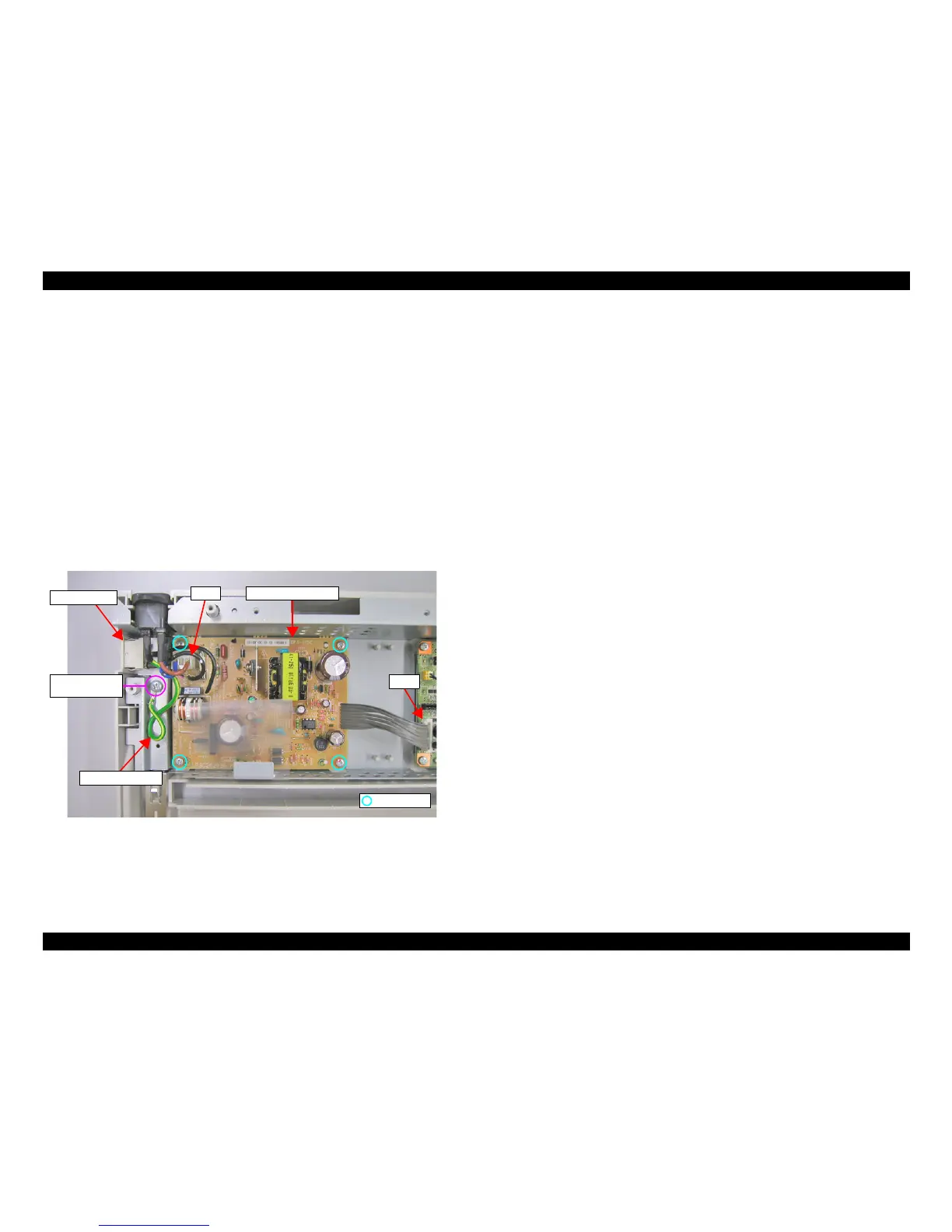

Figure 7-8. Power Supply Board Assembly Removal
7.1.7 Printer Mechanism Disassembly
About Printer Mechanism Disassembly for the LQ-300+II RTP, See Chapter 4 “Printer
Mechanism Disassembly” on page -76.
Grounding Cable
C.B(O), Screw,
4x8 F/ZN
CN1
CN8
Power Switch
P/S Board Assembly
CBP (3x10)
