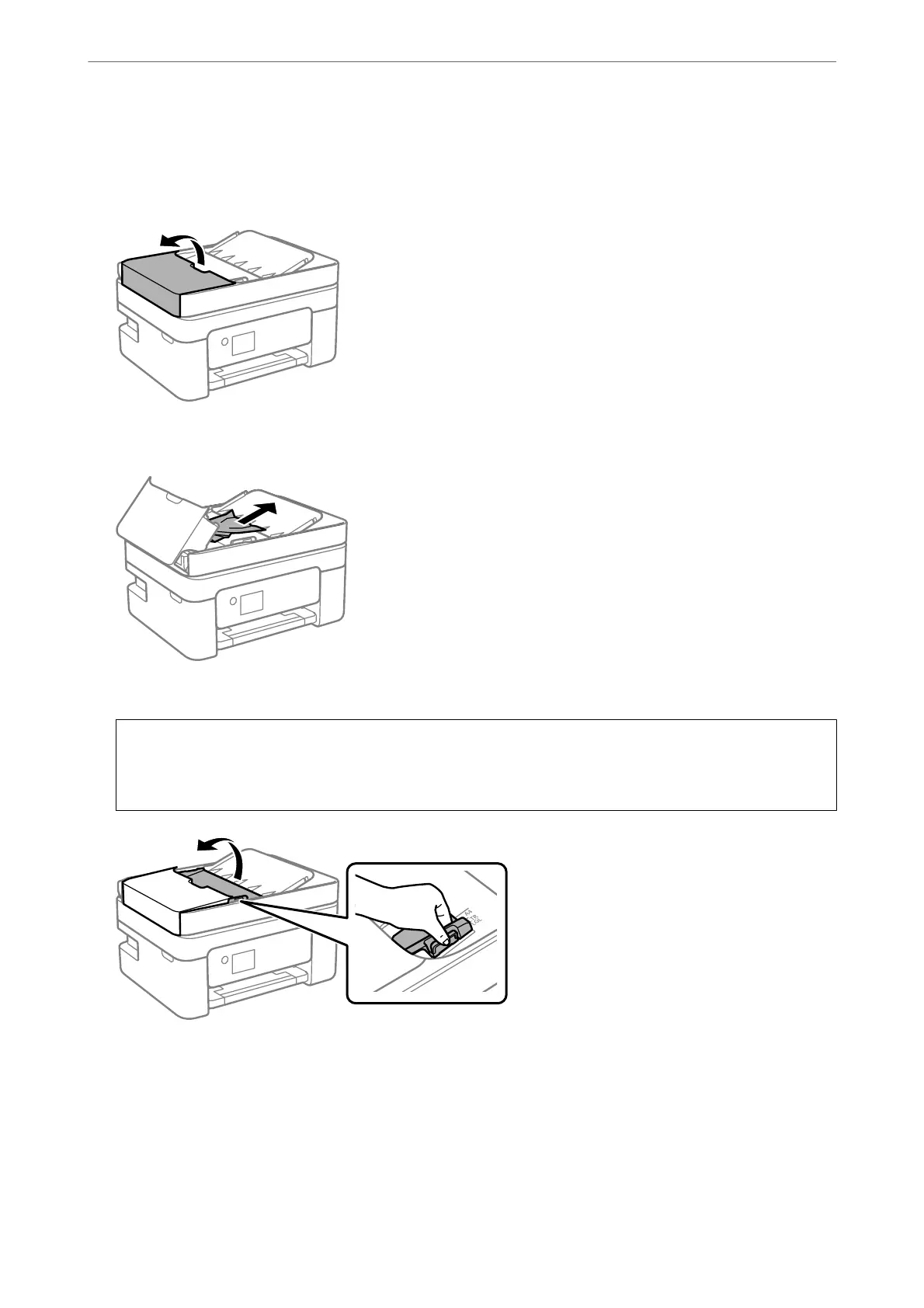

Removing Jammed Paper from the ADF

Open the ADF cover.

Remove the jammed paper.

Raise the ADF input tray.

Important:

Make sure that you open the ADF cover before raising the ADF input tray. Otherwise, the ADF may be

damaged.

Solving Problems

Removing Jammed Paper

Removing Jammed Paper from the ADF

193
