288 Maintenance
Removing the Optional 550 Sheet Feeder
IMPORTANT:
• When you remove the optional 550 sheet feeder (Tray2), be sure to turn off the printer, unplug the power code, and
disconnect all cables from the back of the printer before starting these tasks.

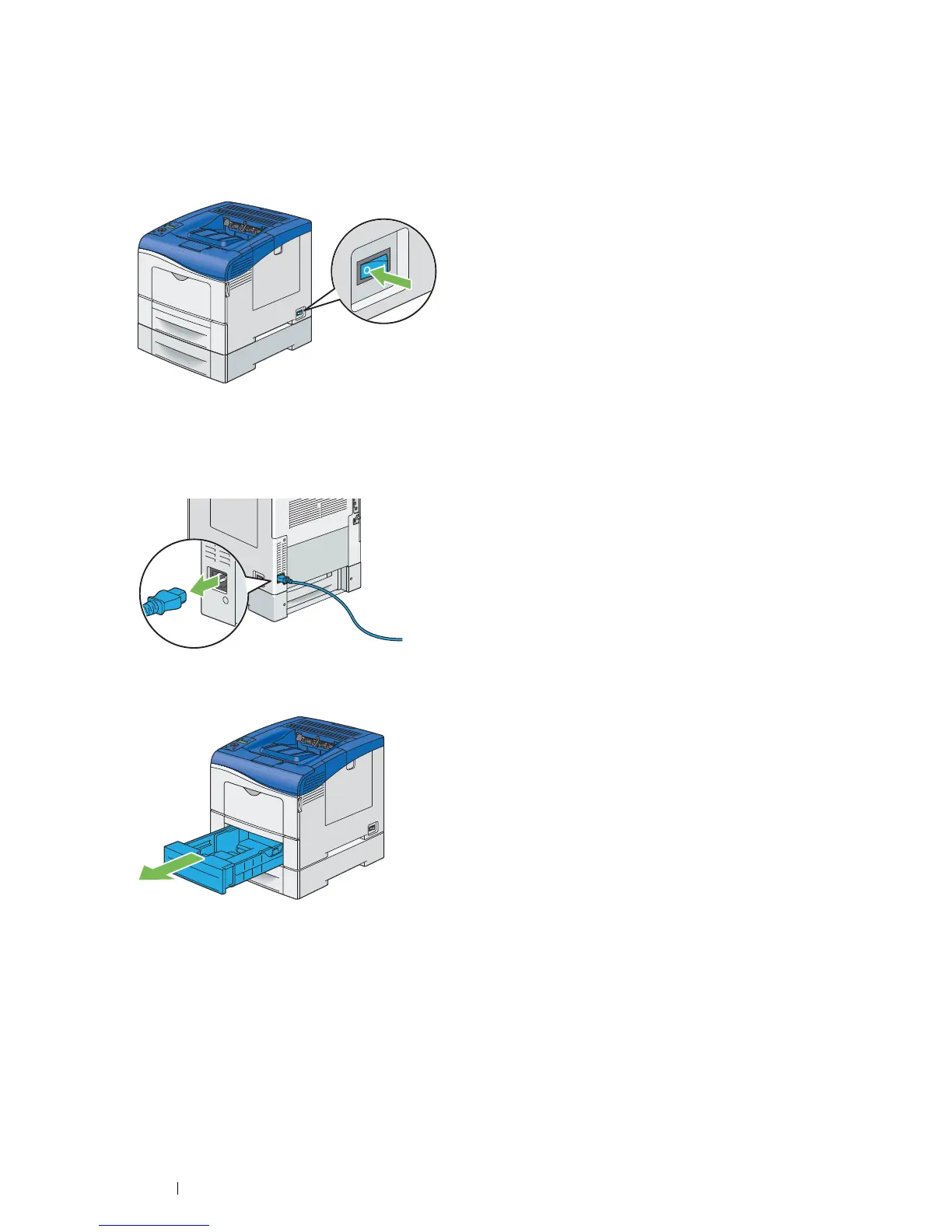

1 Turn off the printer.
IMPORTANT:
• If the optional hard disk unit is not installed on your printer, note that the data in the memory are cleared when the printer
is turned off.
2 Disconnect the power cord from the power connector on the rear of the printer.
3 Pull the standard 550 sheet tray out of the printer about 200 mm. Hold the standard 550 sheet tray with both
hands, and remove it from the printer.
To Next Page
