Connecting external d evices
Connecting external audio devices
Microphone port / Line In
Audiodevices, connectingAudioportsMicrophone ,connecting

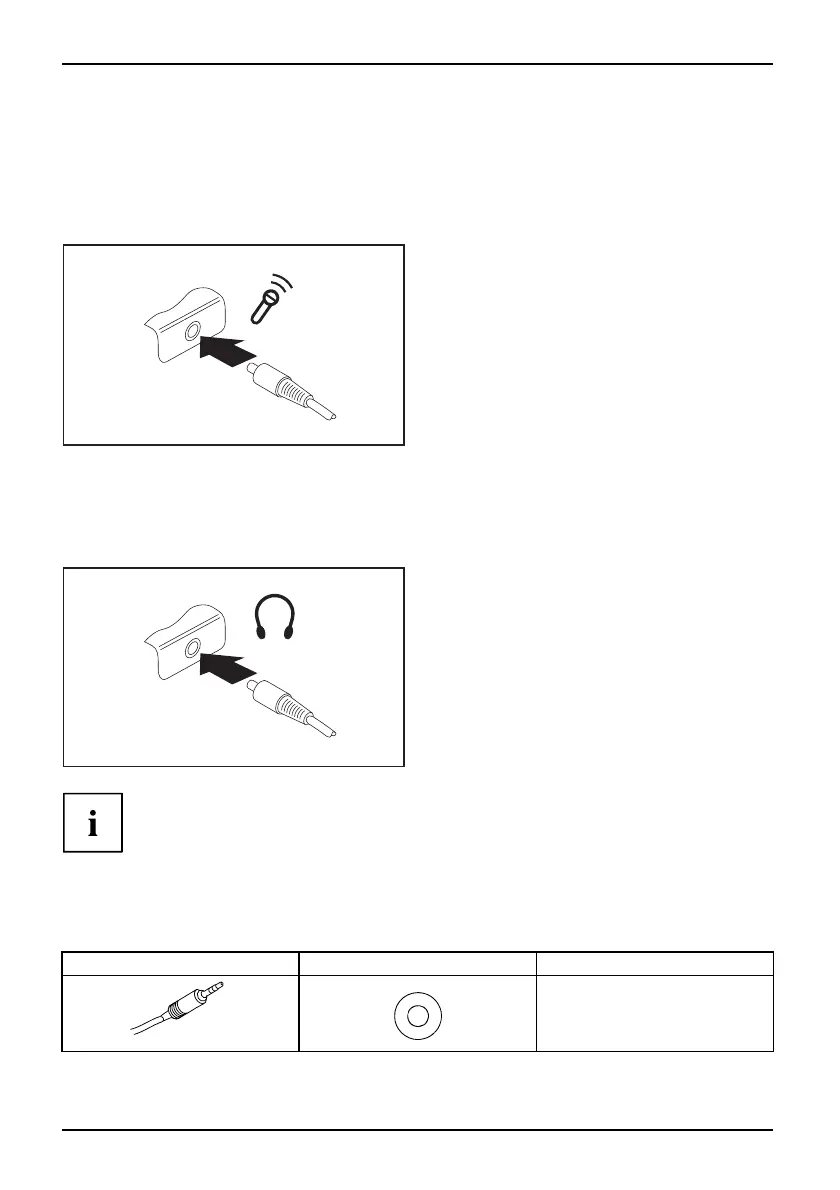

The m icrophone port/Line In allows you to connect an external microphone, a MiniDisc
player, MP3 player, CD player or a tap e deck to your notebook.
► Connect the data cable to the
external device.
► Connect the data cable to the mic
rophone
port/Line In of the notebook.
Headphones/SPDIF port
Connectingaudio
devices
AudioportsConnectingheadp
hones
You can use the Headphones/SPDIF port to connect headphones, external loudspeakers
or an audio device with a d igital optical input to your notebook.
► Connect the data cable to the
external device.
► Connect the data cable to the
headphones/SPDIF port of the notebook.
When you connect headphones or external speakers, the built-in speakers are disabled.
If you purchase a cable from a retailer, please note the following information:
The headphones / SPDIF port on your notebook is a "3.5 mm jack socket".
If you want to connect headphones or a speaker you will need a "3.5 m m jack plug".
If you want t o connect a udio devices with a digital optical input (such as an amplifier),
you will need a fibre optic cable with a "TOSLINK 3.5 mm m iniplug (SPDIF 3.5 jack)".
Connectors Port Pin configuration
optical
60 A26391-K90-Z200-1-7619, edition 1
