Removing and installing components
during servicing

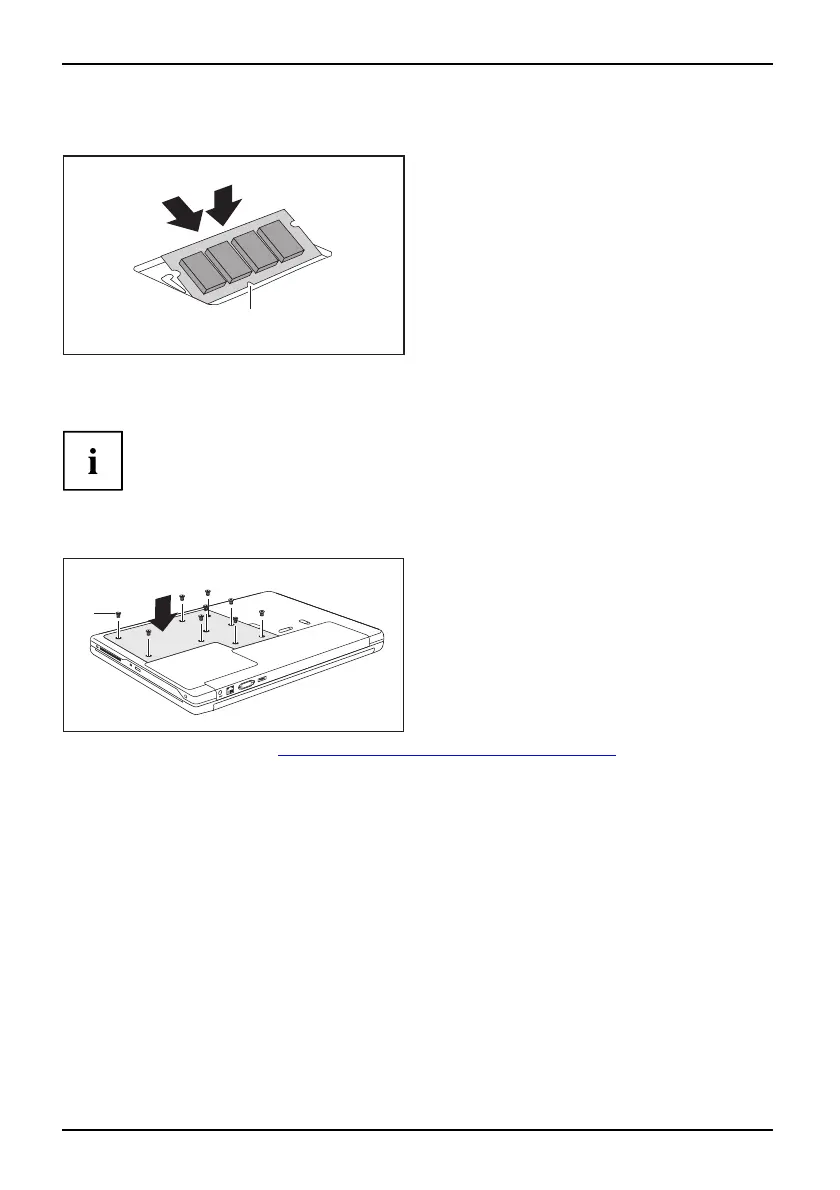

Installing a memory module
2
a
1
► Insert the memory module with the contacts
and the recess (a) f acing the slot (1).
MemoryexpansionMemorymodule
► Carefully push the memory module
downwards until you feel it click
into place (2).
Fastening the memory cover
Depending on the particular variant of notebook you have, it may have
a shared compartment for m emory and hard disk, or these components
may be housed in two separate compartments.
Devices with a joint compartment for m emory and hard disk
1
2
► Attach the cover in the direction
of the arrow (1).
► Secure the cover with the screws (2).
► Reinstall the battery (see "
Removing and installing the battery", Page 30).
► Turn the no tebook
therightwayupandplaceitonaflat surface.
► Reconnect the cables that you disconnected previously.
66 A26391-K90-Z200-1-7619, edition 1
