Garmin G1000 Maintenance Manual

____________________________________________________________________
Page 5-94 G1000 System Maintenance Manual
Rev. A 190-00903-00
5.1.8.11 Serial/Ethernet I/O Page
The Serial/Ethernet I/O Page displays Ethernet communication statistics (Figure 5-16). If
Ethernet communication symptoms are suspected, this page logs errors as they occur and
displays them. A few errors are generally not cause for unit rejection. If there are a substantial,
growing number of errors logged, it indicates an Ethernet communication issue. Use the FMS
knob to check all three Ethernet ports. There should generally be a continually increasing
number in the RCV GOOD FRAMES and XMT GOOD FRAMES to show Ethernet
communications are working. This data on this page is protected and cannot be changed.
If the number of errors are continually increasing, check the Ethernet wiring between GDU’s and
GIA’s for any disconnects. If none are found, troubleshoot which LRU or GDL is causing the
problem (PFD, MFD, GIA 1, or GIA2).

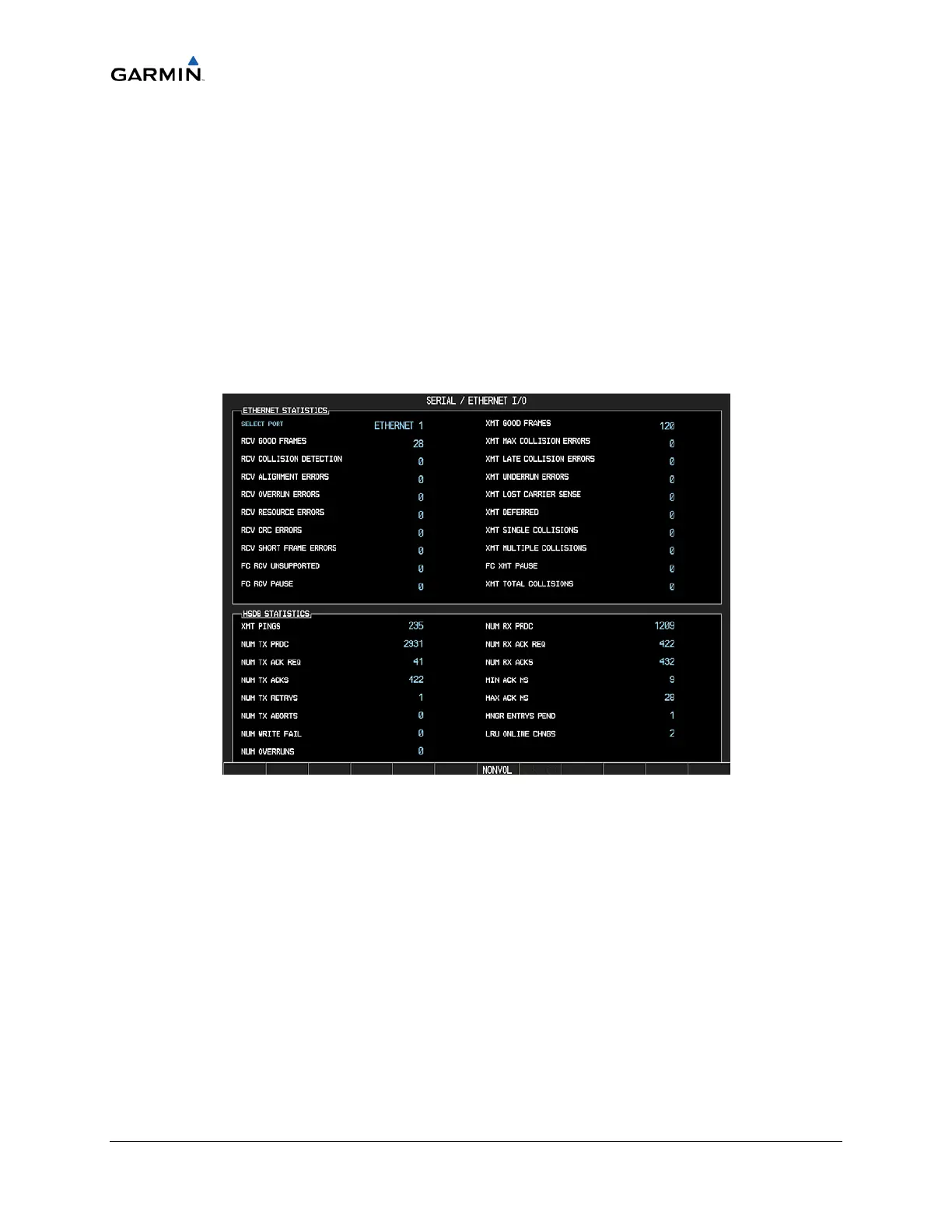

Figure 5-16. Serial/Ethernet I/O Page

Garmin G1000 Specifications

General

Display Type	LCD
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Terrain Awareness	Yes
Autopilot Integration	Yes
Integrated Flight Deck System	Yes
Weather Radar	Optional
Traffic Advisory System (TAS)	Optional
Terrain Awareness and Warning System (TAWS)	Yes
Resolution	1024 x 768 pixels
Weather Data	Yes
Navigation	Yes
AHRS	Yes
Air Data Computer (ADC)	Yes
Interfaces	ARINC 429, RS-232
Certification	TSO certified
Traffic Information	Optional (requires ADS-B or TCAS)
