G1000 System Maintenance Manual Page 5-127
190-00903-00 Rev. A
1234567
89
10 11 12 13 14
15
16 17 18 19 20
21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39
40 41 42 43 44 45 46 47 48 49 50 51
52
53 54 55 56 57 58 59
60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78
P702
P701

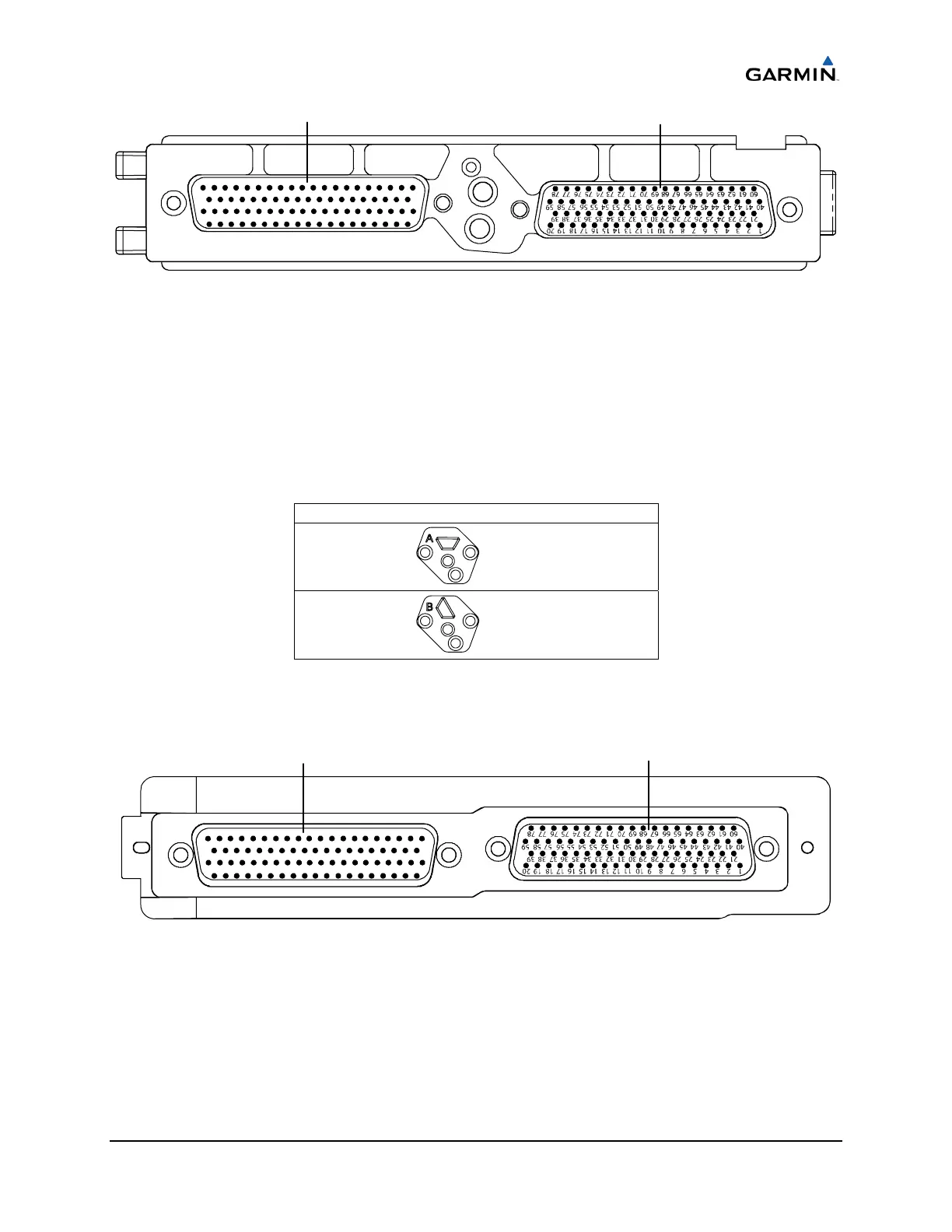

Figure 5-43. GEA 71 Backplate Connectors
NOTE
The GSD 41 Backplate is similar to the GEA 71 Backplate (Figure 5-49).
The only difference is the Keyplate (Figure 5-44). The GSD 41 Backplate
contains the "B" Keyplate, the GEA 71 Backplate contains the "A"
Keyplate. Refer to Figures 5-59 and 5-60, the GSD 41 Installation Manual
(P/N 190-00303-00), and the G1000 System Installation Manual (190-
00303-00) for more information.
LRU Keyplate
GEA 71
GSD 41
Figure 5-44. GSD 41 Keyplate Information
1234567891011121314151617181920
21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39
40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59
60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78
P3471
P3472
Figure 5-45. GMA 1347D Backplate Connectors
