G1000 System Maintenance Manual Page 3-3
190-00903-00 Rev. A
3.2 GMA 1347/1347D AUDIO PANEL

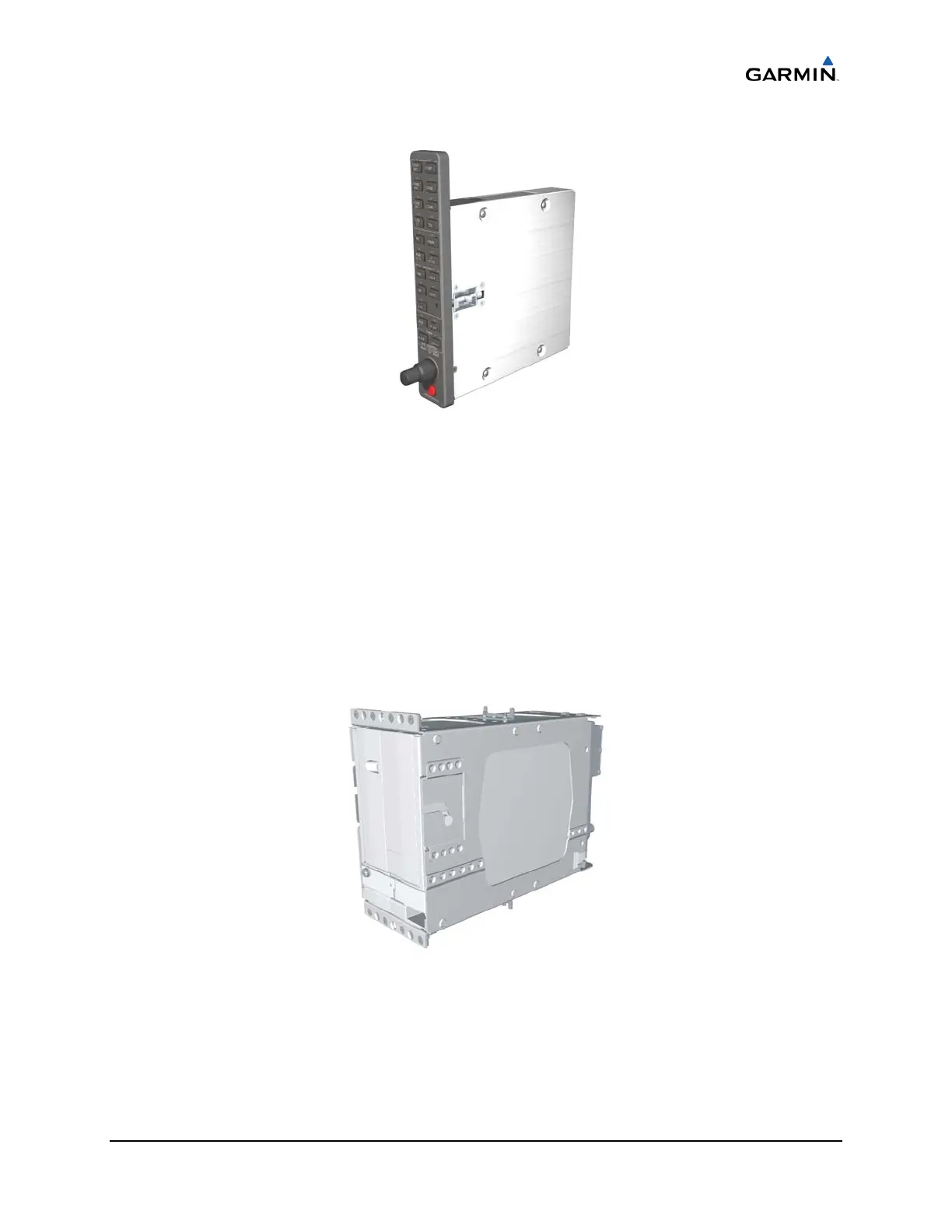

Figure 3-4. GMA 1347D Audio Panel
The GMA 1347D Audio Panel integrates NAV/COM digital audio, intercom system, and marker
beacon controls. Manual display reversion is also controlled by the GMA 1347D. The GMA
1347D is normally installed between the MFD and PFD. The GMA 1347D can also be installed
in dual-audio panel applications (usually paired with a dual-PFD setup). The GMA 1347D
communicates with both GIA LRUs using RS-232 digital interface. Software and configuration
settings are received through a RS-232 digital interface with the GIA. Two Audio Panels are
usually configured for operation.
3.3 GIA 63/63W INTEGRATED AVIONICS UNIT
Figure 3-5. GIA 63W Integrated Avionics Unit

Garmin G1000 Specifications

General

Display Type	LCD
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Terrain Awareness	Yes
Autopilot Integration	Yes
Integrated Flight Deck System	Yes
Weather Radar	Optional
Traffic Advisory System (TAS)	Optional
Terrain Awareness and Warning System (TAWS)	Yes
Resolution	1024 x 768 pixels
Weather Data	Yes
Navigation	Yes
AHRS	Yes
Air Data Computer (ADC)	Yes
Interfaces	ARINC 429, RS-232
Certification	TSO certified
Traffic Information	Optional (requires ADS-B or TCAS)
