Garmin G1000 Maintenance Manual

____________________________________________________________________
Page 3-8 G1000 System Maintenance Manual
Rev. A 190-00903-00
3.12 GTP 59 OAT PROBE

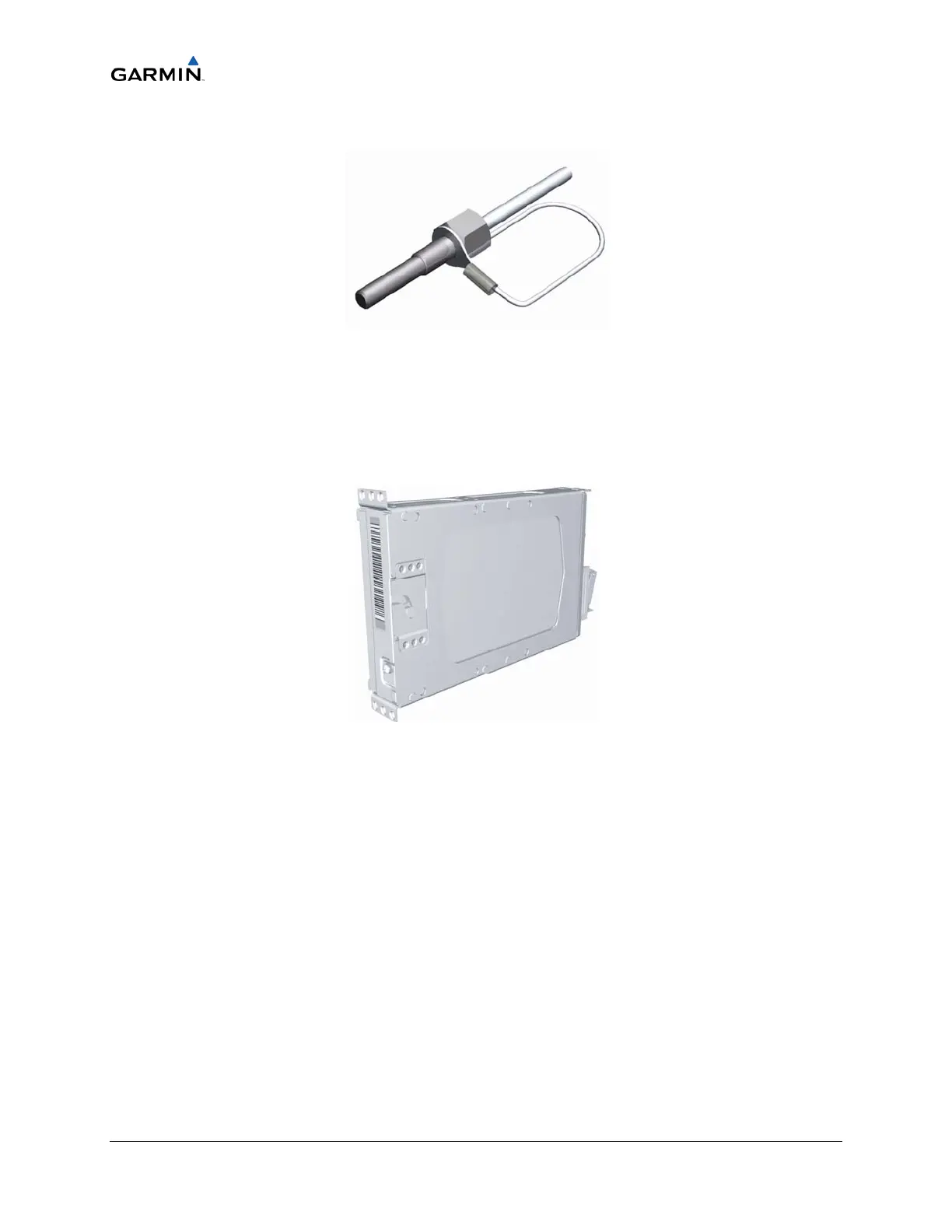

Figure 3-14. GTP 59 OAT Probe
The GTP 59 OAT Probe provides outside air temperature measurement which is used by the
GDC 74A. Communication interface to the G1000 is through the GDC 74A/B.
3.13 GTX 33/33D MODE S TRANSPONDER
Figure 3-15. GTX 33/33D Transponder
The GTX 33 and GTX 33D are solid-state transponders that provide Modes A, C and S
capability. The GTX 33D includes Mode S with diversity. Both transponders can be controlled
from either PFD, and only one transponder can be active at a time. Each transponder
communicates with the on-side GIA 63W through an RS-232 digital interface.

Garmin G1000 Specifications

General

Display Type	LCD
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Terrain Awareness	Yes
Autopilot Integration	Yes
Integrated Flight Deck System	Yes
Weather Radar	Optional
Traffic Advisory System (TAS)	Optional
Terrain Awareness and Warning System (TAWS)	Yes
Resolution	1024 x 768 pixels
Weather Data	Yes
Navigation	Yes
AHRS	Yes
Air Data Computer (ADC)	Yes
Interfaces	ARINC 429, RS-232
Certification	TSO certified
Traffic Information	Optional (requires ADS-B or TCAS)
