Garmin G1000 Maintenance Manual

____________________________________________________________________
G1000 System Maintenance Manual Page 7-5
190-00903-00 Rev. A
7.1.3.1 GIA Testing
If unit is removed or replaced the following tests are recommended:
GPS Signal Acquisition Test

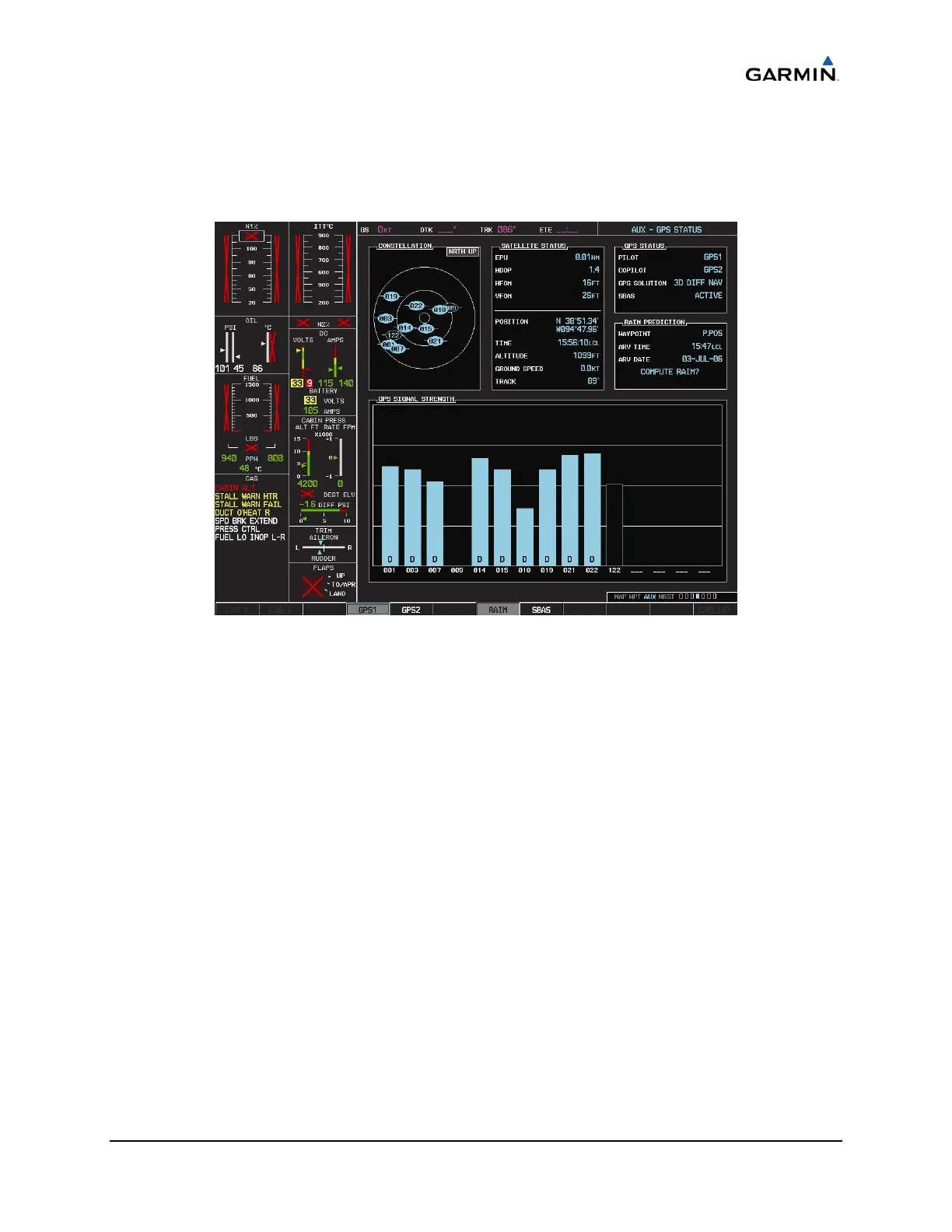

Figure 7-1. AUX-GPS Status Page (Example)
The GIA 63W units normally acquire a 3D GPS navigation solution within 5-10 minutes of
startup, provided the aircraft is outside (or indoors with a GPS repeater).
NOTE
In some rare instances when the GPS receiver is taking longer than normal to
acquire, a date and/or time change may be required.
Select the satellite status page on the MFD (4
th
page in AUX group). Two softkeys on the
bottom of the display allow the user to toggle between GPS 1 and GPS 2. Verify that both
receivers show 3D Navigation on the MFD.

Garmin G1000 Specifications

General

Display Type	LCD
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Terrain Awareness	Yes
Autopilot Integration	Yes
Integrated Flight Deck System	Yes
Weather Radar	Optional
Traffic Advisory System (TAS)	Optional
Terrain Awareness and Warning System (TAWS)	Yes
Resolution	1024 x 768 pixels
Weather Data	Yes
Navigation	Yes
AHRS	Yes
Air Data Computer (ADC)	Yes
Interfaces	ARINC 429, RS-232
Certification	TSO certified
Traffic Information	Optional (requires ADS-B or TCAS)
