Garmin G1000 Maintenance Manual

____________________________________________________________________
G1000 System Maintenance Manual Page 5-97
190-00903-00 Rev. A
5.1.8.15 CAN/RS-485 Config Page
This page displays settings for the Controller Area Network (CAN) and RS-485 channels used
by the GIA 63/GIA 63W. All settings are pre-established for a specific installation and are
loaded from the appropriate G1000 Loader Card. The settings should not be changed. The ‘GIA
1’ and ‘GIA 2’ configuration files contain the settings shown on this page.

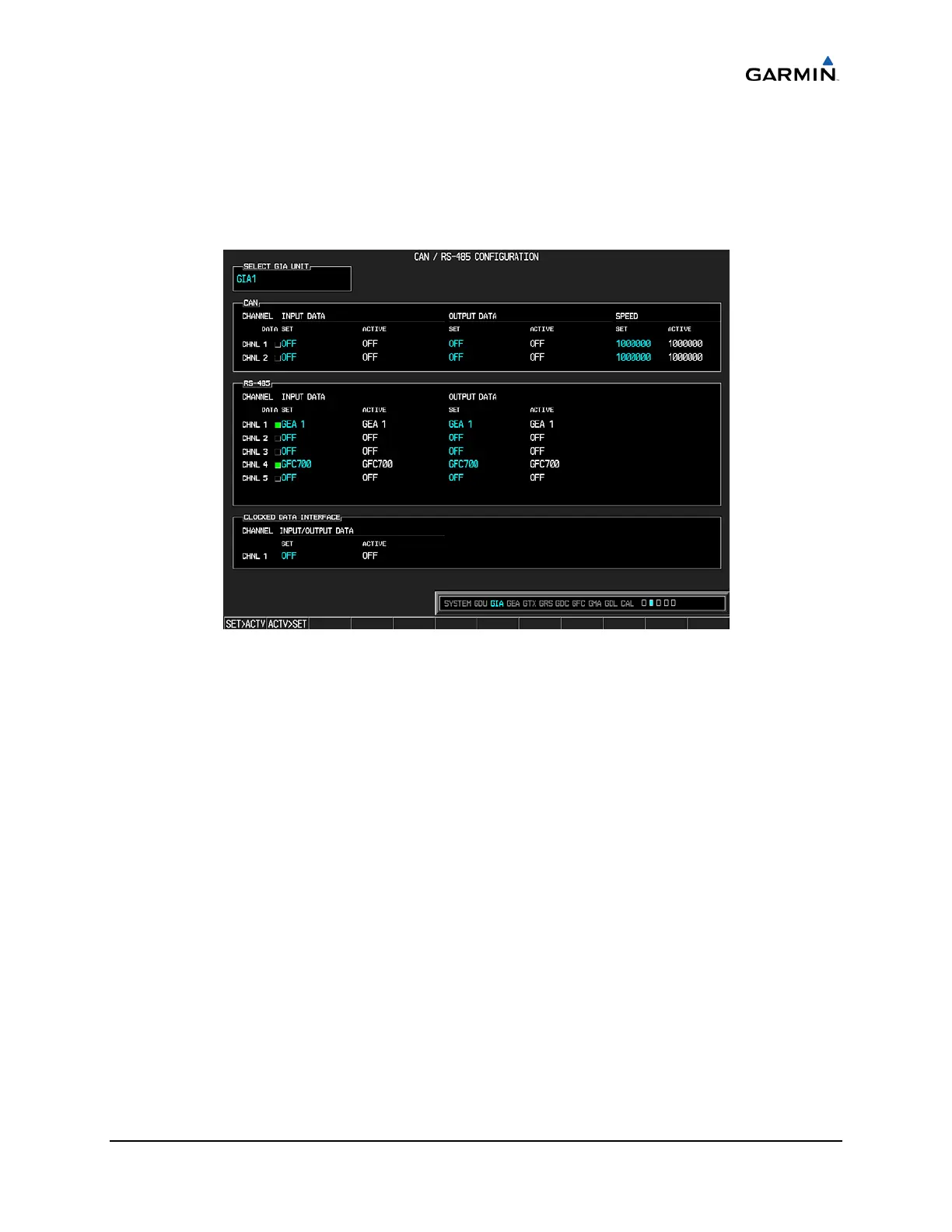

Figure 5-20. CAN/RS-485 Configuration Page
Windows:
a. SELECT GIA UNIT―displays the currently selected GIA 63/GIA 63W.
b. CAN―displays active Controller Area Network configuration settings for currently selected
GIA.
c. RS-485―displays active RS-485 configuration settings for currently selected GIA.
d. CLOCKED DATA INTERFACE―displays active Clocked Data Interface settings, typically
only used when interfacing to an external DME.
Softkeys:
The following softkeys appear on this page:
a. SET>ACTV—see configuration section for description.
b. ACTV>SET―see configuration section for description.

Garmin G1000 Specifications

General

Display Type	LCD
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Terrain Awareness	Yes
Autopilot Integration	Yes
Integrated Flight Deck System	Yes
Weather Radar	Optional
Traffic Advisory System (TAS)	Optional
Terrain Awareness and Warning System (TAWS)	Yes
Resolution	1024 x 768 pixels
Weather Data	Yes
Navigation	Yes
AHRS	Yes
Air Data Computer (ADC)	Yes
Interfaces	ARINC 429, RS-232
Certification	TSO certified
Traffic Information	Optional (requires ADS-B or TCAS)
