Garmin G1000 Maintenance Manual

____________________________________________________________________
G1000 System Maintenance Manual Page 5-129
190-00903-00 Rev. A

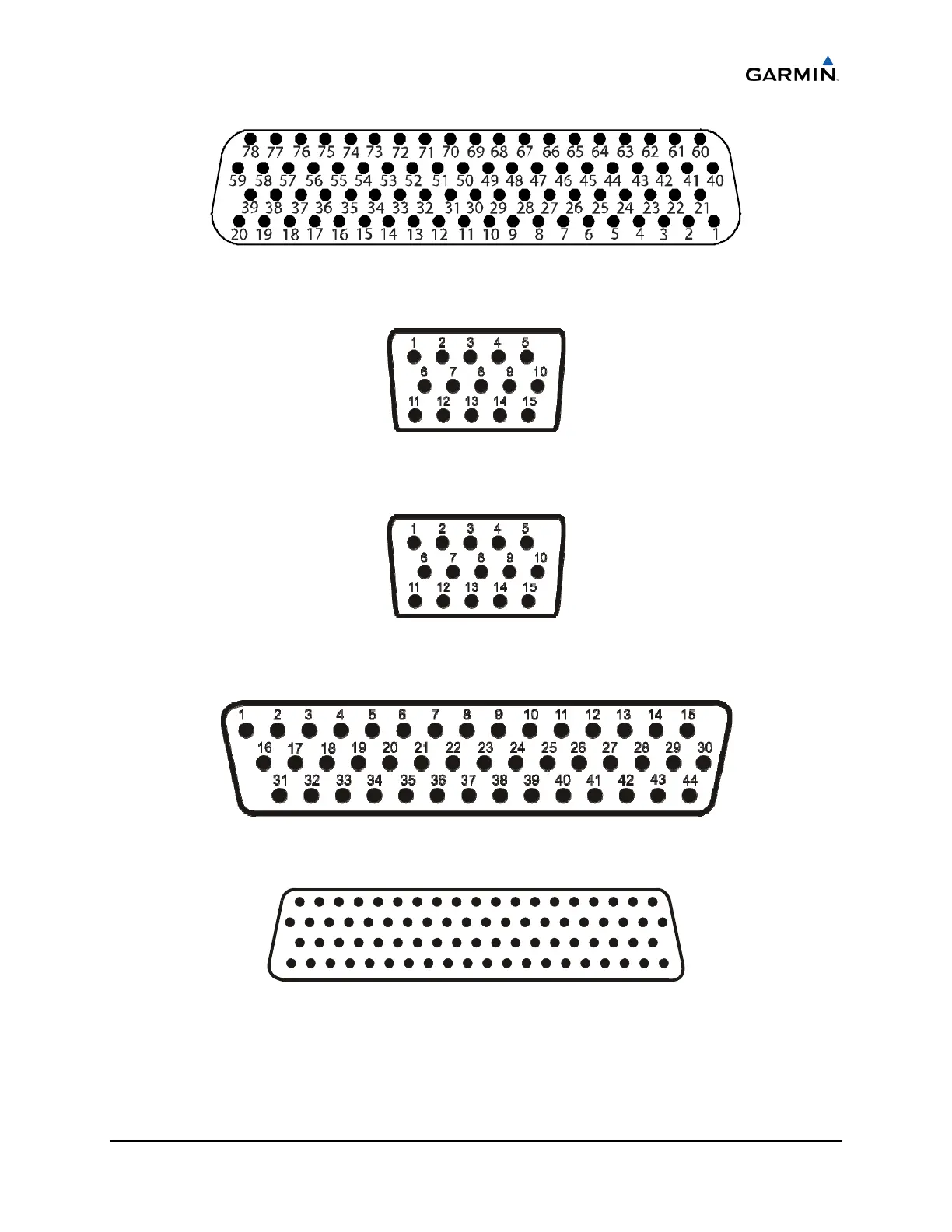

Figure 5-50. GDL 69A Backplate Connector (P691)
Figure 5-51. GCU 475 Backplate Connector (P4751)
Figure 5-52. GMC 710 or GMC 715 Backplate Connector (P7101)
Figure 5-53. GWX 68 Backplate Connector (P400)
1 2 3 4 5 6 7 8 9 10 11121314151617181920
21 22 23 24 25 26 27
28 29
30 31 32 33 34 35 36 37 38 39
40
41 42
43 44 45 46 47 48 49 50 51 52 53 54 55 56
57
58 59
60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78
Figure 5-54. GSD 41 Backplate Connector (P411)

Garmin G1000 Specifications

General

Display Type	LCD
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Terrain Awareness	Yes
Autopilot Integration	Yes
Integrated Flight Deck System	Yes
Weather Radar	Optional
Traffic Advisory System (TAS)	Optional
Terrain Awareness and Warning System (TAWS)	Yes
Resolution	1024 x 768 pixels
Weather Data	Yes
Navigation	Yes
AHRS	Yes
Air Data Computer (ADC)	Yes
Interfaces	ARINC 429, RS-232
Certification	TSO certified
Traffic Information	Optional (requires ADS-B or TCAS)
