G1000 System Maintenance Manual Page 3-7
190-00903-00 Rev. A
3.10 GSA 80/ 81 AFCS SERVOS/GSM 85(A) SERVO GEARBOX

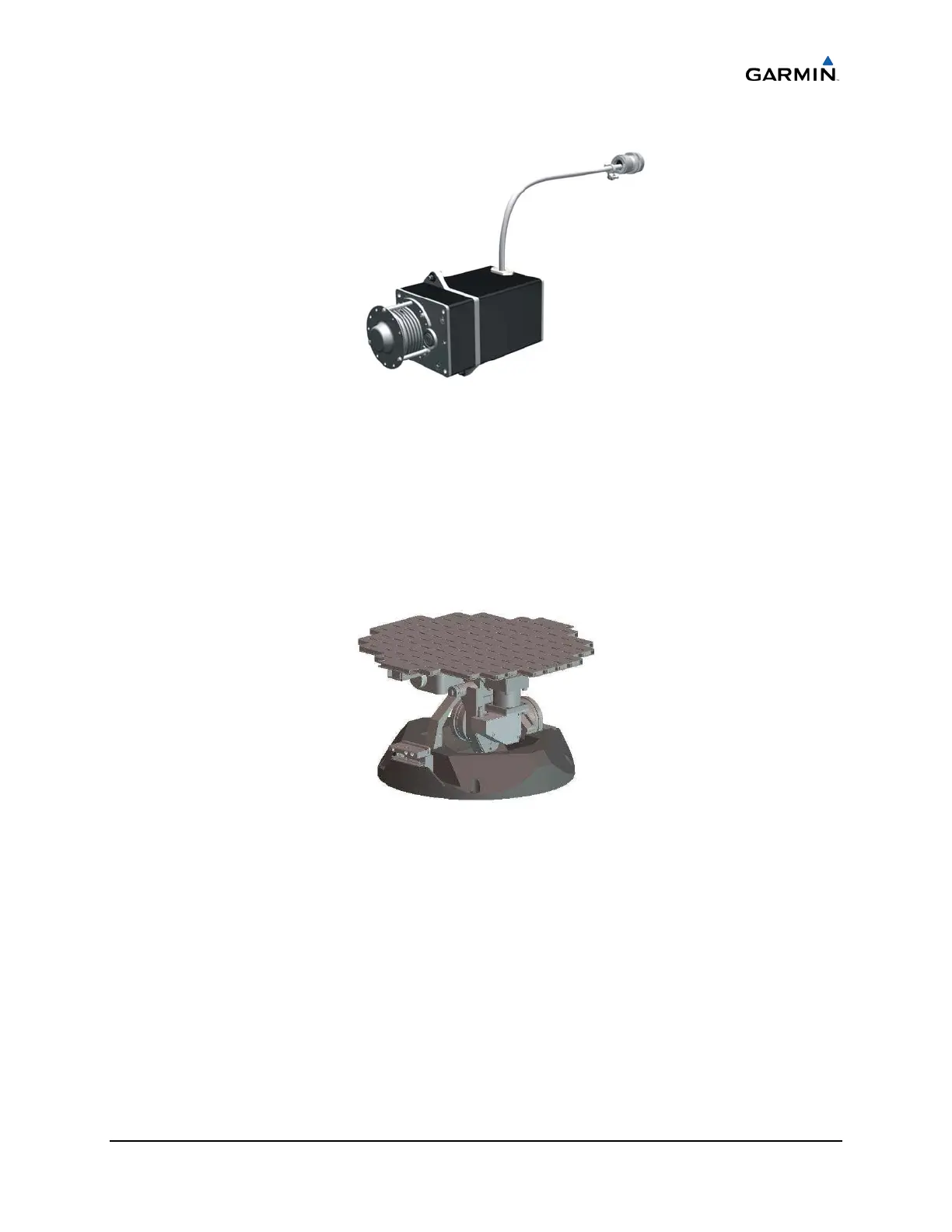

Figure 3-12. GSA 80 Servo
The GSA 80/81 servos are used for the automatic control of pitch, roll, and yaw. These units
interface with each GIA 63W. The GSM 85(A) servo gearbox is responsible for transferring the
output torque of the GSA 80 servo actuator to the mechanical flight-control surface linkage.
3.11 GWX 68 WEATHER RADAR
Figure 3-13. GWX 68 Weather Radar
The GWX 68 provides airborne weather and ground mapped radar data to the MFD through the
GDL 69A and GSD via an HSDB connection.

Garmin G1000 Specifications

General

Display Type	LCD
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Terrain Awareness	Yes
Autopilot Integration	Yes
Integrated Flight Deck System	Yes
Weather Radar	Optional
Traffic Advisory System (TAS)	Optional
Terrain Awareness and Warning System (TAWS)	Yes
Resolution	1024 x 768 pixels
Weather Data	Yes
Navigation	Yes
AHRS	Yes
Air Data Computer (ADC)	Yes
Interfaces	ARINC 429, RS-232
Certification	TSO certified
Traffic Information	Optional (requires ADS-B or TCAS)
