____________________________________________________________________
G1000 System Maintenance Manual Page 4-9
190-00903-00 Rev. A
ACTV>SET (Active to Set)—causes the current settings of the LRU to be copied to the master
configuration module as SET items.
4.6 CONFIGURATION STATUS
Whenever configuration settings are changed the technician receives on-screen prompts and/or
confirmation similar to those shown in Figure 4-7.

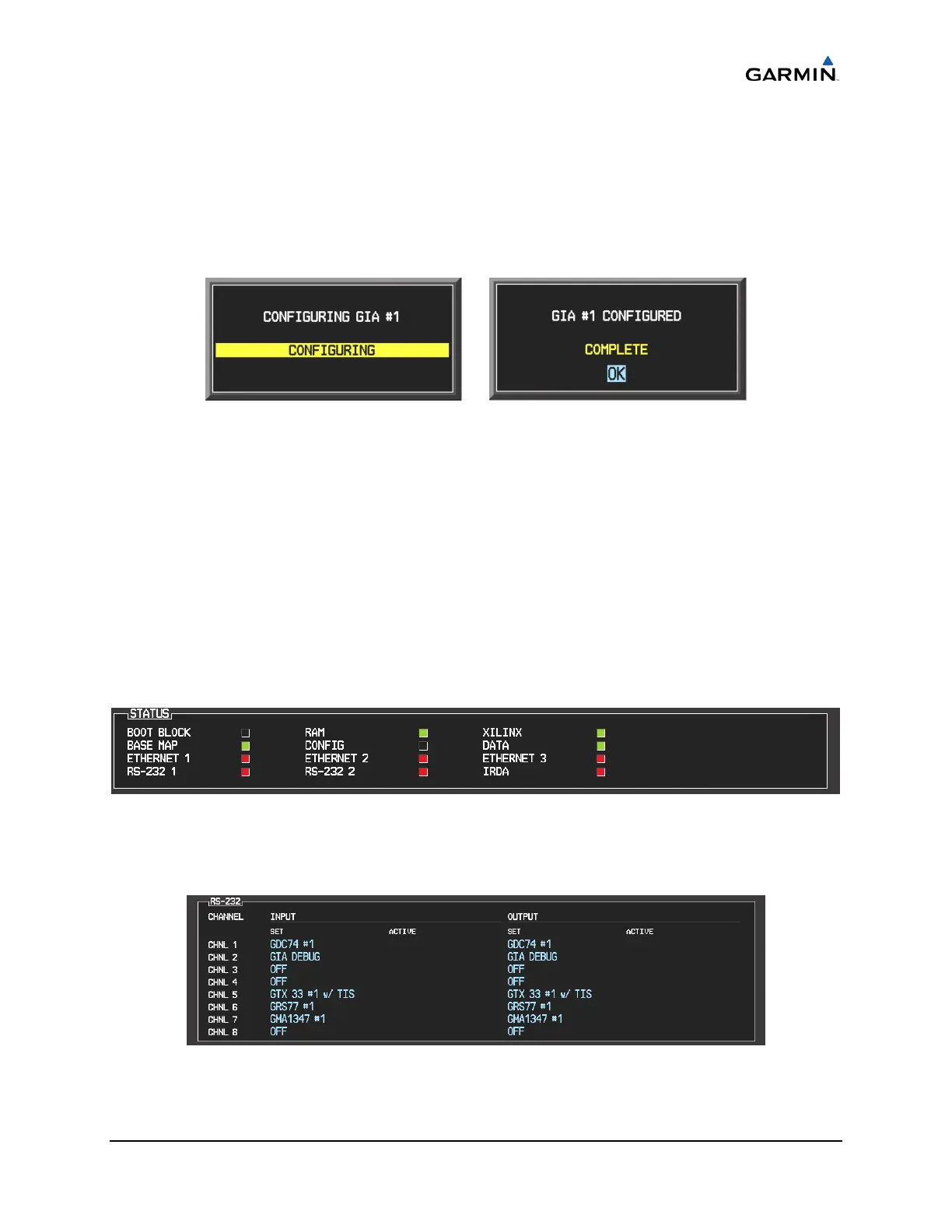

Figure 4-7. Configuration Status Prompts
4.7 DATA TRANSMISSION INDICATORS
Several configuration pages use an indicator light system to show discrete (ON/OFF) data and/or
hardware component status. Unless otherwise noted, the following applies to all configuration
page status indicators:
• Green―expected data is successfully received and is ON. A green light can also indicate
that the parameter/component is working correctly.
• Red―expected data is not received. A red light can also indicate that a
parameter/component is invalid.
• Black―expected data is successfully received and is OFF, or no data is expected. A black
light can also indicate that the parameter/component is not responding.
Figure 4-8. Data Transmission Indicators
A blank ACTIVE column displays the loss of communication between the display and a specific
LRU (Figure 4-9).
Figure 4-9. Loss of Communication
