Field replaceable units: Replace display assembly parts
2000966-542D Dash 3000/4000/5000 7-27

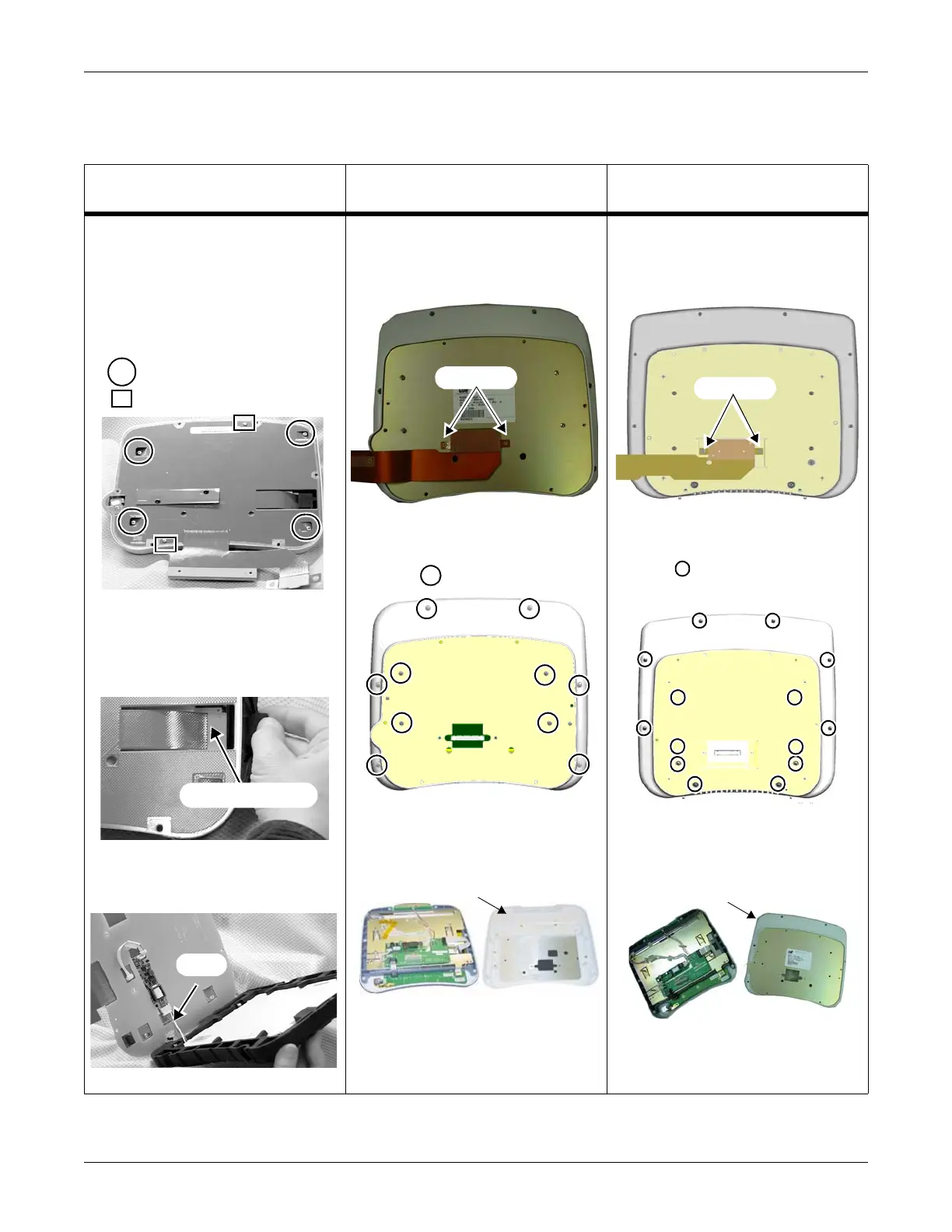

Open display assembly
Follow the steps below for the patient monitor you are servicing.
Dash 3000 patient monitor
with display shield flex circuit
Dash 4000 patient monitor Dash 5000 patient monitor
Separate the patient monitor bezel from
the LCD display.
1. Remove and retain the four screws
holding the display shield to the LCD
display and two screws holding the
display shield to the patient monitor
bezel.
2. Remove the display assembly from the
patient monitor bezel.
3. Pull the LCD display isolator out of the
way. Disconnect the LCD display cable.
501A
4. Disconnect the cable from the backlight
inverter PCB.
502A
1. Remove and retain the two screws from
the display flex cable. Pull up on the
latch tabs to remove the flex cable from
the display.
2. Remove and retain the 10 screws as
shown.
3. Separate the transition bezel from the
front bezel. It is not necessary to remove
the metal backplate.
4. Set aside the transition bezel.
NOTE
The display that is pictured above is a
Sharp.
1. Remove and retain the two screws from
the display flex cable. Pull up on the
latch tabs to remove the flex cable from
the display.
2. Remove and retain the 14 screws as
shown.
3. Separate the transition bezel from the
front bezel. It is not necessary to remove
the metal backplate.
4. Set aside the transition bezel.
2 smaller screws
4 larger screws
500A
