Functional and electrical safety checks: Functional Checkout procedures
2000966-542D Dash 3000/4000/5000 8-41

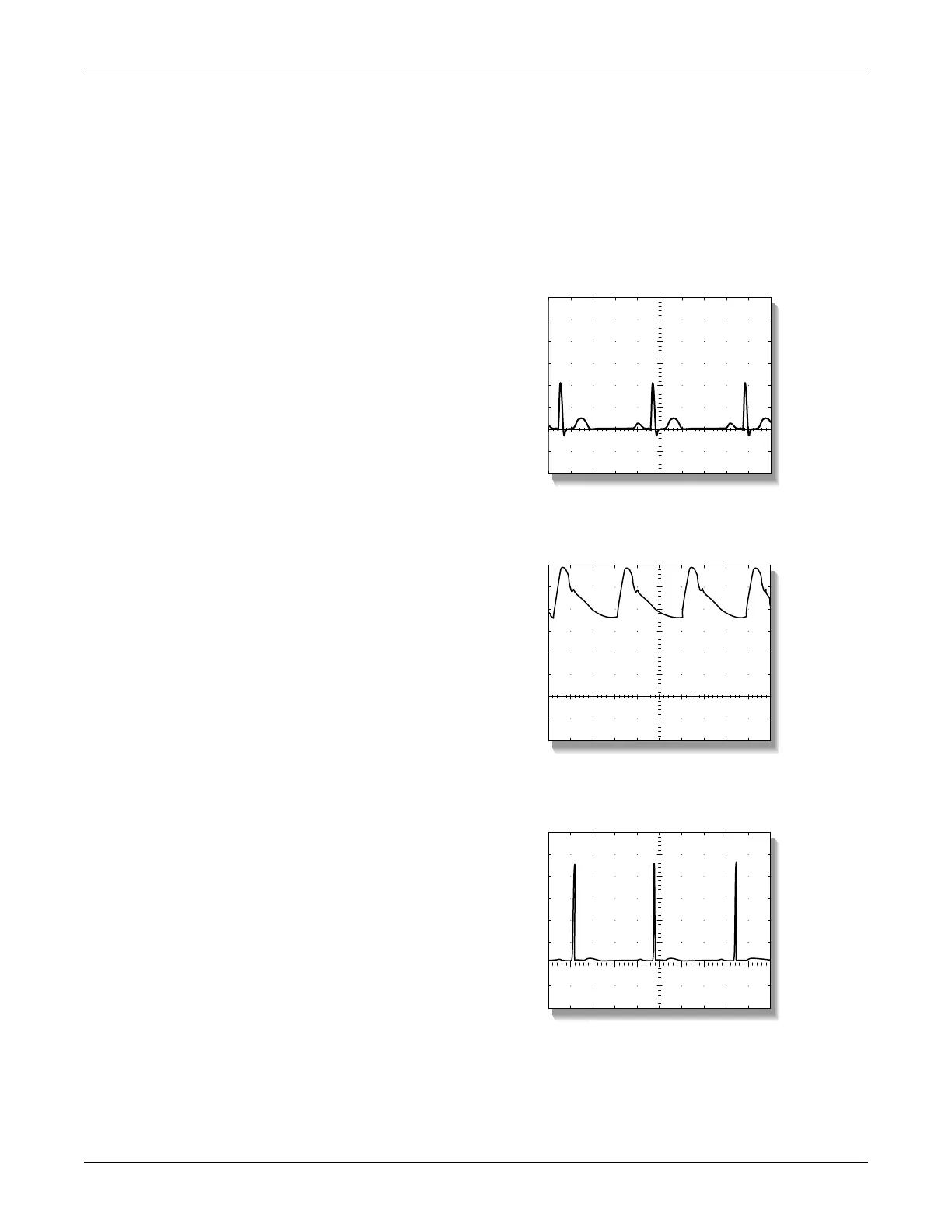

10%. They should closely resemble the waveforms in the figures
below.
NOTE
The Marker Out amplitude and the pulse width are configured in the
Boot Code settings. Refer to Boot Code settings, “Set Defib Sync
Voltage and pulse width” on page 4-18 for more information.
DEFIB Sync connector:
Signal Pin:—7
Ground Pin:—3
Probe Type:—x10
Time/Division:—0.2S
Volts/Division:—0.5V
DEFIB Sync connector: arterial BP
Signal Pin:—6
Ground Pin:—5
Probe Type:—x10
Time/Division:—0.2S
Volts/Division:—0.2V
DEFIB Sync connector: Marker Out (frequency)
Signal Pin:—1
Ground Pin:—4
Probe Type:—x10
Time/Division:—0.2S
Volts/Division:—1V
023A
024A
025A
