Note:

Assertion of the Any Trip DDB signal or the Inhibit LOL DDB signal will prevent LOL tripping.

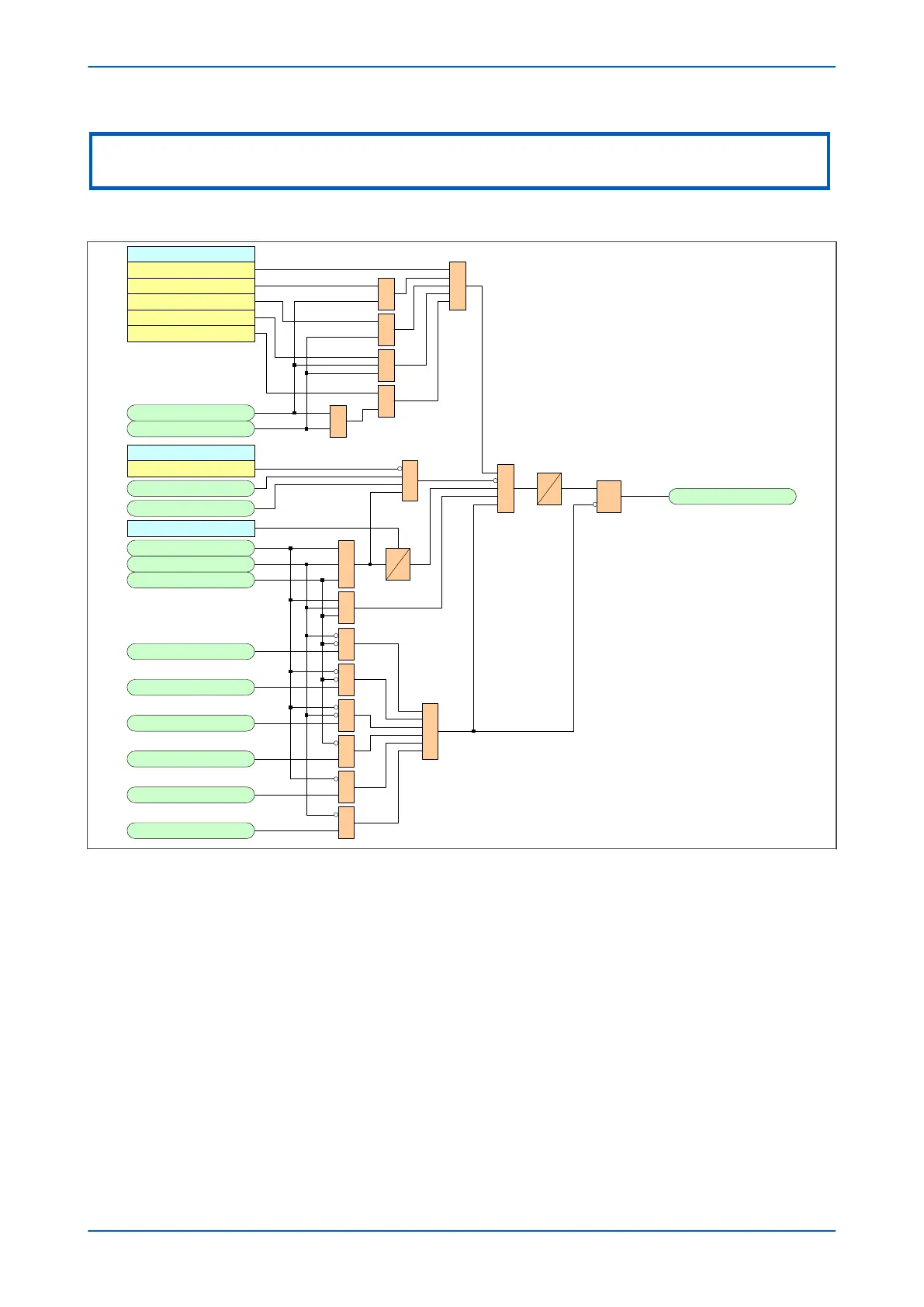

The detailed Loss of Load logic diagram is shown below:

V02741

Inhibit LoL

Loss ofLoad Trip

LOL Scheme

Enabled

En. On Ch1 Fail

En. On Ch2 Fail

En. All Ch Fail

En. Any Ch Fail

Aid 1 Chan Fail

Aid 2 Chan Fail

Any trip

Tripping Mode

3 Pole

I> LoL A

I> LoL B

I> LoL C

Zone2 AN Element

Zone2 BN Element

Zone2 CN Element

Zone2 AB Element

Zone2 BC Element

Zone2 CA Element

LOL Window

18 ms

LOL

317

318

491

522

1365

1366

1367

966

967

968

969

970

971

654

Figure 116: Loss of Load Logic
