D
IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL
4-6 Section 4-2 - General Procedures
PRELIMINARY
4-2-3 Power Shutdown
After pressing the On/Off button on the cockpit, the SYSTEM - EXIT dialog window will be displayed.
.

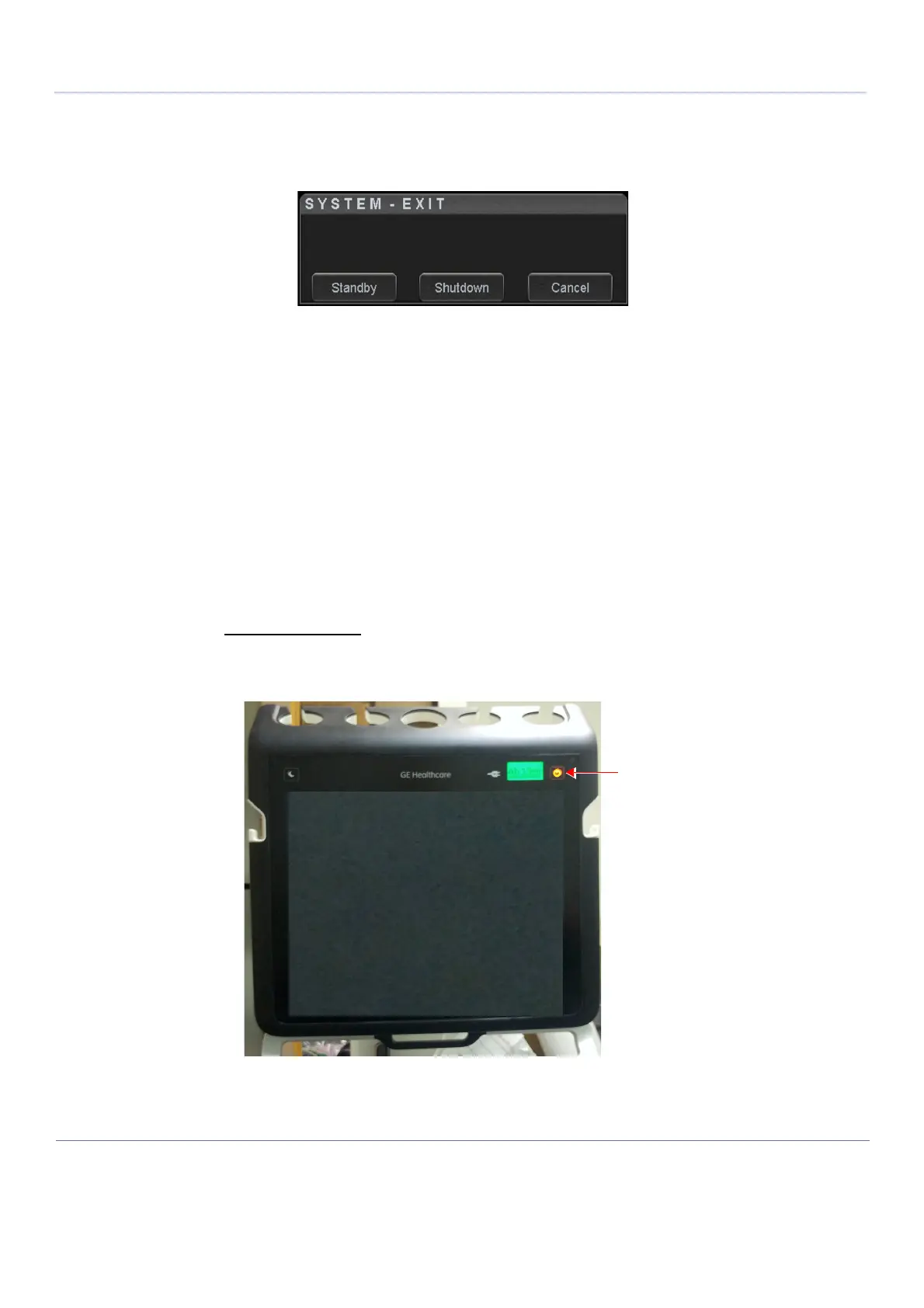

Figure 4-3 Exit Dialog Window
The SYSTEM - EXIT menu, gives you these choices:
• Exit
(Only available when logged in as GE Service with Service Dongle)
Select this button when you want to exit to the Windows Desktop.
NOTE: If you need to restart Venue™ when logged on to the Windows Desktop, ensure that you do a complete
power down (Shut Down). This is required to power up the Front End Processor.
• Shutdown
Use this button to shut down the system. The entire system will shut down.
If the Shutdown button is greyed out or the system cannot be shutdown normally:
• Venue R1 systems
running software version 301.x.x:
Press and hold the ON/OFF button for 8 seconds.
Figure 4-4 On/Off Button on Cockpit (monitor)
To Next Page
