IRECTION 5771498-100, REVISION 5 VENUE™ SERVICE MANUAL
Chapter 5 - Venue™Components and Function (Theory) 5-23
PRELIMINARY
For information on cables connected to the BEP Module, see Figure 8-35
BEP-to-Front End (T-CFE) Interface is via the Data and Control Cable that contains the following:
• PCI-e channels
• Control and Status signals between the BEP and the Front End.
BEP Interface Panel- this panel allows external connections of multiple interfaces by extension cables
that connects the internal ports to the IP panel.
• The BEP Interface Panel is located on the rear side of the Venue™ ultrasound scanner, and
contains the following connectors:
• HDMI port - supports connection of external monitor
• 2 USB 3.0 ports - support for external USB devices such as Bar-code reader etc.
• RJ45 - Ethernet port: supports wired network connection.

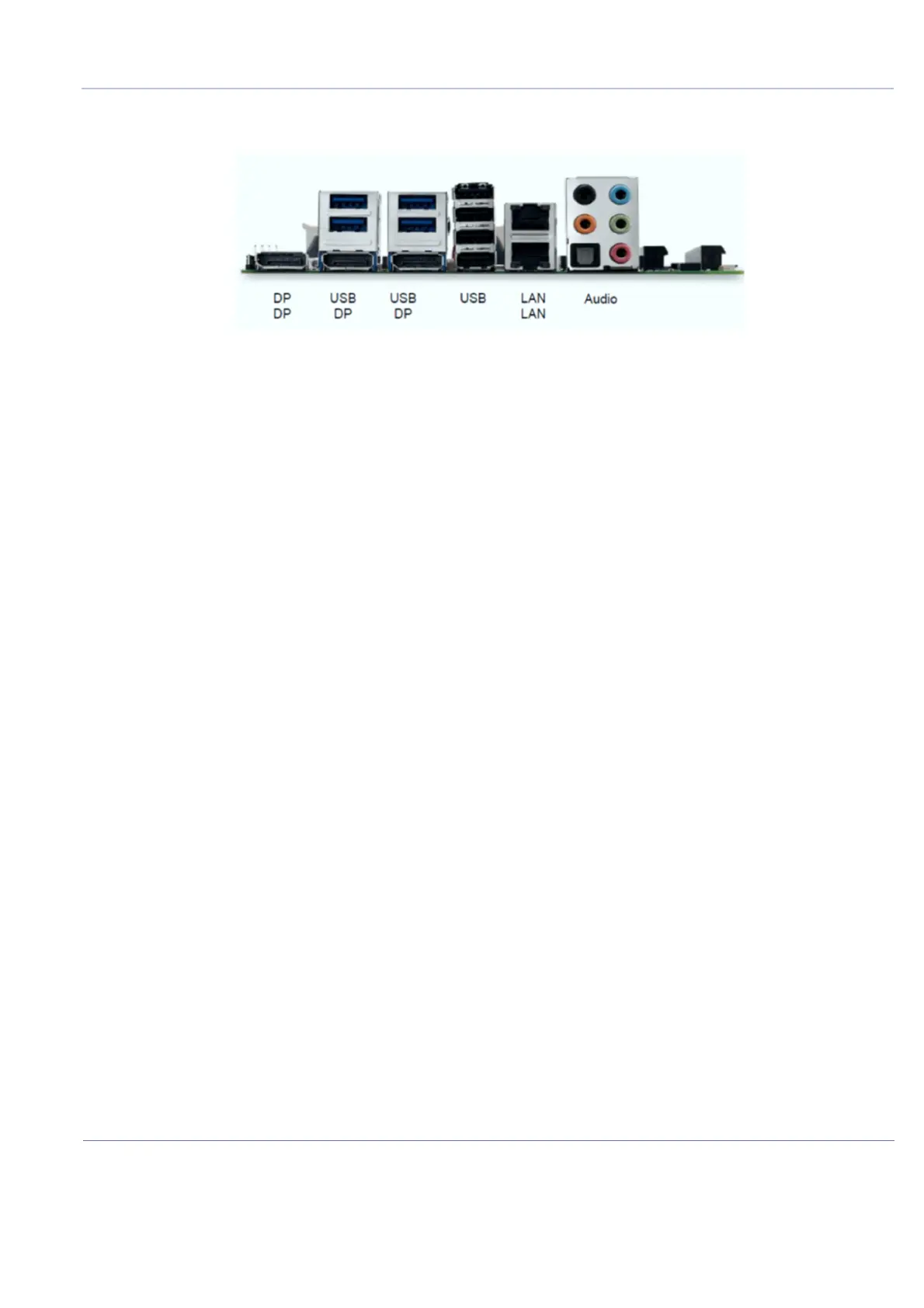

Figure 5-17 BEP Board Interfaces
