GE Venue R1 Service Manual

Chapter 8 - Replacement Procedures 8-37
D
IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL
PRELIMINARY
3.) Remove the cockpit rear cables cover, if exists (see below).
4.) Disconnect the following cables connected to cockpit (monitor):
• BE TO COCKPIT CABLE
• MPB TO COCKPIT CABLE (use flat-head screwdriver)

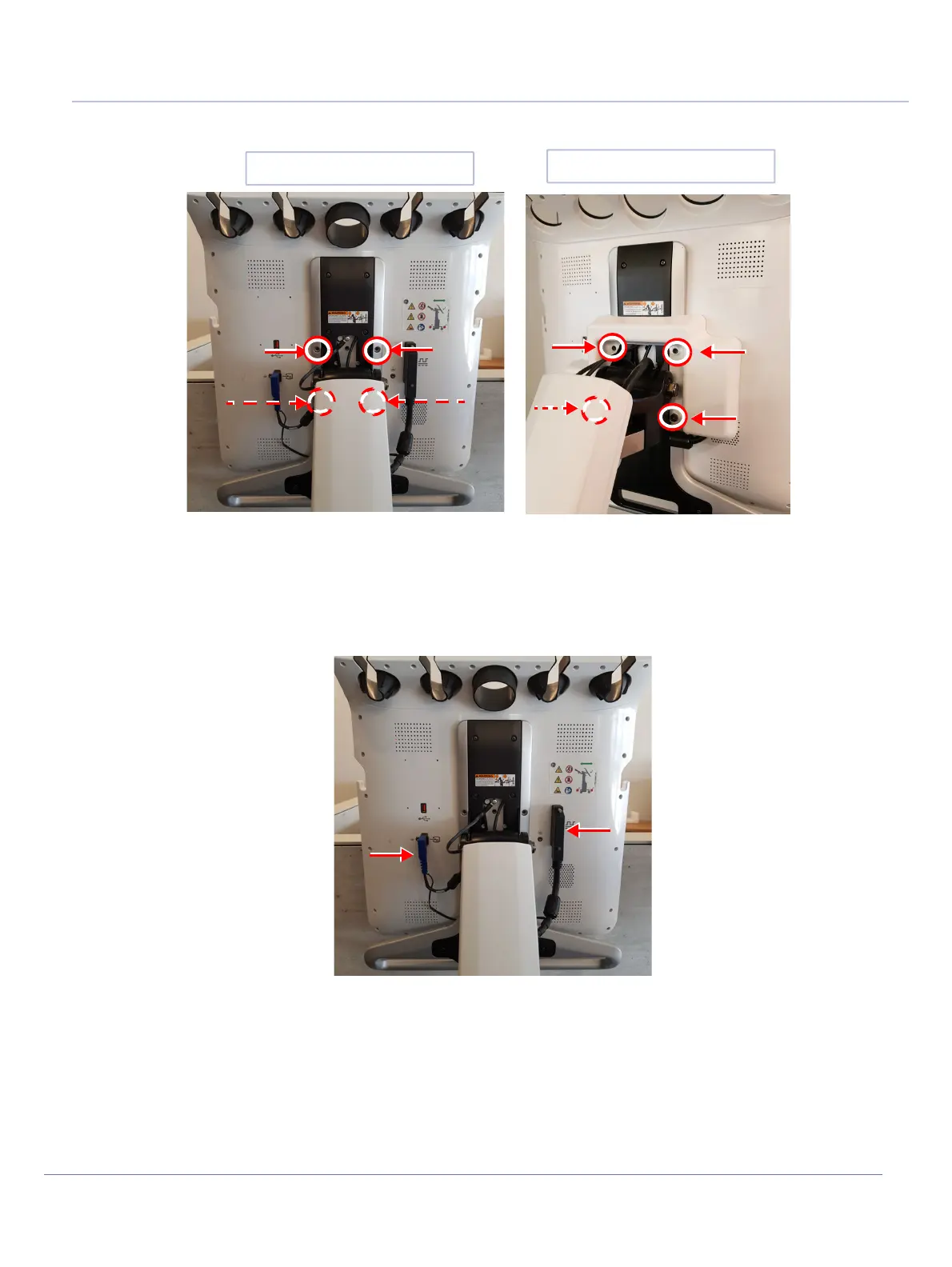

Figure 8-23 Cockpit (Monitor) Securing Screws and Cockpit Rear Cover Removal
Figure 8-24 Cockpit (Monitor) Cables
System without Cable Cover
System with Cable Cover
