Chapter 8 - Replacement Procedures 8-81

IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL

PRELIMINARY

5.) Remove the Guide.

8-6-2-5 MPB Guide L/R Installation Procedure

1.) Attach the MP Guide L/R.

2.) Tighten the two mounting screws to secure the guide to the receptical box.

3.) Install the MPB Module.

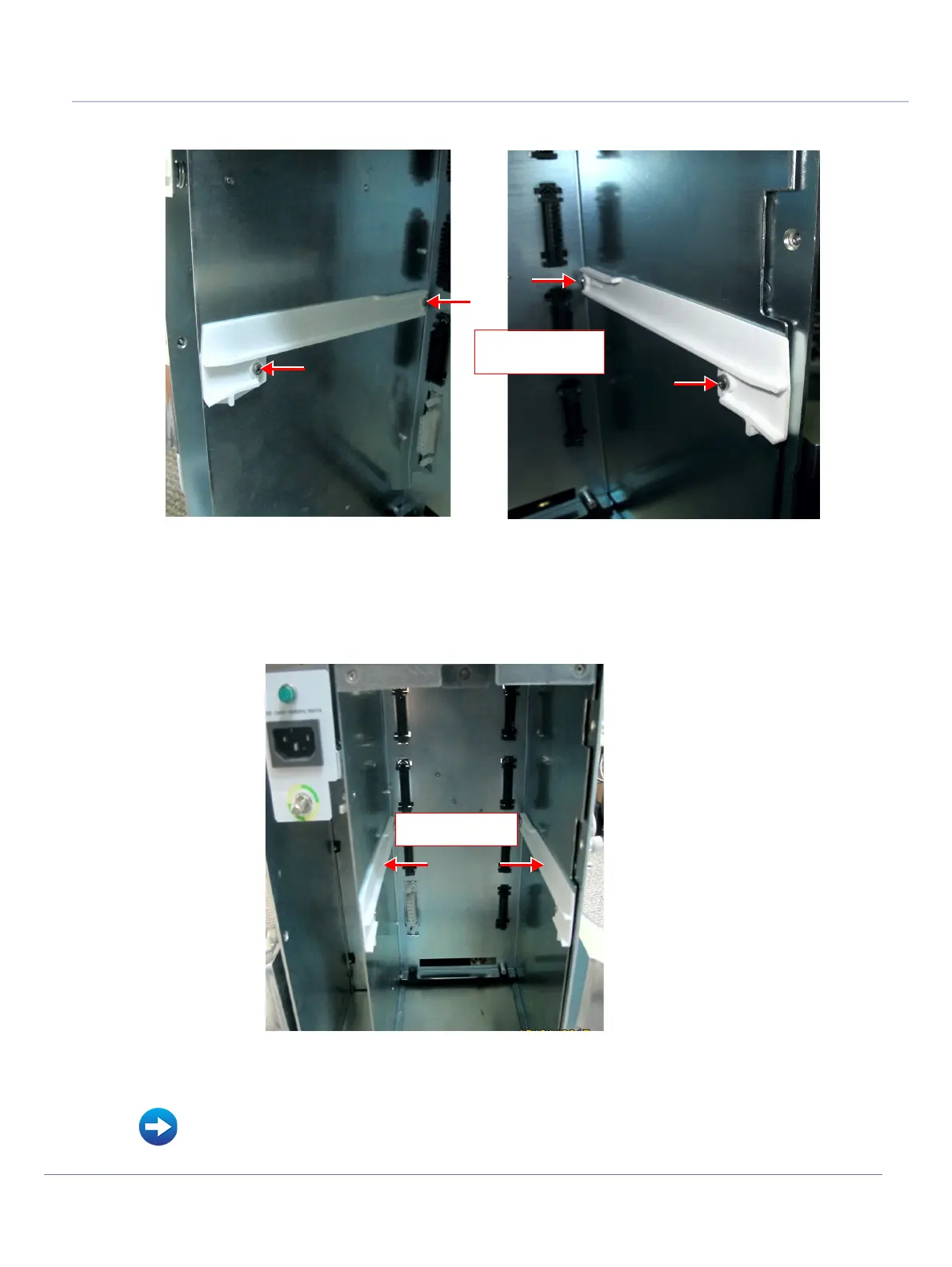

Figure 8-64 MPB Guide L/R- Mounting Screws

Figure 8-65 MPB Guide L/R- Mounting Screws

• MPB Module Installation Procedure

MPB Guide L/R

Mounting Screws

MPB Guide L/R
