Chapter 8 - Replacement Procedures 8-87
D
IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL
PRELIMINARY
5.) Remove the arm base cover.
6.) If the cables are routed through the arm axis, refer to MPB TO Cockpit Cable Removal Procedure
and to BE to Cockpit Cable Removal Procedure
7.) Using Allen key screwdriver, remove the two securing screws of the arm side cover.
8.) Slide the arm side cover upwards and remove it.
9.) Perform steps 4-5 for the other arm side cover.

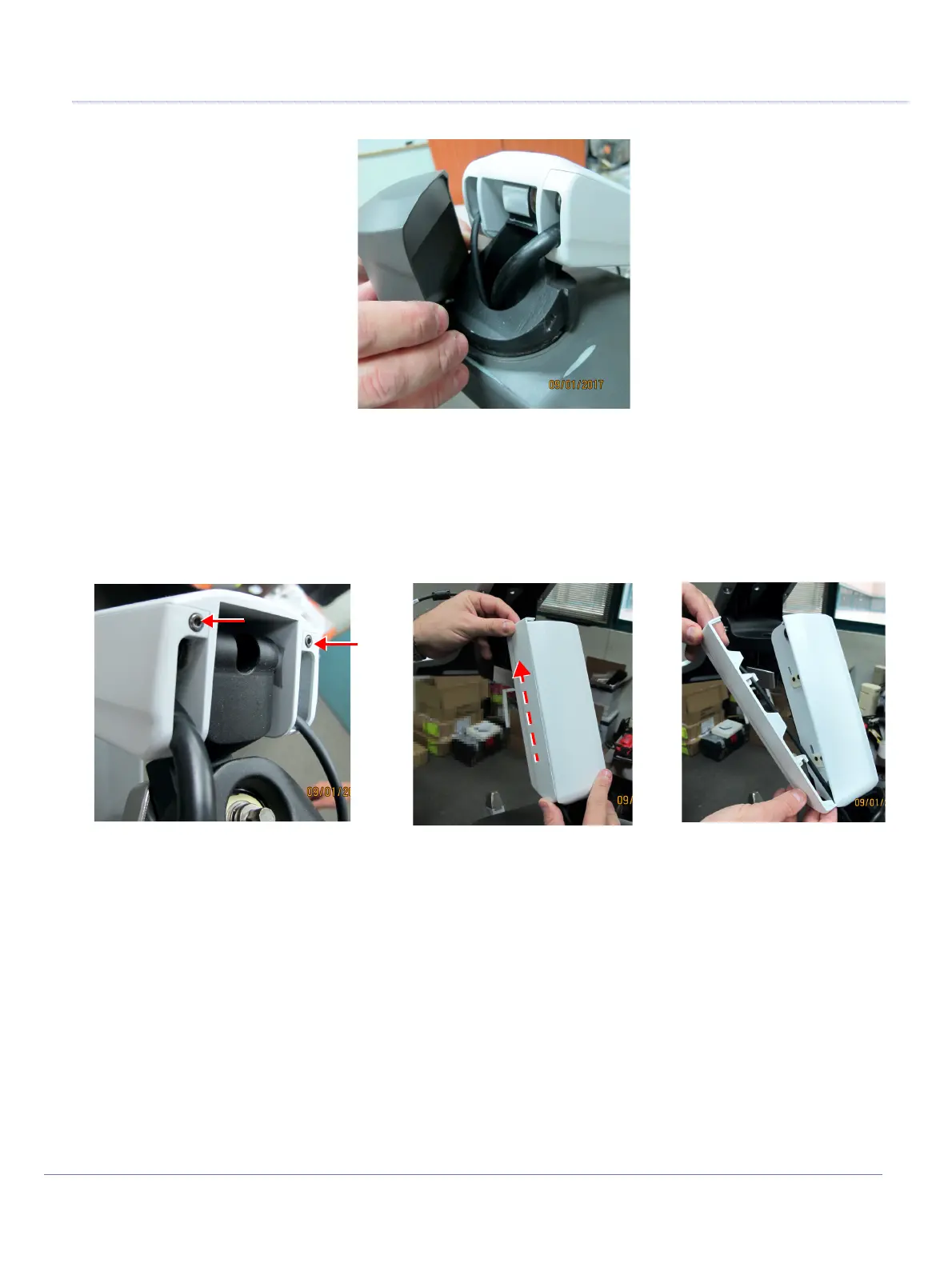

Figure 8-68 Removing Arm Base Cover
Figure 8-69 Removing Arm Side Covers
